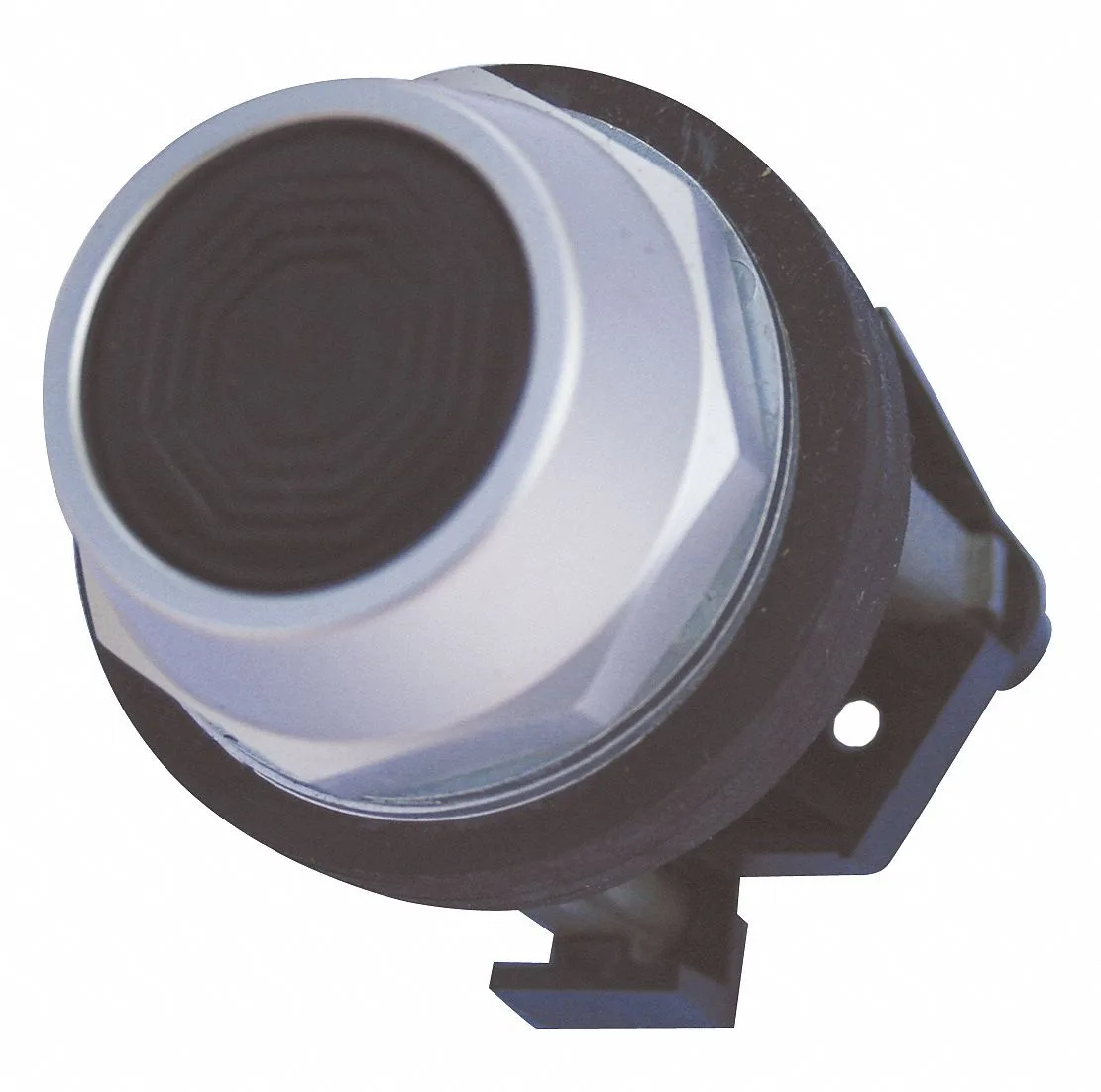

Eaton 30 mm Flush Pushbutton Black 1NO-1NC
A 30 mm flush metal pushbutton with momentary action, 1NO/1NC contacts rated 10A at 600V AC, IP66 and NEMA 4X sealing
- TypeIndustrial Electrical Controls & Automation
- Size30 mm
- 30 mm flush design fits standard panels
- Momentary action with 1NO/1NC contacts for versatile control
- Metal head and anodized aluminium bezel resist wear
- IP66 and NEMA 4X ratings protect against dust and water
- Rated 10 A at 600 V AC for reliable switching
30 mm Flush Pushbutton for Industrial Panels
This Eaton 30 mm flush pushbutton fits standard industrial control panels and machine interfaces. It suits operators who need a momentary metal operator with a black anodised aluminium bezel. The screw-clamp terminals accept standard wiring for quick installation. It is built for indoor and outdoor enclosures rated NEMA 1, 2, 3, 3R, 4, 4X, 12 and 13.
Contact rating 10 A at 600 V AC with IP66 sealing
The single operator carries a 1NO-1NC contact block rated at 10 A at 600 V AC under the A600/P600 designation. IP66 protection keeps dust and powerful water jets from reaching the contacts. The momentary action returns automatically when released. Headroom ends at the stated voltage and current limits; higher loads need a separate contactor or relay.
Replaces worn 30 mm operators
Use this unit to replace a damaged flush button on an Allen-Bradley compatible panel or to add a new momentary function. The jump is worth it when the existing bezel is corroded, the contacts no longer make reliably, or the panel lacks a black metal operator. It does not suit applications needing illuminated heads, maintained action, or legend plates.
Highlights
- 30 mm flush design fits standard panels
- Momentary action with 1NO/1NC contacts for versatile control
- Metal head and anodized aluminium bezel resist wear
- IP66 and NEMA 4X ratings protect against dust and water
- Rated 10 A at 600 V AC for reliable switching
Specifications
| Brand | Eaton |
|---|---|
| Type | Industrial Electrical Controls & Automation |
| Size | 30 mm |
Questions about this item
Will the 30 mm flush pushbutton fit the same panel cut-out as my existing 30 mm operators?
Yes, the 30 mm size matches standard panel cut-outs used by other 30 mm industrial operators, so it aligns with existing hardware.
How can I verify the momentary action is working correctly after wiring?
Press the black flush button; the 1NO contact should close and the 1NC contact should open while held, then return to original state when released.
Does the package include mounting hardware or legend plates, or must I order them separately?
The operator comes with the metal flush head, anodized aluminium bezel and screw-clamp terminals; mounting hardware and legend plates are not included and must be purchased separately.
