Eaton 25481 Switch On/None/On 1/4 in Tab

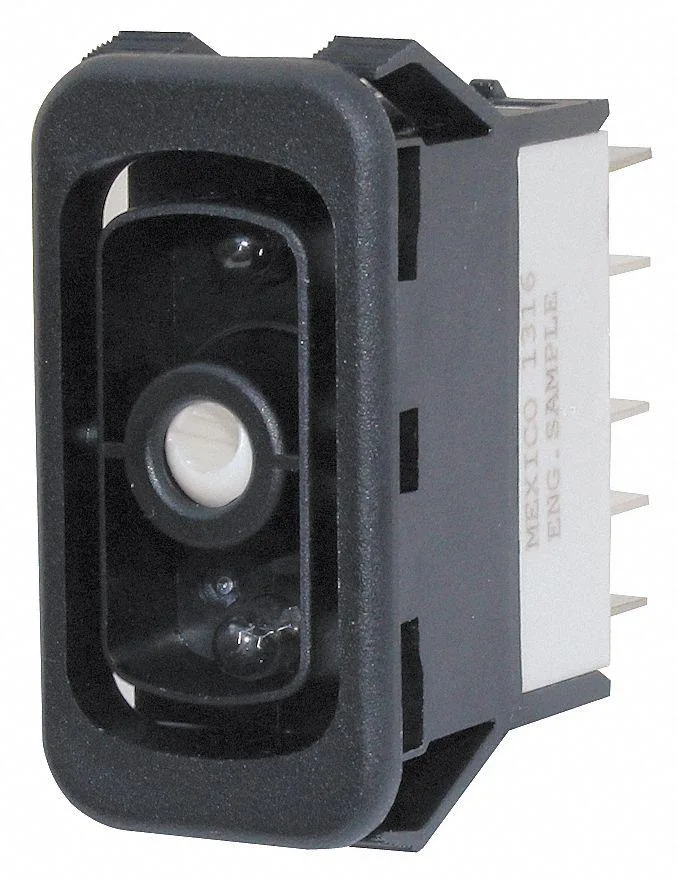

An illuminated DPDT rocker switch with 0.250 in quick-connect tabs, rated 15 A at 125 V AC and 15 A at 28 V DC, IP42 sealed
- DPDT contact form enables two-circuit switching
- 10 A at 250 V AC rating handles mains loads
- 15 A at 28 V DC suits automotive systems
- 14 V incandescent indicator provides instant status
- IP42 rating resists dust and splashing water
Lighted DPDT rocker switch
The Eaton 25481 is a maintained on/on rocker switch with a built-in 14 V DC incandescent indicator light. It provides double-pole double-throw contact action for circuits that must stay in the selected position until toggled again. The switch is UL listed, CSA certified and RoHS compliant with an IP42 rating.
Replaces worn or non-illuminated toggles
Upgrade when an existing panel switch no longer holds position reliably or when operators need visible status confirmation in low light. The illuminated actuator shows circuit state at a glance, reducing the chance of accidental leaving a circuit energised. The jump is worth it when maintenance logs show repeated contact failures or when safety audits call for clear visual indication.
Verify panel cut-out and voltage before ordering
Confirm the mounting hole measures 0.867 in by 1.734 in and that the panel thickness suits the 0.250 in quick-connect tabs. Check that the supply voltage matches the 14 V DC indicator rating and that the load stays within 15 A at 125 V AC, 10 A at 250 V AC or 15 A at 28 V DC. Ensure the IP42 rating meets the environmental exposure of the installation.
Highlights
- DPDT contact form enables two-circuit switching
- 10 A at 250 V AC rating handles mains loads
- 15 A at 28 V DC suits automotive systems
- 14 V incandescent indicator provides instant status
- IP42 rating resists dust and splashing water
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the 0.867 in by 1.734 in mounting hole fit my panel cut-out?
The switch requires a rectangular cut-out of 0.867 in by 1.734 in; verify your panel thickness matches the switch body depth before cutting.
How do I wire the ten 0.250 in quick-connect tabs without shorts?
Use insulated female quick-connect terminals on each tab; the DPDT On/On circuit has ten connections, so follow the wiring diagram to avoid crossing the two poles.
When should I replace the 14 V DC incandescent indicator light?
Replace the switch when the indicator no longer illuminates with power applied; the lamp is not user-serviceable and failure signals end of life.
