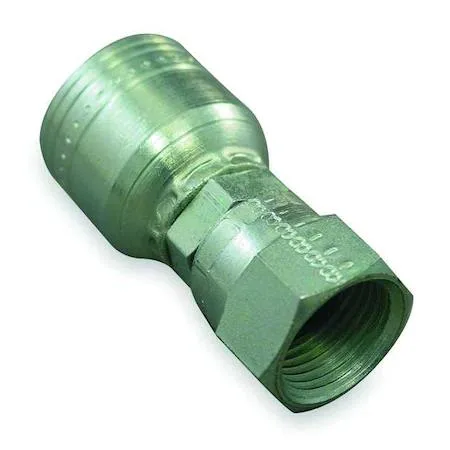

Straight steel hydraulic hose fitting with female JIC swivel end

Eaton

Eaton 1AA6FJ6 vacuum accessory 3/8 in hose 9/16-18 JIC

SKU CH-HAGQ-TK9F7 MPN 1AA6FJ6

Straight hydraulic hose fitting connects 3/8 inch hose to 9/16-18 JIC female swivel with 37-degree thread angle

  • TypePart
  • Weight0.15
  • Straight crimpable fitting for secure hydraulic connections
  • Female JIC 9/16-18 swivel enables quick, leak-free assembly
  • Compatible with 3/8 in hose ID and dash size 6
  • Trivalent chromium zinc finish meets RoHS and SAE 100R1/100R2 standards
  • Compact 2.28 in length fits tight routing spaces

Eaton 3/8 in JIC hydraulic fitting

This Eaton 1AA6FJ6 is a straight hydraulic hose fitting built for 3/8 inch inner-diameter hose. It uses a crimpable connection with a female JIC swivel threaded to 9/16-18 and a 37-degree seat angle. The steel body carries a RoHS trivalent chromium zinc finish and meets SAE 100R1, SAE 100R2 and GH793 standards. Overall length is 2.28 inches and the part weighs 0.15 units.

Suits 3/8 in hose assemblies

This fitting suits maintenance crews and OEM assemblers who need a straight crimp-on end for 3/8 inch hose running at SAE 100R1 or 100R2 pressures. It will not work for anyone needing a different hose bore, a male thread, a non-JIC sealing face, or an elbow or tee shape.

3/8 in hose ID with 9/16-18 JIC thread

The single specification that decides fitment is the combination of 3/8 inch hose inner diameter and 9/16-18 female JIC swivel threads on a straight crimpable body. Verify both the hose bore and the thread standard before ordering.

Highlights

  • Straight crimpable fitting for secure hydraulic connections
  • Female JIC 9/16-18 swivel enables quick, leak-free assembly
  • Compatible with 3/8 in hose ID and dash size 6
  • Trivalent chromium zinc finish meets RoHS and SAE 100R1/100R2 standards
  • Compact 2.28 in length fits tight routing spaces

Specifications

BrandEaton
Model1AA6FJ6
TypePart
Weight0.15

Questions about this item

What hose size must I already have for this 3/8 in. I.D. fitting to connect properly?

You need a hose with a 3/8 in. inside diameter and dash size 6 so the crimpable straight fitting seats and seals correctly.

Will this 9/16-18 JIC thread mate with my existing SAE 100R1 or SAE 100R2 hose assemblies?

Yes, the female JIC swivel thread matches SAE 100R1, SAE 100R2 and GH793 standards, so it threads onto compatible male JIC ends you may already use.

How can I confirm the 37-degree flare angle is sealing after I crimp the fitting?

Pressurise the system and check for leaks at the swivel nut; a proper 37-degree metal-to-metal seal shows no weeping, and the trivalent chromium zinc finish resists corrosion during the test.
