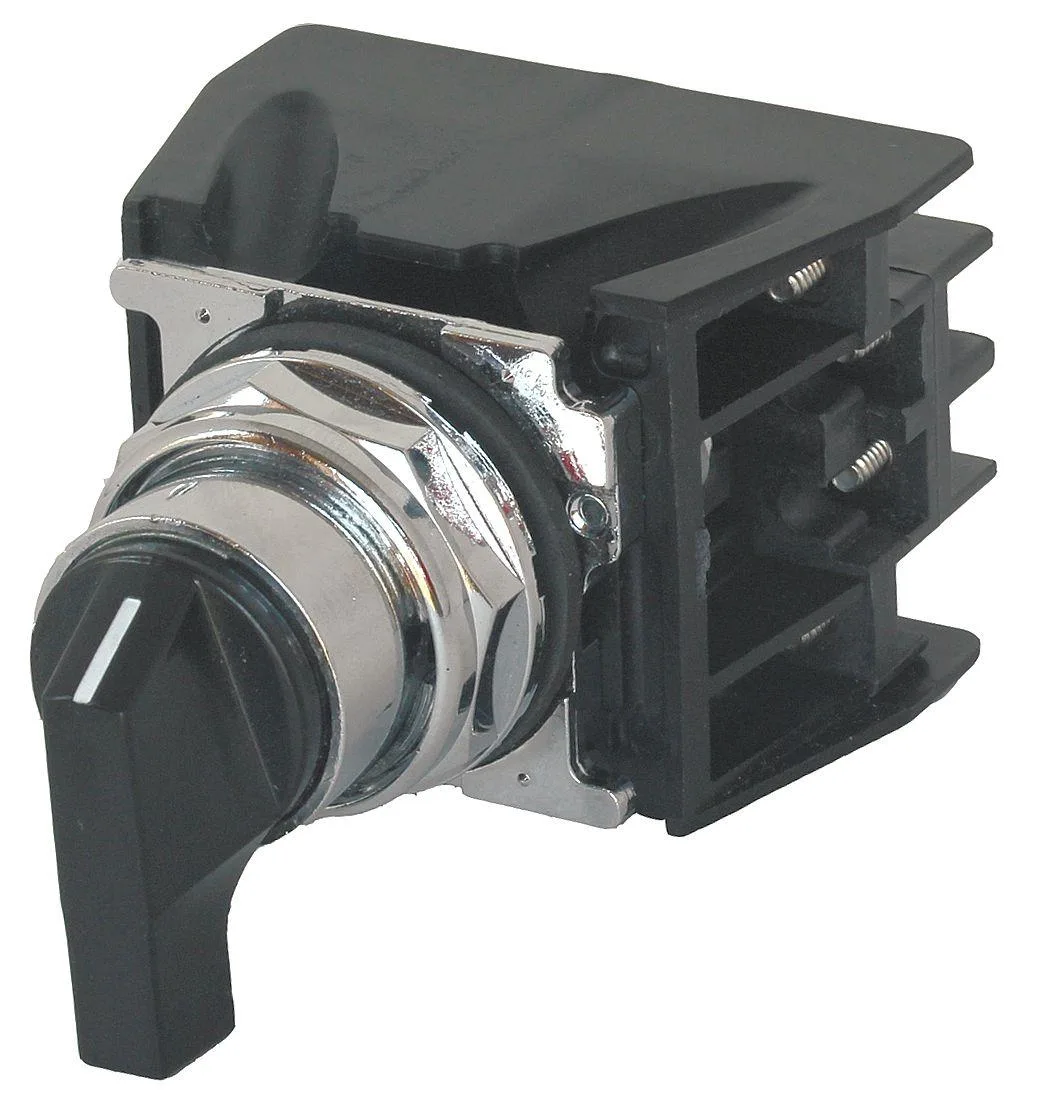

Black metal selector switch with long lever, 30 mm, two-position maintained action

Eaton

Eaton 10250T722BL Cutler-Hammer Selector Switch 2 Position

SKU CH-7D89-S66W5

A 30 mm two-position selector switch with 1NO/1NC contacts, 10A at 600V AC and IP65 protection for industrial control panels

  • TypeIndustrial Electrical Controls & Automation
  • 30 mm mounting fits standard industrial panels
  • Maintained two-position action holds each setting without spring return
  • 1NO/1NC contact block rated 10 A at 600 V AC and 2.5 A at 250 V DC
  • NEMA 4X and IP65 rating protects against water, dust and corrosion
  • Metal operator head, bezel and body withstand heavy-duty use

30 mm Selector Switch

This 30 mm selector switch provides two maintained positions for industrial control panels. It carries a 1NO/1NC contact block rated at 10A @ 600V AC and 2.5A @ 250V DC. The operator head, bezel and basic material are all metal with a black lever. NEMA ratings 12, 13, 3, 3R, 4 and 4X plus IP65 protect the contacts in harsh environments.

Panel Builders and Maintenance Teams

The switch suits panels that need a simple maintained two-position selector with robust metal construction and high contact ratings. Installers who require a key-operated version, spring-return action, additional contact blocks or a different mounting diameter should look at other models.

Included Contact Block

The factory-fitted 1NO/1NC contact block means the device is ready to wire without ordering separate contacts. Operation at Position A is XO and at Position B is OX, matching standard maintained selector logic. The block meets NEMA A600 and Q300 designations and is listed to CSA, IEC and UL standards.

Highlights

  • 30 mm mounting fits standard industrial panels
  • Maintained two-position action holds each setting without spring return
  • 1NO/1NC contact block rated 10 A at 600 V AC and 2.5 A at 250 V DC
  • NEMA 4X and IP65 rating protects against water, dust and corrosion
  • Metal operator head, bezel and body withstand heavy-duty use

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

What panel cut-out size does the 30 mm selector switch require?

The switch fits a standard 30 mm panel cut-out, so the enclosure must provide that opening.

Can the 10 A 600 V AC contacts switch the same loads as an older A600-rated pilot device?

Yes, the NEMA A600 and Q300 ratings match legacy A600/Q300 contact blocks for equivalent AC and DC loads.

How do I verify the maintained positions are wired correctly after installation?

At Position A the NO contact is closed and NC open (XO); at Position B the NO opens and NC closes (OX).
