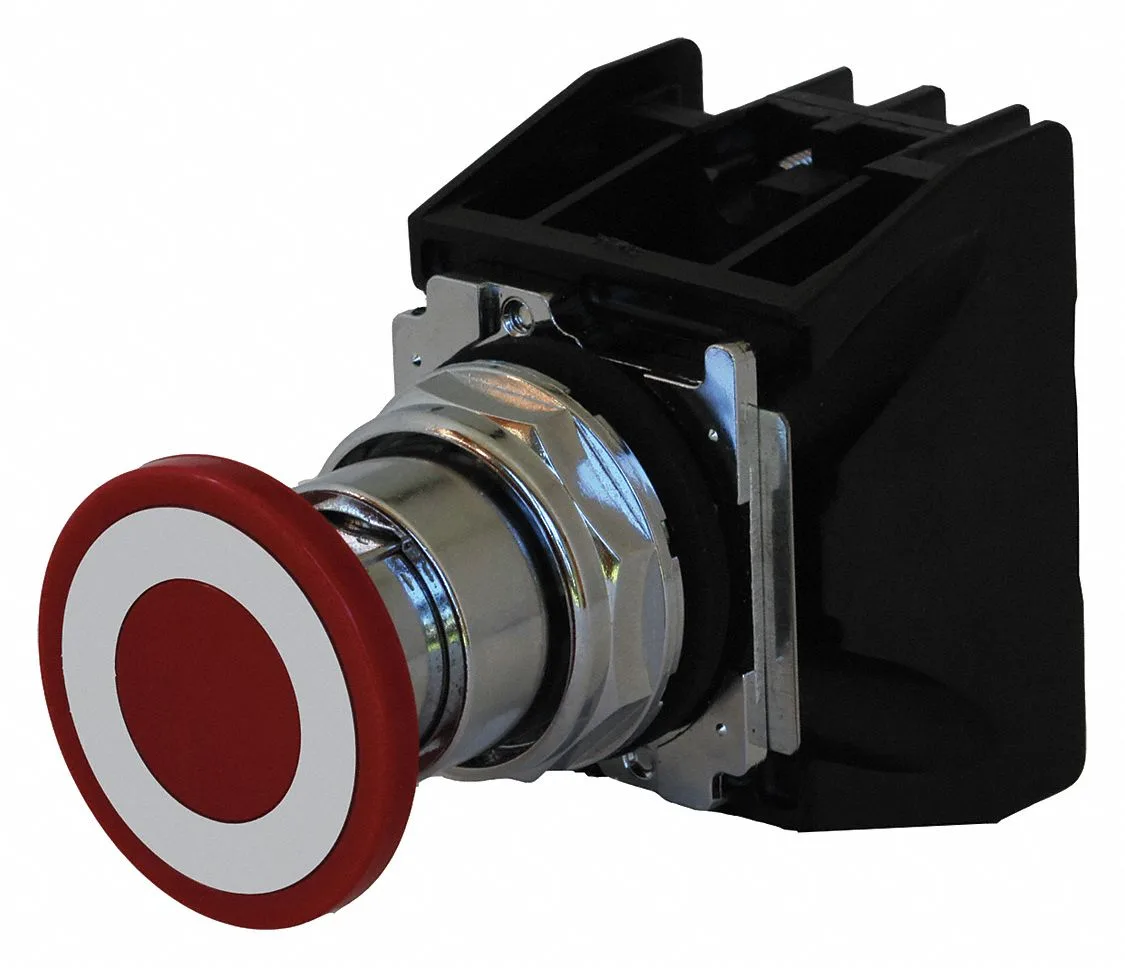

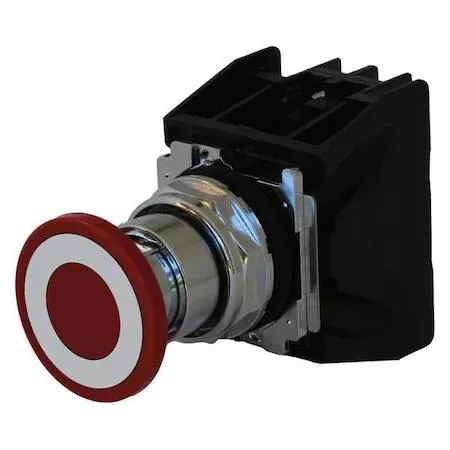

Red 30 mm metal mushroom push button with chrome bezel

Eaton

Eaton 10250T714R 30 mm mushroom push button operator 1NO/1NC red

SKU CH-FB9T-MYAPV

30 mm red mushroom push button with maintained action, 1NO/1NC contacts rated 10 A at 600 V AC, IP65 and NEMA 4X sealed

  • TypeIndustrial Electrical Controls & Automation
  • 30 mm mushroom head enables quick emergency actuation
  • 1NO/1NC contact block rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing protects against water and dust
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Certified to UL 508, UL 1604, CSA, CE and FDA 3-A standards

30 mm mushroom push button operator

The Eaton 10250T714R is a 30 mm maintained-action mushroom push button with a 40 mm metal head and 1NO/1NC contacts. It is built for industrial control panels requiring a distinct, heavy-duty emergency or stop function. The red colour and chrome-plated zinc die-cast bezel provide clear visual identification in demanding environments.

IP65 and NEMA 12, 13, 3, 3R, 4.

Factory sealing, drainage holes and grounding nibs protect the internal mechanism from dust, water jets and corrosive atmospheres. Screw-clamp terminals accept field wiring directly, simplifying installation and maintenance on DIN-rail or panel-mounted enclosures rated to the same standards.

Replaces worn or non-sealed operators in safety

The 10 A at 600 V AC rating with A600/P600 designation suits legacy relay logic and modern PLC input modules alike. Upgrading is justified when an existing button lacks IP65 protection, shows contact degradation or fails to meet CE, CSA, UL 508 and UL 1604 compliance required by current panel audits.

Highlights

  • 30 mm mushroom head enables quick emergency actuation
  • 1NO/1NC contact block rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing protects against water and dust
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Certified to UL 508, UL 1604, CSA, CE and FDA 3-A standards

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

What current does the 10 A at 600 V AC contact rating cap in practice?

The screw-clamp terminals are rated for 10 A at 600 V AC with an A600/P600 NEMA designation, so the operator switches up to 10 amperes on 600-volt AC circuits.

What panel cut-out and mounting depth does the 30 mm mushroom head need?

The operator fits a standard 30 mm panel cut-out; the 40 mm metal mushroom head and chrome-plated zinc die-cast bezel require enough rear clearance for the screw-clamp terminal block.

How is the 1NO/1NC contact block wired, and what step is often missed?

Insert stripped wires into the screw-clamp terminals and tighten to the specified torque; the step often missed is securing the grounding nib on the operator body to maintain the NEMA 12, 13, 3, 3R, 4, 4X and IP65 seal.
