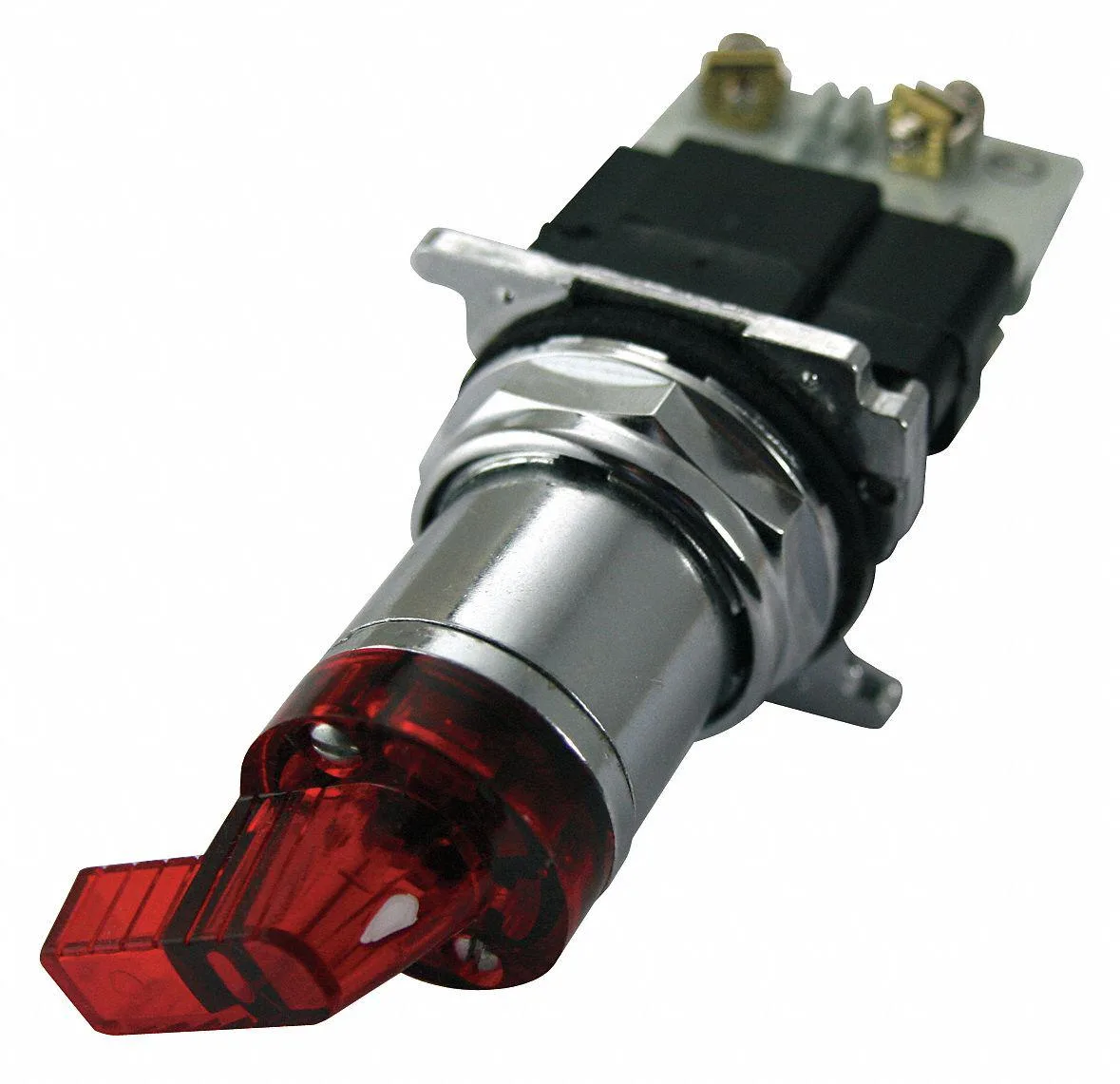

Eaton 10250ED1117-4LR Cutler-Hammer Illuminated Selector Switch 30mm 4 Position
A 30 mm illuminated selector switch with four maintained positions, a lever operator, and 10 A contact rating at 660 V
- Illuminated lever operator for clear status indication
- Four maintained positions provide versatile control sequences
- 30 mm mounting fits standard panel cut-outs
- IP68 and NEMA 4X ratings withstand harsh environments
- 10 A contact rating at 660 V handles demanding circuits
Illuminated 4-Position Selector Switch
The Eaton 10250ED1117-4LR is a 30 mm illuminated selector switch with a maintained lever operator in four positions. It uses an incandescent lamp module rated for 120V AC and carries a 10A contact rating at 660V AC/DC. The zinc die-cast chrome bezel and dielectric polymer head suit industrial control panels.
Suits panels needing maintained four-way selection
This switch fits operators who need a single maintained lever to choose between four distinct circuits with visual indication. It is not for applications requiring momentary action, spring-return operation, or a different number of positions. Buyers needing a non-illuminated operator or a different lamp voltage should look elsewhere.
Contact form 2NO/2NC with A600/P600 rating
The switch provides two normally open and two normally closed contacts rated NEMA A600/P600 for 600V control circuits. This contact arrangement determines whether the device matches the required control logic. Verify the 2NO/2NC configuration against your wiring diagram before purchase.
Highlights
- Illuminated lever operator for clear status indication
- Four maintained positions provide versatile control sequences
- 30 mm mounting fits standard panel cut-outs
- IP68 and NEMA 4X ratings withstand harsh environments
- 10 A contact rating at 660 V handles demanding circuits
Specifications
| Brand | EATON |
|---|
Questions about this item
What panel cut-out size does the 30 mm illuminated selector switch need?
The switch mounts in a standard 30 mm panel cut-out and secures with the included locking nut.
Can the 10 A, 660 V contacts replace an older A600/P600 rated switch in the same circuit?
Yes, the NEMA A600/P600 rating matches legacy contactors so the switch fits existing wiring without changes.
How do I confirm the 120 V incandescent lamp module is working after installation?
Turn the lever to any maintained position; the red lever should glow steadily when control power is applied.
