Black rectangular ATX power supply with single fan and fixed cables

E-POWER

E-POWER EP-600-TD2 600 W ATX power supply

SKU CH-7GFZ-F9WG7 MPN EP-600-TD2

A 600 W ATX unit with dual 12 V rails and PCIe connectors for graphics cards

  • TypeATX12V
  • Maximum Power600 W
  • Fans1
  • PFCNo
  • Main Connector20+4Pin
  • +12V Rails2
  • Reliable 600 W output powers mainstream gaming PCs
  • Dual 12 V rails with 20 A each feed graphics cards
  • 6-pin and 6+2-pin PCIe connectors support demanding GPUs
  • 100 % Hi-Pot tested with short-circuit protection on all outputs
  • Universal 100-240 V input works at 50 Hz or 60 Hz

600 W ATX power supply for mainstream builds

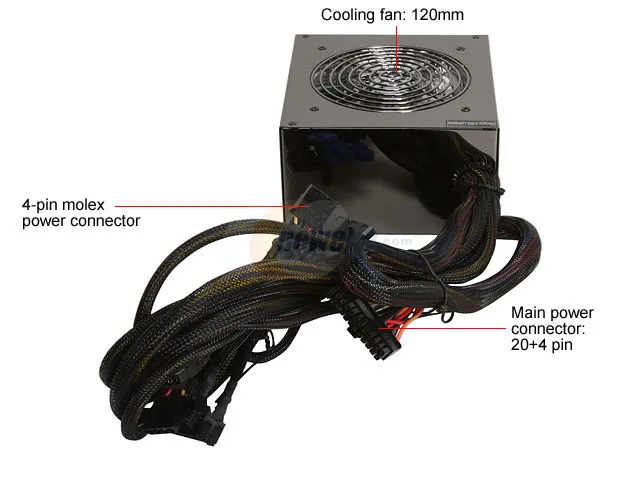

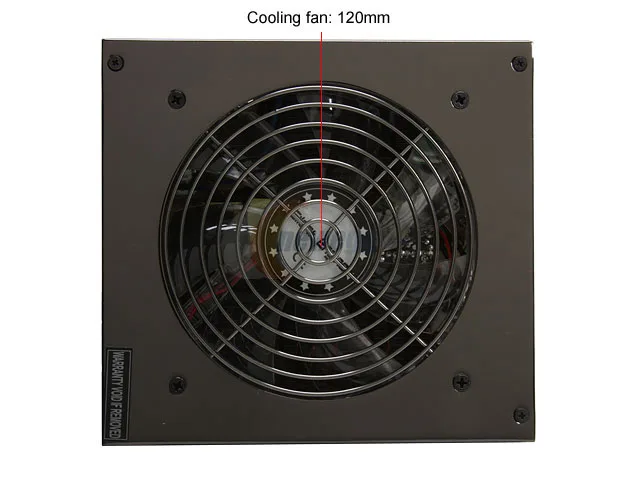

The E-POWER EP-600-TD2 delivers up to 600 W from a standard ATX12V form factor. It uses dual +12 V rails rated at 20 A each alongside +3.3 V and +5 V rails at 24 A. A single 120 mm fan provides airflow while the unit carries UL, CSA, CE, CB and FCC approvals.

Suited to office PCs and mid-range gaming rigs

This unit fits builders who need a 6-pin and a 6+2-pin PCIe connector for a single graphics card. It is not for systems that require modular cabling, active PFC or support for multi-GPU configurations. The fixed cable set includes six Molex, four SATA and one floppy connector.

Behaviour under sustained load

Low ripple and noise are maintained across the output range and every unit passes a 100 % Hi-Pot test. Short-circuit protection operates on all rails and the dual +12 V design splits the load between two 20 A circuits. The fan speed ramps to keep temperatures stable during extended operation.

Highlights

  • Reliable 600 W output powers mainstream gaming PCs
  • Dual 12 V rails with 20 A each feed graphics cards
  • 6-pin and 6+2-pin PCIe connectors support demanding GPUs
  • 100 % Hi-Pot tested with short-circuit protection on all outputs
  • Universal 100-240 V input works at 50 Hz or 60 Hz

Specifications

BrandePOWER
ModelEP-600-TD2
TypeATX12V
Maximum Power600 W
Fans1
PFCNo
Main Connector20+4Pin
+12V Rails2
PCI-Express Connector1 x 6-Pin, 1 x 6+2-Pin
SLINo
ModularNo
Over Voltage ProtectionYes
Input Voltage100 - 120 V / 200 - 240 V
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 6A @ 230V

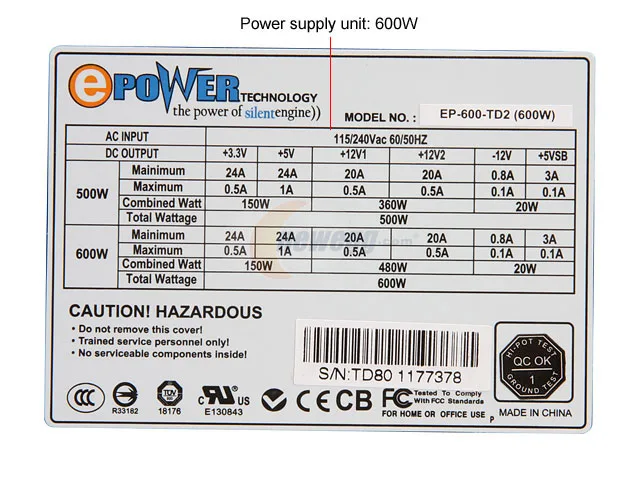

Output+3.3V@24A,+5V@24A,+12V1@20A,+12V2@20A, [email protected] , [email protected]
ApprovalsUL, CSA, CE, CB, FCC

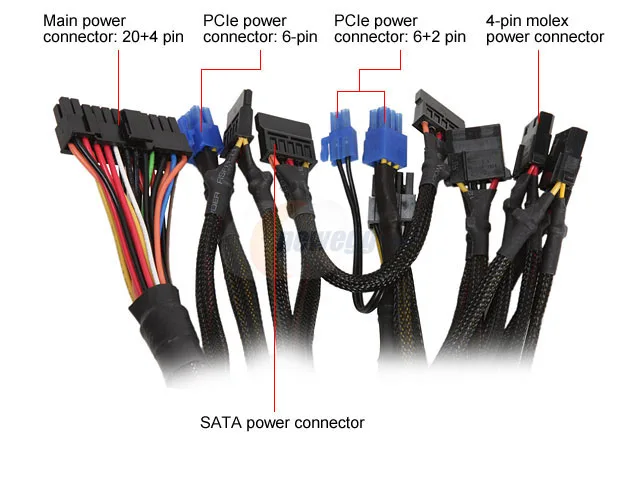

Connectors1 x Main connector (20+4Pin)
1 x 12V (P4)
6 x 4pin Molex
4 x SATA
1 x Floppy
2 x PCI-E
FeaturesBlack case
Low ripple and noise
100% Hi-Pot Tested
Short circuit protection on all outputs
Shipping weight3.08 kg
Package size292 × 229 × 102 mm

Questions about this item

What motherboard power connector does the EP-600-TD2 require to work?

The unit supplies a 20+4 pin main connector that fits standard ATX12V motherboards.

Can I keep my older IDE drives when installing this power supply?

Six 4-pin Molex connectors and one floppy connector are provided for legacy drives.

How do I verify the dual 12 V rails are delivering power after setup?

Each rail is rated for 20 A and the unit includes over-voltage and short-circuit protection on all outputs.
