E-buy TI EV2300 HPA002 USB Battery Fuel Gauge Evaluator
USB interface board evaluates battery fuel-gauge circuits via SMBus and HDQ on 32-bit and 64-bit Windows
- USB interface for PC-based battery fuel gauge evaluation
- Supports HDQ and SMBus communication protocols
- Connects directly to USB port for easy setup
- Enables on-screen register display and programming
- New sealed unit — software downloads available separately
USB Battery Fuel Gauge Evaluator

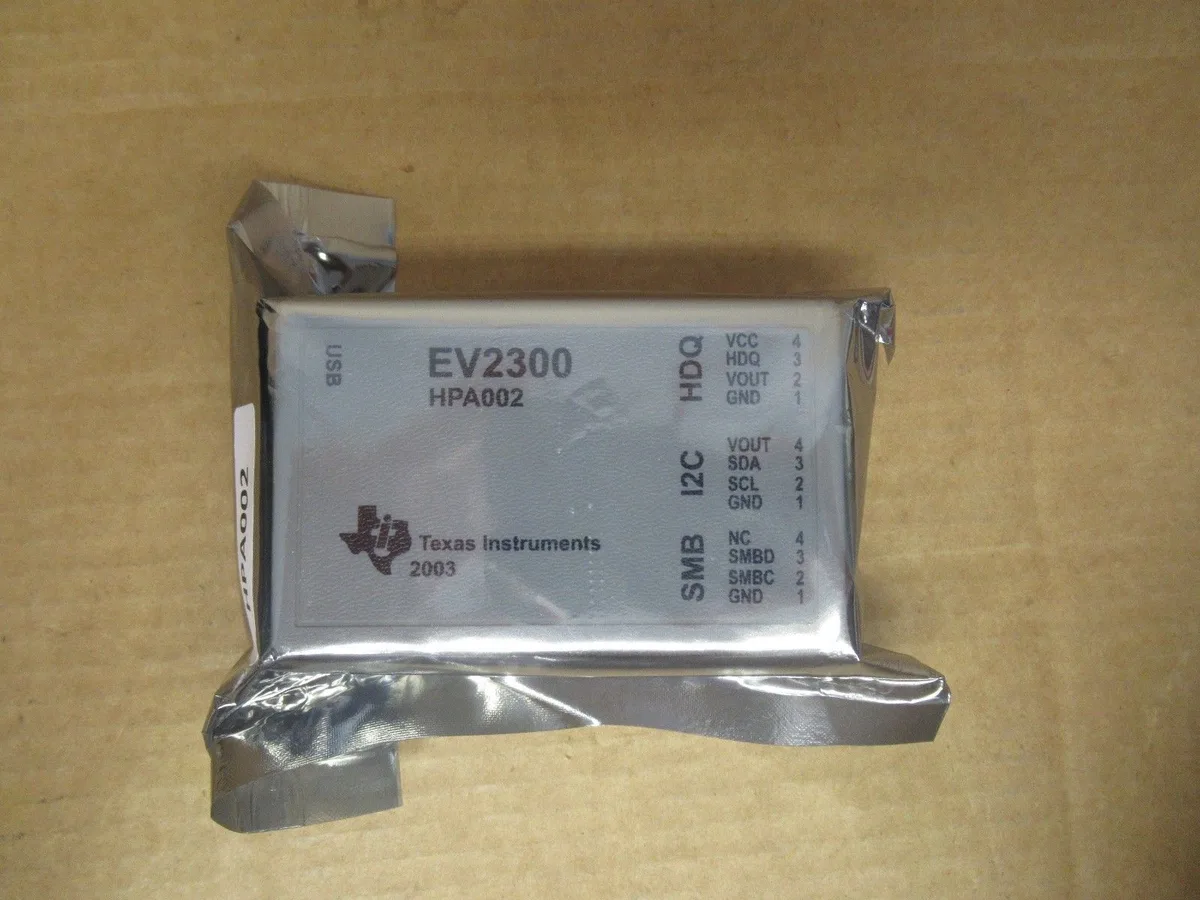

The EV2300 HPA002 is a USB-based interface board that connects a Windows PC to battery fuel gauge circuits using HDQ or SMBus communication. It enables on-screen display and programming of gas gauge registers when paired with the appropriate Texas Instruments software for the target IC.
Developers and Engineers Evaluating TI Gauge ICs
This tool suits engineers who need to evaluate or configure Texas Instruments battery fuel gauge circuits during development. It is not for buyers who require a standalone battery tester, a device with included software, or an interface for non-TI fuel gauge protocols.
PC Compatibility and Software Setup
Verify that the host computer runs a supported Windows version and that the correct 32-bit or 64-bit driver is installed before connecting the board. Confirm the target fuel gauge circuit uses HDQ or SMBus and that the matching TI evaluation software is downloaded separately.
Highlights
- USB interface for PC-based battery fuel gauge evaluation
- Supports HDQ and SMBus communication protocols
- Connects directly to USB port for easy setup
- Enables on-screen register display and programming
- New sealed unit — software downloads available separately
Specifications
No published specifications for this item yet.
Questions about this item
What PC connection does the EV2300 HPA002 require to operate?
The EV2300 HPA002 connects to a USB port on a Windows-based PC to provide the interface between the battery fuel gauge circuit and the evaluation software.
Can the EV2300 HPA002 communicate with fuel gauge circuits using HDQ or SMBus protocols?
Yes, the EV2300 HPA002 accepts inputs from a battery fuel gauge circuit's communication port using either HDQ or SMBus protocols for evaluation.
How do I verify the EV2300 HPA002 is functioning correctly after installing the driver and software?
When the appropriate PC software for your fuel gauge IC is running, the EV2300 allows on-screen display and programming of gas gauge register functions to confirm operation.
