15.6 inch LCD panel with 30 pin CCFL connector

E-buy

E-buy 15.6 LCD WXGA CCFL 30 pin 156AT01

SKU CH-SWX4-FKZPX

A 15.6-inch CCFL LCD panel with 1366 x 768 resolution and a 30-pin connector for Acer TravelMate 5740-X522D laptops

  • Specifications1366 x 768
  • 6-inch WXGA display delivers sharp 1366 x 768 visuals
  • CCFL backlight with single bulb ensures consistent brightness
  • 30-pin CCFL connector matches original laptop socket
  • Compatible with Acer TravelMate 5740 and multiple part numbers
  • New Grade A+ panel tested for full working guarantee

15.6-inch CCFL LCD replacement panel

This 15.6-inch WXGA LCD panel uses a single CCFL backlight and a 30-pin connector. It delivers a native resolution of 1366 x 768 pixels and is supplied in new Grade A+ condition. The screen is designed specifically for laptop repairs and is fully tested before dispatch.

CCFL backlight and 30-pin interface limits

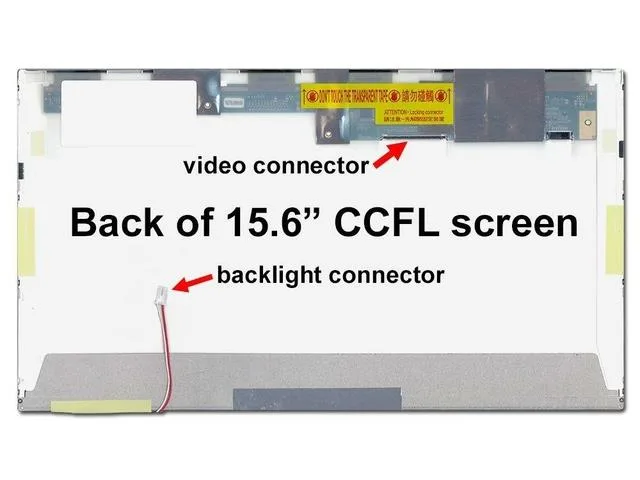

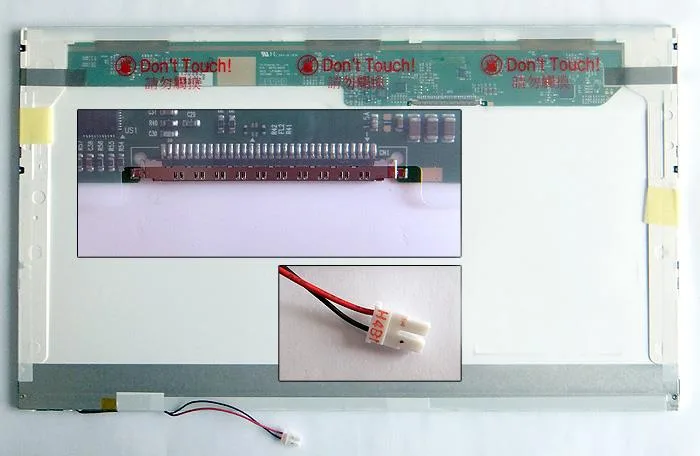

The CCFL backlight requires a compatible inverter board inside the laptop; LED-backlit models cannot use this panel without modification. The 30-pin CCFL socket carries both power and video signals, so the motherboard must provide the matching pin-out and voltage for the single bulb. No conversion cable is included.

Verify laptop compatibility before ordering

Check that the original screen part number matches one of the listed compatibles such as LTN156AT01 or CLAA156WA01A. Confirm the laptop uses a CCFL backlight with a 30-pin connector and not an LED 40-pin or eDP interface. Measure the bezel opening to ensure the 15.6-inch wide-screen dimensions fit the chassis.

Highlights

  • 6-inch WXGA display delivers sharp 1366 x 768 visuals
  • CCFL backlight with single bulb ensures consistent brightness
  • 30-pin CCFL connector matches original laptop socket
  • Compatible with Acer TravelMate 5740 and multiple part numbers
  • New Grade A+ panel tested for full working guarantee

Specifications

Model15.6LCD
Specifications1366 x 768

Questions about this item

Which compatible part number should I pick for my Acer TravelMate 5740?

The screen replaces LTN156AT01, LP156WH1-TLC1, LP156WH1-TLA1, LP156WH1-TLA2, N156B3-L01, N156B3-L02, N156B3-L02 REV.C1, CLAA156WA01A and CLAA156WA01; match the code on your original panel.

What does the 1366 x 768 resolution look like on a 15.6-inch panel?

WXGA gives a 13.6 by 7.6 inch active area with 1366 horizontal and 768 vertical pixels, typical for HD laptop displays.

What does the 30-pin CCFL connector limit in practice?

The 30-pin CCFL socket carries the video signal and backlight power for a single-bulb fluorescent panel; it is not compatible with LED screens or conversion cables.
