15.6-inch CCFL LCD panel with 30-pin connector

E-buy

E-buy 15.6 LCD 1366x768 CCFL 30-pin 5536

SKU CH-P038-2Z0S4

15.6-inch WXGA CCFL laptop screen with 1366×768 resolution and 30-pin connector for compatible models

  • Specifications1366 x 768
  • 6-inch WXGA resolution for sharp HD visuals
  • CCFL backlight with single bulb for consistent brightness

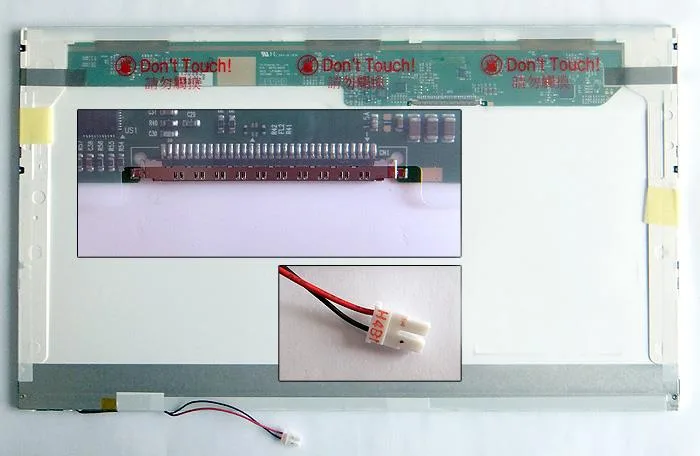

  • 30-pin CCFL connector ensures direct laptop compatibility
  • Matches nine manufacturer part numbers for exact fit
  • Three-year warranty backs tested Grade A+ condition

Direct replacement for 15.6-inch Aspire 5536 panels

This 15.6-inch CCFL LCD panel matches the original 1366 x 768 WXGA resolution and 30-pin connector used in the Acer Aspire 5536-644G3. It is built for repair technicians and owners restoring that specific chassis. The part cross-references LTN156AT01, LP156WH1-TLC1, LP156WH1-TLA1, LP156WH1-TLA2, N156B3-L01, N156B3-L02, N156B3-L02 REV.C1, CLAA156WA01A and CLAA156WA01.

Replaces CCFL panels only — not LED conversions

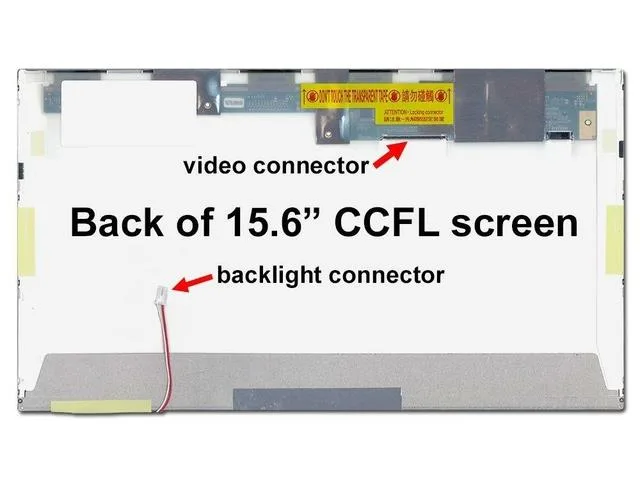

The screen uses a single CCF bulb backlight and a 30-pin CCFL socket, so it fits laptops designed for that signalling. It does not support LED-backlit assemblies or conversion cables. Buyers whose machine shipped with an LED panel or who want a thinner LED retrofit cannot use this unit.

Tested for sustained operation under continuous

Each unit is fully tested and verified before dispatch with a three-year guarantee covering 900 days. The CCFL backlight maintains stable output during long sessions rather than only in short bursts. The panel is intended for laptops only and is not suitable for desktop monitor conversions or other form factors.

Highlights

  • 6-inch WXGA resolution for sharp HD visuals
  • CCFL backlight with single bulb for consistent brightness
  • 30-pin CCFL connector ensures direct laptop compatibility
  • Matches nine manufacturer part numbers for exact fit
  • Three-year warranty backs tested Grade A+ condition

Specifications

Model15.6LCD
Specifications1366 x 768

Questions about this item

What are the exact dimensions of the 15.6-inch panel so I can confirm it fits my laptop lid?

The panel measures 13.6 inches wide by 7.6 inches high, matching the standard 15.6-inch wide-screen form factor used in the Acer Aspire 5536 series.

Which way does the 30-pin CCFL connector plug into the motherboard, and what is the common mistake?

The 30-pin CCFL socket keys to one side; the frequent error is forcing it in reversed, which bends pins and prevents the backlight from lighting.

How long does the single CCFL bulb typically last before it needs replacement?

The manufacturer backs the screen with a 900-day warranty, indicating the CCFL bulb is rated for several years of normal daily use before dimming.
