15.6 inch LCD panel CCFL backlight 30 pin connector WXGA 1366 x 768 resolution

E-buy

E-buy 15.6 LCD 1366 x 768 CCFL 30 pin

SKU CH-34XF-4Q4PF

Replacement 15.6-inch CCFL panel for HP Pavilion DV6-1150EL with 1366 x 768 resolution and 30-pin connector, tested working

  • Specifications1366 x 768
  • 6-inch WXGA display delivers 1366 x 768 HD clarity
  • CCFL backlight with single bulb matches original laptop specifications

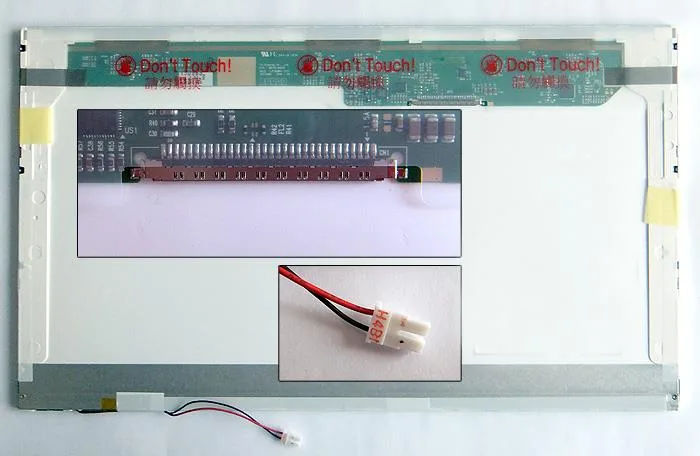

  • 30-pin CCFL socket ensures direct compatibility without adapters
  • Replaces nine manufacturer part numbers across multiple brands
  • New Grade A+ panel fully tested with three-year coverage

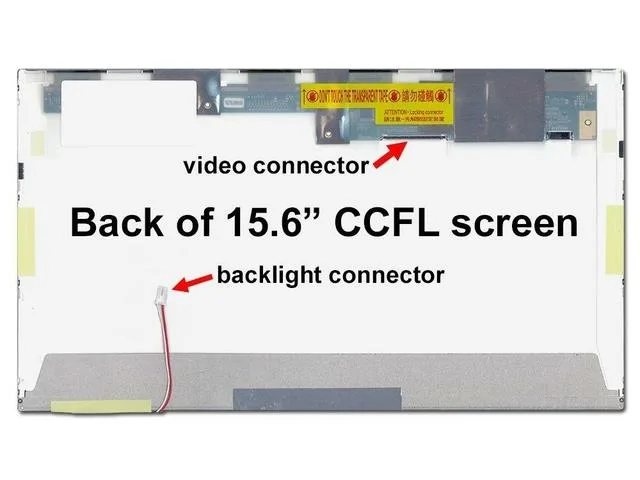

15.6-Inch CCFL Replacement Panel

This 15.6-inch LCD panel uses a CCFL backlight with a single bulb and a native resolution of 1366 x 768. It connects through a 30-pin CCFL socket and matches the dimensions of 13.6 by 7.6 inches. The screen is supplied new and fully tested for laptop repair.

Repair Technicians and DIY Upgraders

The part suits anyone replacing a failed CCFL panel in a compatible laptop chassis. It will not work for machines that require an LED backlight or a different pin-count connector. Buyers needing a higher resolution or a modern LED assembly should look at something else.

Direct Swap for Listed Part Numbers

Installation fits the existing 30-pin socket and mounting points without adapter cables. The CCFL inverter already present in the laptop powers the single bulb, freeing the builder from sourcing a separate driver board. Compatible part numbers include LTN156AT01, LP156WH1-TLC1, LP156WH1-TLA1, LP156WH1-TLA2, N156B3-L01, N156B3-L02, N156B3-L02 REV.C1, CLAA156WA01A and CLAA156WA01.

Highlights

  • 6-inch WXGA display delivers 1366 x 768 HD clarity
  • CCFL backlight with single bulb matches original laptop specifications
  • 30-pin CCFL socket ensures direct compatibility without adapters
  • Replaces nine manufacturer part numbers across multiple brands
  • New Grade A+ panel fully tested with three-year coverage

Specifications

Model15.6LCD
Specifications1366 x 768

Questions about this item

Does my laptop need a 30-pin CCFL connector and CCFL inverter to run this 15.6-inch 1366 x 768 panel?

Yes, the screen uses a 30-pin CCFL socket and a single CCF bulb, so the host must provide a matching 30-pin CCFL video cable and a compatible CCFL inverter.

Will this panel work in an HP Pavilion DV6-1150EL that originally shipped with an LED-backlit display?

No, this is a CCFL-backlit panel with a 30-pin CCFL connector; it is not interchangeable with LED-backlit screens that use a different pin-out and voltage.

After fitting the screen, how can I confirm the CCFL backlight and 1366 x 768 resolution are operating correctly?

The display should show a uniform WXGA image at 1366 x 768 with even brightness across the 15.6-inch area and no flicker, indicating the CCFL bulb and inverter are functioning.
