15.6-inch CCFL LCD panel with 30-pin connector

E-buy

E-buy 15.6-inch WXGA CCFL LCD panel LTN156AT01

SKU CH-WAVH-HXYW3

A 15.6-inch WXGA CCFL laptop display panel with 1366 x 768 resolution and a 30-pin connector, compatible with multiple part numbers

  • Specifications1366 x 768
  • 6-inch WXGA resolution delivers 1366 x 768 HD clarity
  • CCFL backlight with single bulb matches original laptop specifications
  • 30-pin CCFL socket ensures direct compatibility without conversion cables
  • Replaces multiple part numbers including LTN156AT01 and LP156WH1 series
  • New Grade A+ panel fully tested with three-year guarantee

15.6-inch CCFL replacement panel

This 15.6-inch WXGA LCD panel uses a single CCFL backlight and a 30-pin connector. It is designed as a direct replacement for compatible laptop displays. The 1366 x 768 resolution matches the original specification for supported models. Buyers needing an LED-backlit panel or a different pin layout cannot use this part.

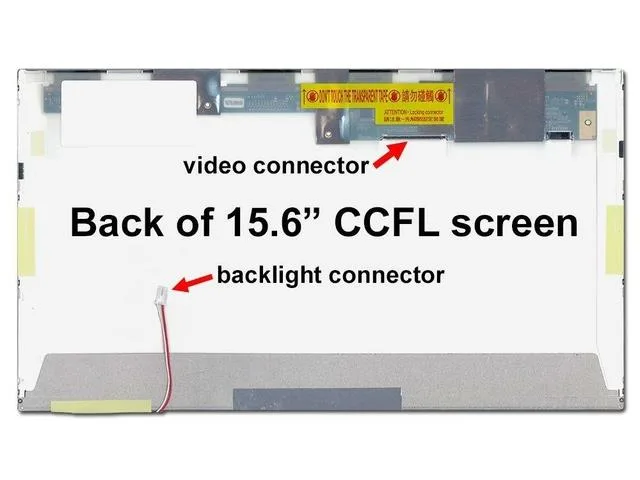

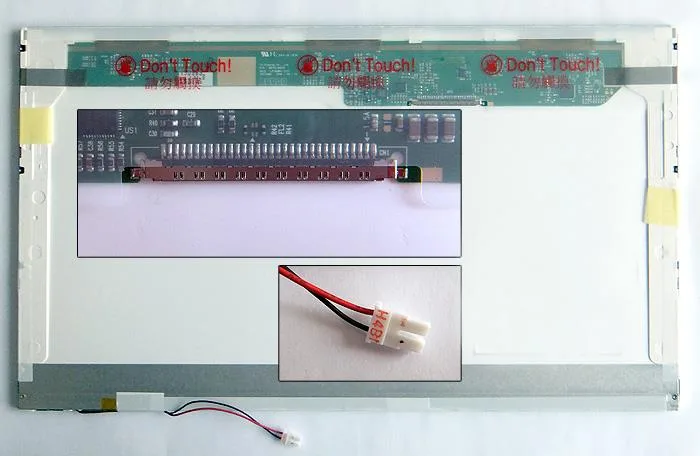

30-pin CCFL socket and Grade A+ condition

The panel arrives new in Grade A+ condition and has been fully tested by the supplier. Its 30-pin CCFL socket fits laptops wired for that interface without adapter cables. The 13.6 by 7.6 inch active area aligns with standard 15.6-inch wide-screen bezels. Installers must verify the exact part number before ordering.

CCFL thermals and three-year coverage

A single CCFL bulb generates modest heat that the laptop's existing cooling manages in normal use. Power draw follows the original panel specification for the supported models. The supplier backs the unit with a three-year or 900-day guarantee against defects. Users seeking lower power consumption or thinner profiles should consider LED alternatives.

Highlights

  • 6-inch WXGA resolution delivers 1366 x 768 HD clarity
  • CCFL backlight with single bulb matches original laptop specifications
  • 30-pin CCFL socket ensures direct compatibility without conversion cables
  • Replaces multiple part numbers including LTN156AT01 and LP156WH1 series
  • New Grade A+ panel fully tested with three-year guarantee

Specifications

Model15.6LCD
Specifications1366 x 768

Questions about this item

What resolution does the 30-pin CCFL connector support on this 15.6-inch panel?

The 30-pin CCFL socket carries a WXGA signal at 1366 x 768 pixels, which is the native resolution of the LTN156AT01 panel.

Will the 13.6 by 7.6 inch dimensions fit my laptop's display bezel?

The panel measures 13.6 inches wide by 7.6 inches high, so compare those figures with your bezel opening before ordering.

How do I install this CCFL screen and what step is often missed?

Remove the bezel, disconnect the old 30-pin cable and inverter lead, fit the new panel, reconnect both cables, then test before reassembling — skipping the inverter connection is the common error.
