15.6-inch matte LCD panel with 30-pin CCFL connector

E-buy

E-buy 15.6-inch LCD screen 1366 x 768 30-pin CCFL

SKU CH-NMWN-4YDZN

15.6-inch WXGA laptop LCD panel with 1366 x 768 resolution and 30-pin CCFL backlight connector

  • Specifications1366 x 768
  • 6-inch wide display gives 13.6 by 7.6 inch viewing area
  • WXGA 1366 x 768 resolution delivers sharp HD detail
  • CCFL single-bulb backlight matches original laptop specification
  • 30-pin CCFL connector fits listed Compaq and compatible part numbers
  • Three-year warranty covers 900 days of verified operation

15.6-inch CCFL replacement panel

This 15.6-inch WXGA LCD panel uses a single CCFL backlight and a 30-pin CCFL connector. It matches the 1366 x 768 resolution found in compatible Compaq Presario CQ61-120SF laptops and several listed part numbers. The screen is supplied new and fully tested with a Grade A+ rating.

Installation requires CCFL inverter match

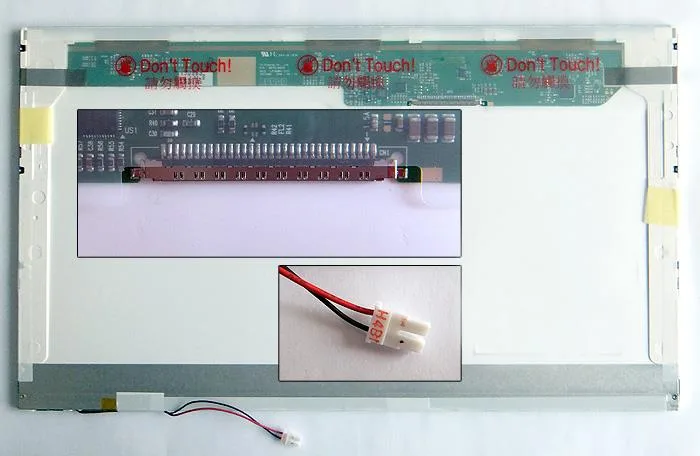

Fitting the panel involves disconnecting the 30-pin cable and the CCFL bulb lead from the laptop inverter. A common issue is ordering this CCFL model when the laptop actually uses an LED-backlit screen with a different connector. The single bulb and 30-pin socket must match the original hardware exactly.

Verify original screen backlight type first

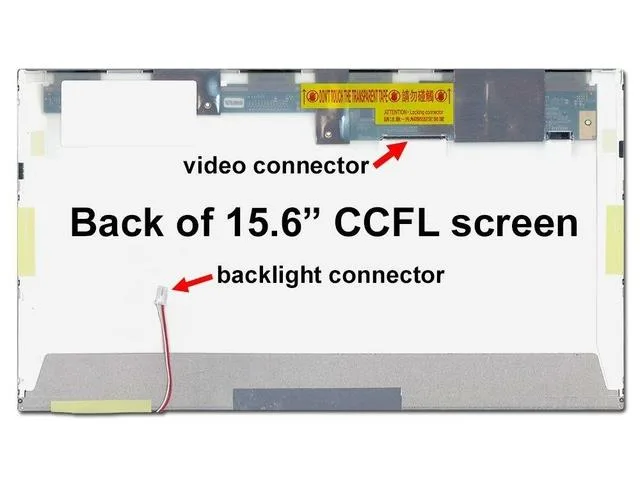

Before ordering, remove the bezel and check the part number on the back of the existing panel against the compatible list such as LTN156AT01 or N156B3-L01. Confirm the laptop uses a CCFL backlight with one bulb and a 30-pin video socket. This panel will not work in LED-equipped models or those with a 40-pin connector.

Highlights

  • 6-inch wide display gives 13.6 by 7.6 inch viewing area
  • WXGA 1366 x 768 resolution delivers sharp HD detail
  • CCFL single-bulb backlight matches original laptop specification
  • 30-pin CCFL connector fits listed Compaq and compatible part numbers
  • Three-year warranty covers 900 days of verified operation

Specifications

Model15.6LCD
Specifications1366 x 768

Questions about this item

How can I verify the 15.6-inch CCFL panel is working correctly after installation?

Power on the laptop and confirm the 1366 x 768 image appears evenly across the 15.6-inch area with no flicker, dead pixels or backlight bleed; the single CCF bulb should illuminate uniformly within seconds.

What components are included and what must I source separately for the 30-pin CCFL screen?

The shipment contains only the 15.6-inch LCD panel with its 30-pin CCFL connector; you must supply the matching inverter board, hinge brackets and any model-specific cable for your Compaq Presario CQ61-120SF.

Which compatible part number should I select for my 15.6-inch WXGA replacement?

Match the sticker on your original panel to one of the listed numbers — LTN156AT01, LP156WH1-TLC1, LP156WH1-TLA1, LP156WH1-TLA2, N156B3-L01, N156B3-L02, N156B3-L02 REV.C1, CLAA156WA01A or CLAA156WA01 — to ensure the 30-pin CCFL pin-out and bulb type align.
