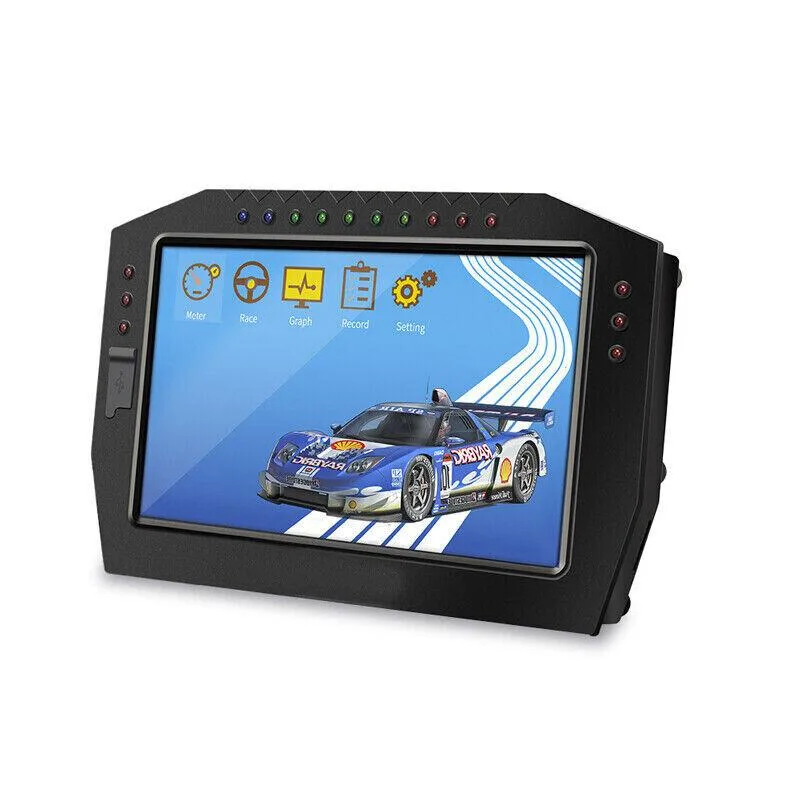

Rectangular 7 inch digital racing dashboard with colour touchscreen and sensor kit

Dyno Racing

Dyno Racing DO909 7 inch Digital Tachometer Full Sensor Kit

SKU CH-JPTT-3A128

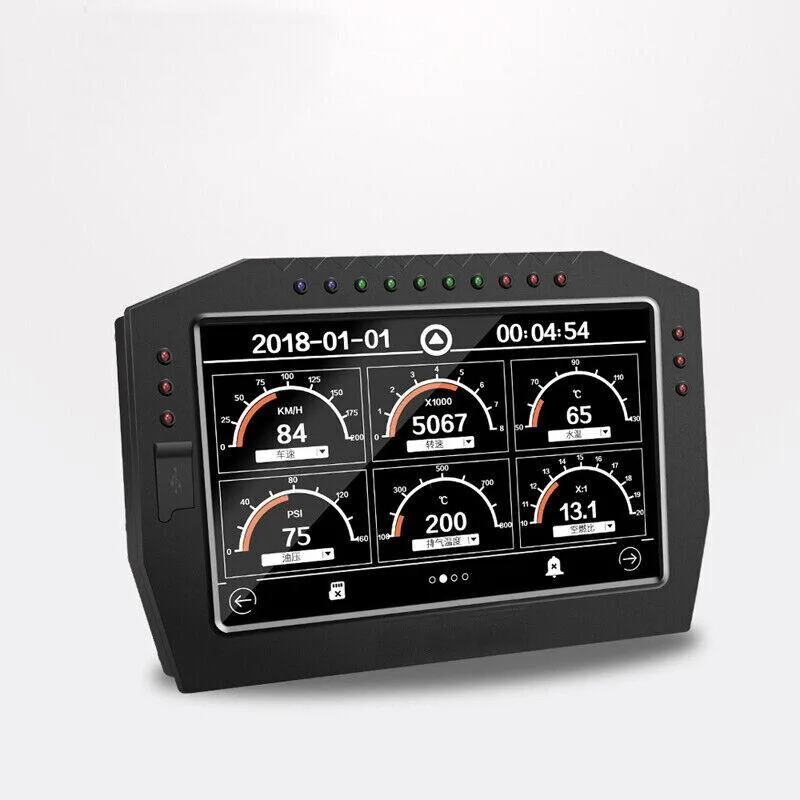

A 7-inch digital tachometer kit displaying RPM up to 12000, speed, air/fuel ratio, oil pressure, turbo boost, water temperature, voltage, oil temperature.

  • TypeInstrument Clusters
  • Gauge TypeTachometer
  • 7 inch digital touch-screen gives clear race data at a glance
  • 12 000 RPM bar graph tracks engine speed up to the redline
  • Operates on 9 V to 16 V systems for universal 12 V fitment
  • Monitors ten parameters including boost, air/fuel ratio and temperatures
  • Speed reads 0–255 km/h or mph with configurable pulse settings

7 inch Digital Tachometer Kit

The Dyno Racing DO909 is a full sensor kit that replaces a standard instrument cluster with a colourful LCD touch-screen. It suits track-day drivers and street tuners who want RPM, speed and ten additional engine parameters in one universal display. The unit operates on 9V-16V systems and fits most 12 Volt cars.

Installation Notes

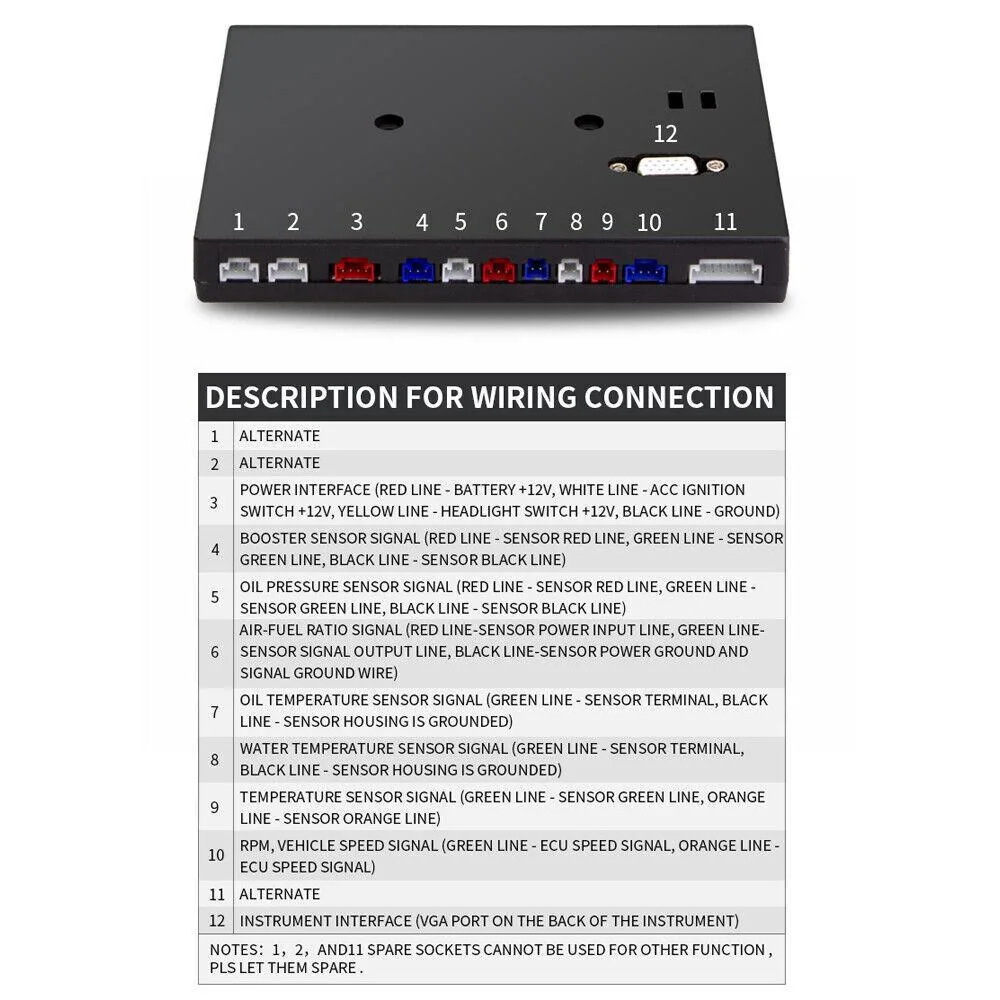

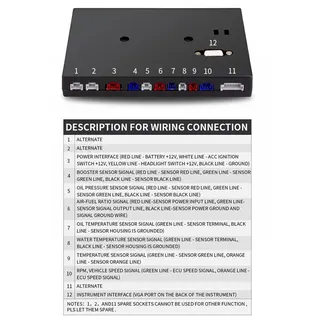

Wiring follows a universal layout so the kit bolts into a standard gauge opening without bespoke brackets. The main difficulties are routing the sensor looms for oil pressure, boost and exhaust temperature through the firewall and matching the speed pulse setting to the vehicle’s gearbox output. Incorrect pulse selection will show wrong speed and distance readings.

Pre-Order Checks

Verify the vehicle runs a 12 Volt electrical system within the 9V-16V operating window. Confirm the speed signal can be set to 2468 pulse or the free pulse range of 274 to 16562 pulse/km. Ensure the engine cylinder count is supported by the 1234568 loop and that sensor ports exist for oil pressure, boost, water temperature and exhaust temperature.

Highlights

  • 7 inch digital touch-screen gives clear race data at a glance
  • 12 000 RPM bar graph tracks engine speed up to the redline
  • Operates on 9 V to 16 V systems for universal 12 V fitment
  • Monitors ten parameters including boost, air/fuel ratio and temperatures
  • Speed reads 0–255 km/h or mph with configurable pulse settings

Specifications

TypeInstrument Clusters
Gauge TypeTachometer

Questions about this item

How do I confirm the RPM reading reaches the 12000MAX limit after installation?

Watch the digital RPM bar on the 7 inch display; it should sweep smoothly to 12000 rpm under full throttle and hold steady at the rev limiter.

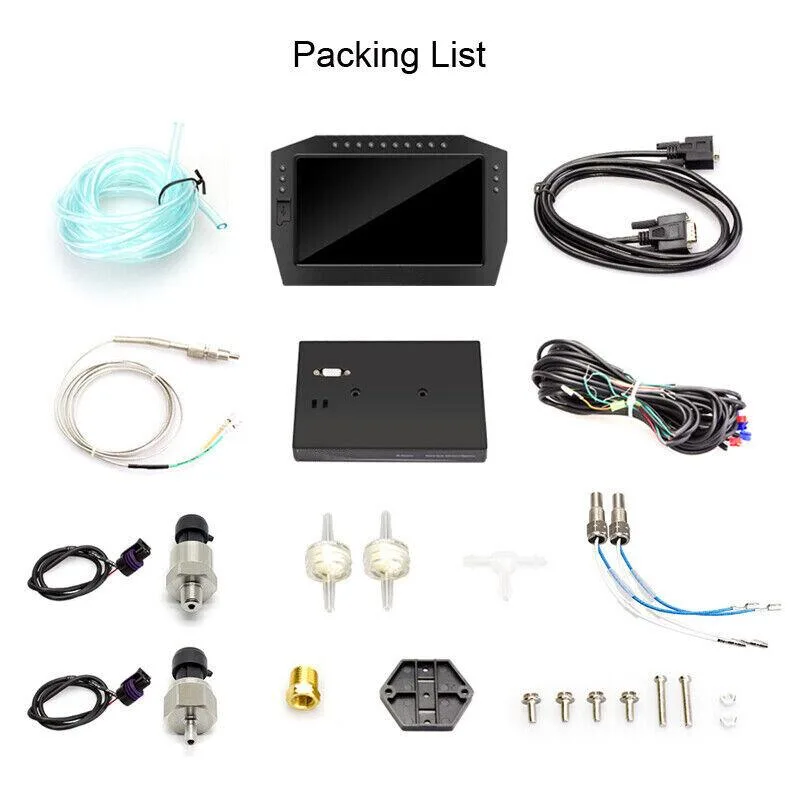

Which sensors are included in the full sensor kit and what must I purchase separately?

The kit supplies sensors for RPM, speed, air/fuel ratio, oil pressure, turbo boost, water temperature, voltage, oil temperature and external temperature; no additional sensors are required for those functions.

Which parameter ranges should I match to my engine when choosing this DO909 kit?

Select the kit if your engine runs 0-12000 rpm, 0-255 km/h or mph, oil pressure up to 150 PSI or 10 bar, boost from -15 to 45 PSI, air/fuel ratio 20-10:1, and temperatures up to 300 units.
