Stainless steel pneumatic ball valve with 115V AC solenoid actuator

Dynaquip Controls

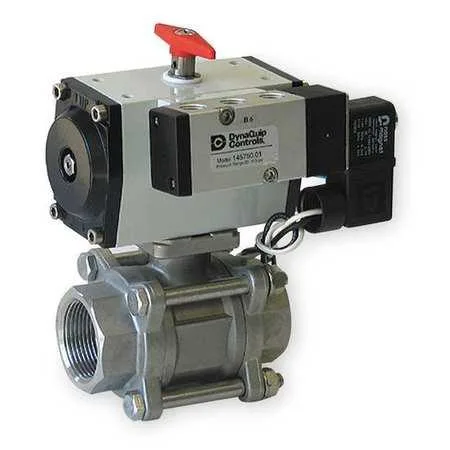

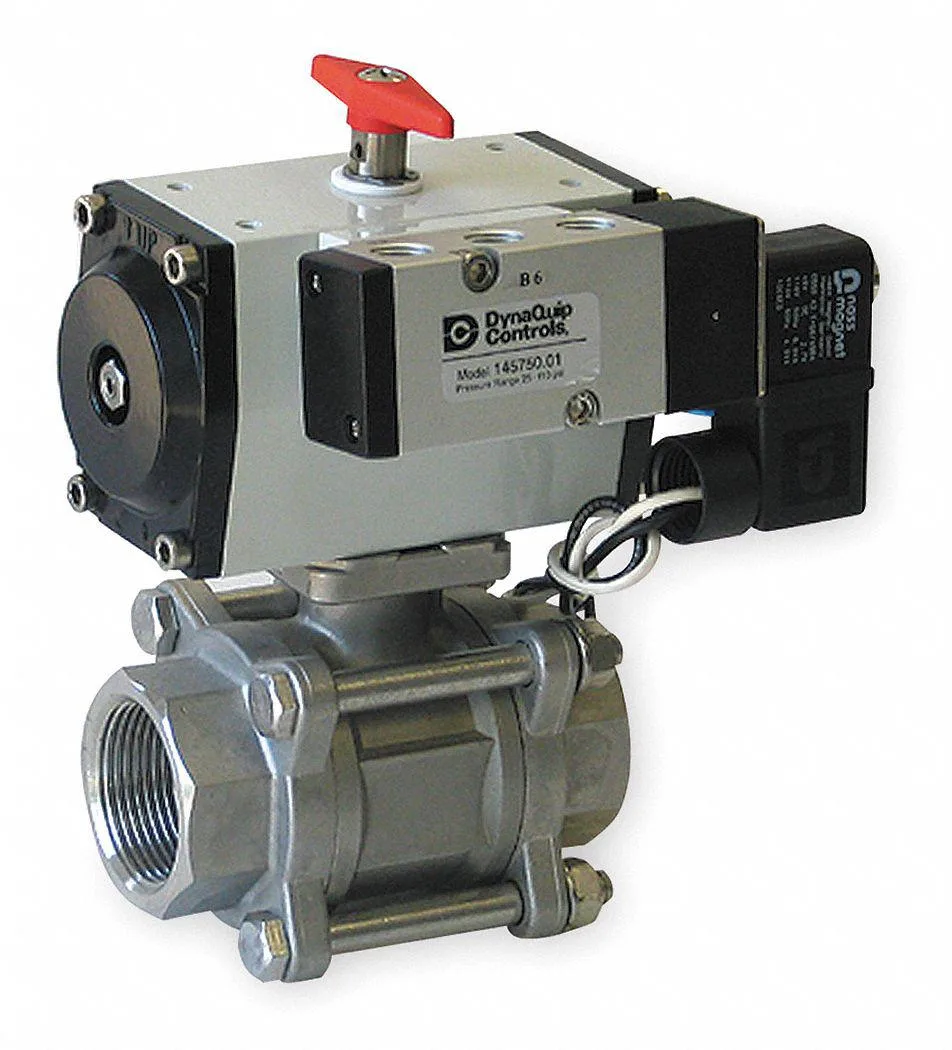

Dynaquip Controls PVS24AJS024A 3/4" 115V AC pneumatic ball trap

SKU CH-X8BZ-PVZ6D MPN PVS24AJS024A

Pneumatically actuated two-way ball valve with 115 V AC pilot solenoid, 316 stainless steel body and ball, full-port design rated to 1,000 psi operating and 150 psi steam pressure

  • TypeDrain Components
  • MaterialHAWA
  • Normally closed design prevents unintended flow
  • 115 V AC pilot solenoid enables direct control
  • Full-port 316 stainless steel ball allows unrestricted passage
  • Air-to-spring actuation with fail-closed safety
  • Rated for 1,000 psi operating and 150 psi steam

Pneumatically Actuated Ball Valve

The Dynaquip Controls PVS24AJS024A is a pneumatically actuated two-way ball valve designed for industrial fluid control systems. It features a 3/4 inch nominal valve size with FNPT connections and a straight body style constructed from stainless steel. The unit includes a 115V AC pilot solenoid for automated operation in process piping applications.

Sustained Pressure Performance

The valve body is rated for a maximum operating pressure of 1,000 psi and a maximum steam pressure of 150 psi. Its 316 stainless steel ball and full port design maintain flow integrity under continuous high-pressure service. The air-to-spring actuator ensures the valve returns to its normally closed fail-safe position reliably during extended duty cycles or air supply loss.

Pre-Installation Verification

Confirm the pipeline operates within the 1,000 psi pressure limit and that the media is compatible with 316 stainless steel and HAWA materials. Verify a stable 115V AC power supply is available for the included pilot solenoid. Ensure the piping layout accommodates the straight body style and that the normally closed fail-safe state matches your system safety requirements.

Highlights

  • Normally closed design prevents unintended flow
  • 115 V AC pilot solenoid enables direct control
  • Full-port 316 stainless steel ball allows unrestricted passage
  • Air-to-spring actuation with fail-closed safety
  • Rated for 1,000 psi operating and 150 psi steam

Specifications

TypeDrain Components
MaterialHAWA
BrandDynaquip Controls
ModelPVS24AJS024A

Questions about this item

Does the 115V AC pilot solenoid make the valve noisy or hot during continuous operation?

The 115V AC pilot solenoid actuates the valve pneumatically; the valve body itself has no motor or heater, so it runs silently and does not generate heat.

What compressed-air supply must I already have for the air-to-spring actuator to function?

You need a regulated compressed-air source piped to the actuator; the air pressure opens the valve and the internal spring closes it when air is removed.

Will the 316 stainless steel body and full-port ball work with my existing 3/4 inch FNPT piping rated for 1000 psi?

Yes, the valve has 3/4 inch FNPT ends, a full-port 316 stainless steel ball, and a 1000 psi operating pressure rating matching that piping class.
