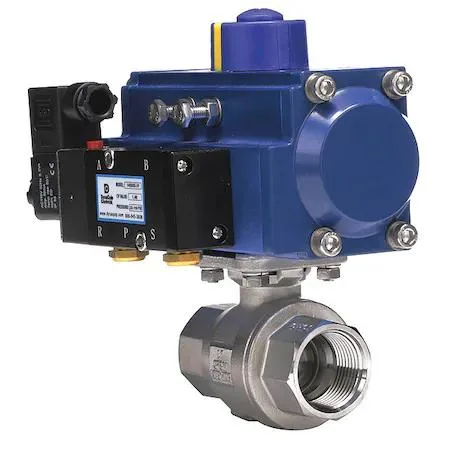

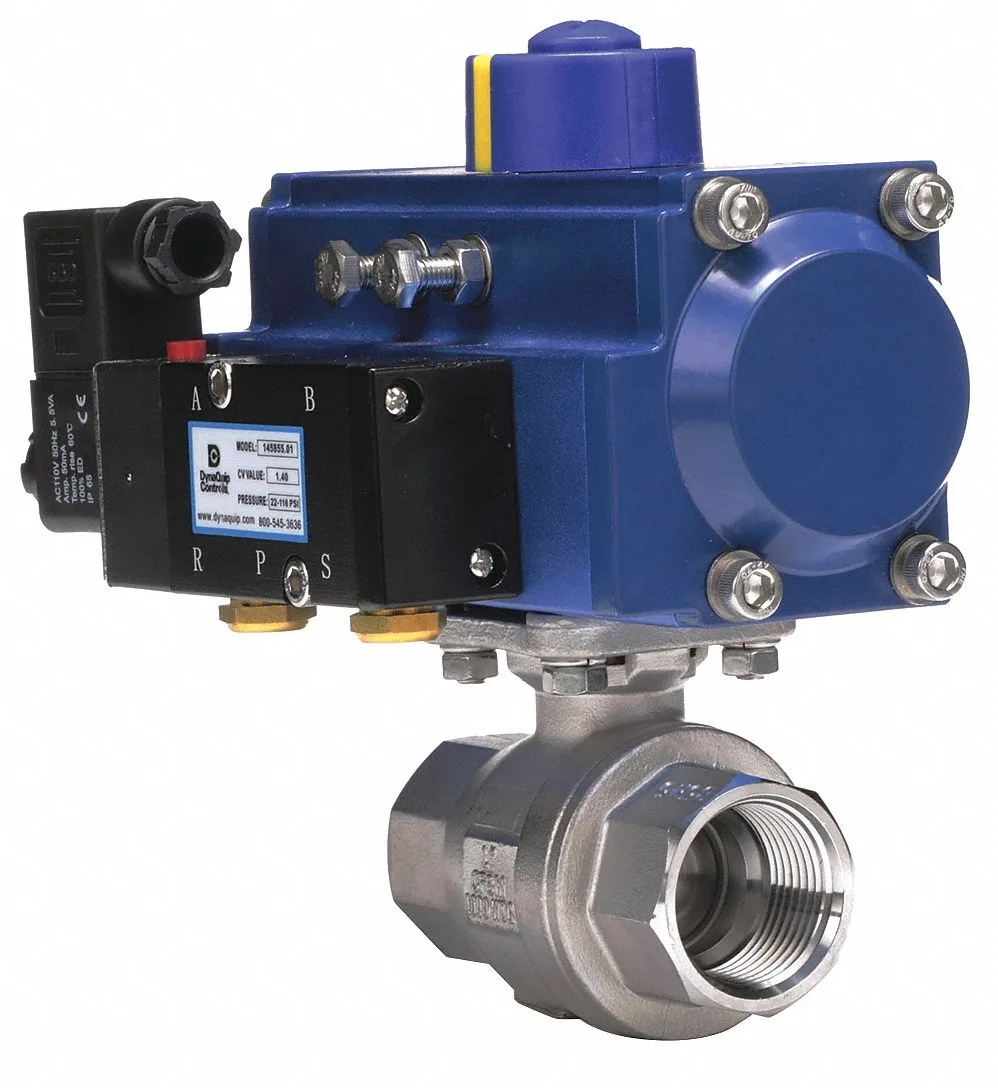

Dynaquip Controls PHS25AJD02A 115V AC Trap
115V AC pilot solenoid actuates a full-port 316 stainless steel ball valve rated to 1,000 psi operating pressure and 150 psi steam
- TypeDrain Components
- MaterialHAWA
- Full-port design maintains unrestricted flow
- 316 stainless steel ball resists corrosion
- 115 V AC pilot solenoid enables pneumatic control
- 1 000 psi operating pressure handles demanding systems
- 150 psi steam rating suits high-temperature lines
Pneumatic ball valve for 115 V AC control
This pneumatically actuated two-way ball valve uses a 115 V AC pilot solenoid to manage flow in process lines. The stainless steel body and 316 stainless steel ball suit industrial plumbing and chemical handling where corrosion resistance matters. It is built for operators who need reliable on/off control without manual intervention.
Sustained pressure handling up to 1 000 psi
The valve holds a maximum operating pressure of 1 000 psi and a steam rating of 150 psi, so it remains stable during continuous duty cycles. Full-port geometry keeps flow unrestricted while the air-to-air actuator maintains position without spring return forces. Fail-last behaviour means the valve holds its last state if supply air is lost.
Stainless steel construction with FNPT threads
The straight-pattern body uses FNPT connections for direct pipe threading, eliminating the need for extra flanges or adapters. Stainless steel throughout resists aggressive media and reduces maintenance intervals in harsh environments. The included 115 V AC pilot solenoid simplifies wiring for standard control panels.
Highlights
- Full-port design maintains unrestricted flow
- 316 stainless steel ball resists corrosion
- 115 V AC pilot solenoid enables pneumatic control
- 1 000 psi operating pressure handles demanding systems
- 150 psi steam rating suits high-temperature lines
Specifications
| Type | Drain Components |
|---|---|
| Material | HAWA |
| Brand | Dynaquip Controls |
| Model | PHS25AJD02A |
Questions about this item
How much compressed-air pressure does the pneumatic actuator need to operate the valve continuously?
The actuator runs on standard shop air up to the valve's 1,000 psi operating limit; the 115 V AC pilot solenoid only requires control voltage, not high-pressure air.
Which pipe threads and fittings must already be in place for the 1 in stainless-steel body to connect?
The valve has 1 in FNPT ends, so matching 1 in male NPT pipe or adapters are required before installation.
Will the 316 stainless ball and full-port design handle the same 150 psi steam service as older bronze valves?
Yes, the body is rated for 150 psi steam and the 316 stainless ball with full-port flow matches that pressure class.
