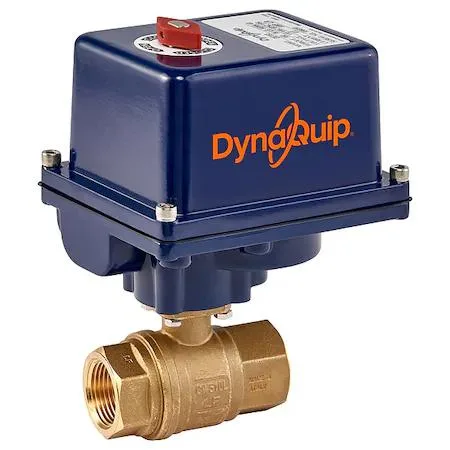

Electrically actuated ball valve, chrome-plated brass, IP66 actuator, manual override, position indicator

Dynaquip Controls

Dynaquip Controls Electrically Actuated Ball Valve HAWA EHG27ATE25

SKU CH-N51S-PV715

Electrically actuated two-way ball valve with IP66-rated actuator, 120V AC operation, 600 psi pressure rating, manual override and thermal overload protection

  • MaterialHAWA
  • Weight10.3
  • Electrically actuated for automated flow control
  • 120V AC operation with IP66-rated enclosure
  • 600 psi maximum operating pressure for demanding systems
  • 6-second 90-degree cycle time with manual override
  • PTFE and RPTFE seats with FKM seals for chemical resistance

Electrically Actuated Two-Way Ball Valve

The Dynaquip Controls HAWA EHG27ATE25 is an electrically actuated two-way ball valve designed for industrial fluid control systems. It operates on 120V AC power and features a fail-last safety position that maintains the current state during power loss. The unit carries an IP66 rating for protection against dust and water ingress.

Straightforward Mounting with Manual Override

The two-piece valve body uses 1-1/2 inch FNPT connections for direct pipeline installation. A manual override allows local operation during commissioning or power outages, while a visual position indicator confirms valve status. Thermal overload protection safeguards the actuator motor during extended duty cycles.

600 psi Service with 6-Second Cycle

Chrome-plated brass ball and RPTFE seats handle operating pressures up to 600 psi in compatible media. The 90-degree actuator stroke completes in approximately 6 seconds, suitable for on-off and basic modulating duties. Seal materials include PTFE, RPTFE and FKM for chemical compatibility within the specified pressure range.

Highlights

  • Electrically actuated for automated flow control
  • 120V AC operation with IP66-rated enclosure
  • 600 psi maximum operating pressure for demanding systems
  • 6-second 90-degree cycle time with manual override
  • PTFE and RPTFE seats with FKM seals for chemical resistance

Specifications

MaterialHAWA
Weight10.3
BrandDYNAQUIP CONTROLS

Questions about this item

How can I confirm the valve is operating correctly after wiring the 120V AC supply?

The position indicator shows the ball’s angle, and the actuator completes its 90-degree stroke in 6 seconds when power is applied.

What comes in the box and what must I source separately for installation?

The valve body with integrated actuator, manual override lever and thermal overload protection are included; piping, thread sealant and 120V AC wiring are not.

Which configuration matches the HAWA EHG27ATE25 model code?

The code specifies a 1-1/2 in FNPT two-piece valve, 600 psi rating, chrome-plated brass ball, RPTFE seats, PTFE/FKM seals, IP66 enclosure and fail-last operation.
