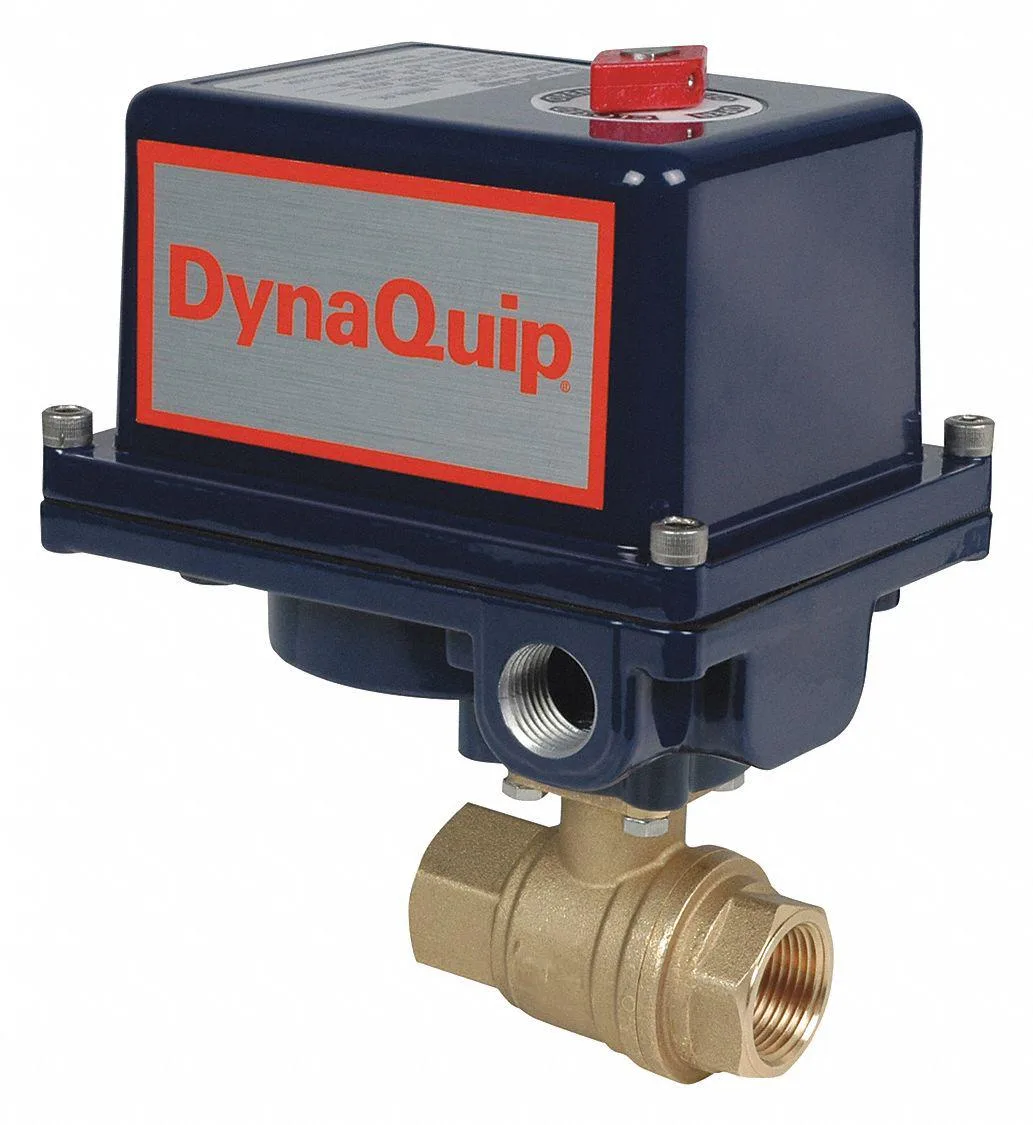

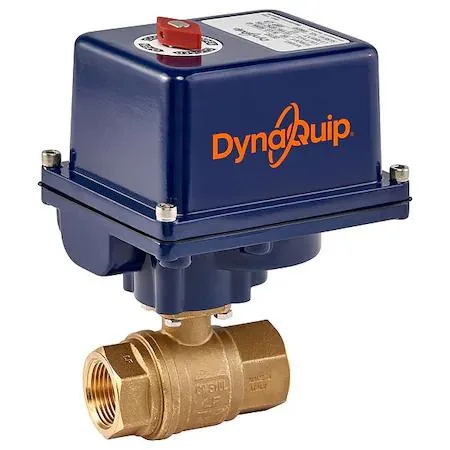

Brass electronic ball valve with compact actuator, silver metallic finish, female threaded ends

Dynaquip Controls

Dynaquip Controls EHH24ATE20H 3/4" FNPT Brass Electronic Ball Valve 2-Way 12-24V AC/DC IP66

SKU CH-ZNCY-THXZT MPN EHH24ATE20H

Controls fluid flow with a chrome-plated brass ball, 600 psi rating, 12-24V AC/DC actuator, 2.5-second cycle, IP66 protection

  • TypeDrain Components
  • MaterialHAWA
  • ColorTransparent
  • Electrically actuated two-way flow control
  • Chrome-plated brass ball resists corrosion
  • 12-24V AC/DC suits varied power sources
  • IP66 enclosure protects against dust and water
  • 5 second 90-degree cycle enables fast response

Product identity

This is a 3/4 inch FNPT brass electronic ball valve with a two-way flow path. It suits installers who need automated on/off control in piping systems running up to 600 psi.

Build and connections

The two-piece brass body uses RPTFE seats with PTFE and FKM seals for chemical resistance. Female NPT threads allow direct connection to standard pipe fittings without extra adapters. An IP66-rated actuator includes a heater, position indicator and thermal overload protection for outdoor or wash-down environments.

Voltage and timing limits

The actuator operates on 12 to 24 V AC or DC and completes a 90 degree stroke in 2.5 seconds. Fail-last behaviour means the valve holds its position if power is lost, so systems requiring spring-return action will need a different solution.

Highlights

  • Electrically actuated two-way flow control
  • Chrome-plated brass ball resists corrosion
  • 12-24V AC/DC suits varied power sources
  • IP66 enclosure protects against dust and water
  • 5 second 90-degree cycle enables fast response

Specifications

TypeDrain Components
MaterialHAWA
ColorTransparent
BrandDynaquip Controls
ModelEHH24ATE20H

Questions about this item

What does the IP66 rating on this valve protect against?

IP66 means the actuator enclosure is dust-tight and protected against powerful water jets, suitable for wash-down or outdoor installations.

What pipe thread does the 3/4" FNPT connection require?

The valve has a 3/4-inch female National Pipe Taper thread; it mates with a matching 3/4-inch male NPT pipe or fitting.

How is the actuator wired for 12-24 V AC/DC supply?

Connect the supply leads to the actuator terminals observing polarity for DC; the built-in heater and thermal overload protection operate automatically once powered.
