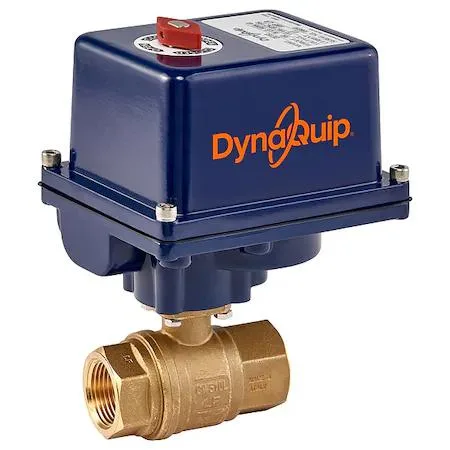

Brass electronic ball valve with actuator, 3/4 inch FNPT, 24V AC

Dynaquip Controls

Dynaquip Controls EHG24ATE20H 3/4" FNPT Brass Electronic Ball Valve 2-Way 24V AC

SKU CH-R7DJ-SVNH1

Electrically actuated 3/4" brass ball valve with 24V AC operation, IP66 rating, 600 psi pressure rating, and 2.5-second cycle time

  • TypeHVACR and Appliance Controls
  • IP66 rating protects against dust and water jets
  • 24V AC power enables low-voltage system integration
  • 5 second cycle time provides fast actuation response
  • 600 psi pressure rating handles demanding applications
  • Heater and thermal overload protection ensure reliable operation

Dynaquip 3/4" Brass Electronic Ball Valve

The Dynaquip Controls EHG24ATE20H is a two-way electrically actuated ball valve with a chrome-plated brass ball and straight two-piece body. It suits HVACR and appliance-control circuits that require on-off flow control with a 24 V AC supply. Installers needing IP66-rated actuation and a fail-last position will find the specification aligned with those requirements.

Installation notes and common issues

The actuator rotates 90 degrees in 2.5 seconds and includes a heater, position indicator and thermal overload protection. Wiring must match the 24 V AC rating and the IP66 enclosure demands proper gland sealing to maintain ingress protection. Miswiring the supply voltage or leaving cable entries unsealed are the typical causes of early failure.

Compatibility checks before ordering

Confirm the pipeline uses 3/4 inch female NPT threads and that the system pressure does not exceed 600 psi. Verify the media is compatible with RPTFE, PTFE and FKM seat and seal materials. Ensure the control circuit can provide 24 V AC and that the straight valve body fits the available piping layout.

Highlights

  • IP66 rating protects against dust and water jets
  • 24V AC power enables low-voltage system integration
  • 5 second cycle time provides fast actuation response
  • 600 psi pressure rating handles demanding applications
  • Heater and thermal overload protection ensure reliable operation

Specifications

BrandDYNAQUIP CONTROLS
TypeHVACR and Appliance Controls

Questions about this item

How can I verify the valve is actuating correctly after installation?

Watch the position indicator move through the full 90-degree rotation and confirm the actuator completes the cycle in about 2.5 seconds.

What comes in the box and what must I supply separately?

The valve body with integrated actuator and heater are included; you must provide 24V AC power wiring and compatible 3/4-inch FNPT piping.

Which voltage version should I select for a 24V AC control circuit?

This model operates on 24V AC, matching your control circuit voltage.
