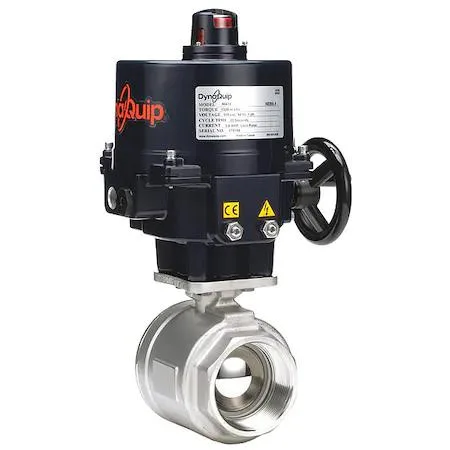

Stainless steel 3-inch 2-way ball valve with electric actuator

Dynaquip Controls

Dynaquip Controls 3 in 115V AC 2-way ball valve trap

SKU CH-J59W-BBG97

Electrically actuated two-way ball valve with 316 stainless steel ball, PTFE seats, 115V AC operation, IP66 rating, and 26-second cycle time

  • ColorTransparent
  • Electrically actuated for remote flow control
  • 316 stainless steel ball resists corrosion
  • PTFE and FKM seals handle 1,000 psi
  • IP66 rating protects against dust and water
  • Manual override and position indicator simplify maintenance

Electrically actuated ball valve for fluid control

This electrically actuated two-way ball valve uses a 316 stainless steel ball and PTFE, RPTFE and FKM seals to manage flow in industrial piping. It operates on 115V AC power and carries an IP66 rating for dust and water ingress protection. The two-piece body design suits straight-through installations with 3-inch female NPT connections.

3-inch nominal size with 1,000 psi operating

The 3-inch nominal bore provides ample flow capacity for water, oil and compatible chemical lines rated up to 1,000 psi. PTFE and FKM seat materials resist a broad range of media but will degrade with aggressive solvents or sustained temperatures beyond their limits. The valve is not suited for steam service or applications requiring fire-safe certification.

IP66 enclosure with 26-second cycle and manual

The IP66-rated actuator completes a 90-degree stroke in 26 seconds and holds its last position on power loss. Auxiliary limit switches and a visual position indicator simplify monitoring, while the manual override allows local operation during commissioning or outages. Power draw is limited to the actuator motor during cycling.

Highlights

  • Electrically actuated for remote flow control
  • 316 stainless steel ball resists corrosion
  • PTFE and FKM seals handle 1,000 psi
  • IP66 rating protects against dust and water
  • Manual override and position indicator simplify maintenance

Specifications

ColorTransparent
BrandDYNAQUIP CONTROLS

Questions about this item

Will the 115V AC actuator work with my existing 115V control circuit?

Yes, the valve is rated for 115V AC supply and draws power directly from that circuit for the electric actuator.

How can I verify the valve is cycling correctly after wiring it up?

The actuator includes a visual position indicator and auxiliary limit switches that confirm the 90-degree open or closed state.

Does the package include the 3-inch FNPT mating flanges or pipe fittings?

The valve body has 3-inch FNPT female connections; pipe nipples or flanges must be sourced separately.
