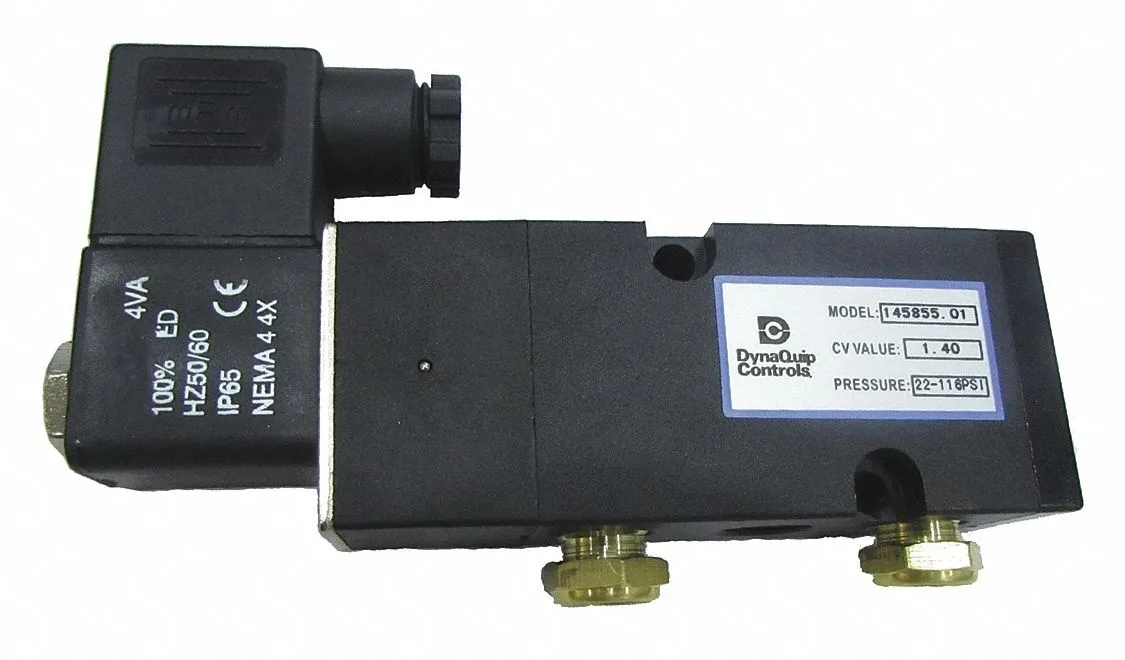

Compact brass solenoid pilot valve with 24VAC coil

Dynaquip Controls

Dynaquip Controls 145855.02 Solenoid Pilot Valve 24VAC accessory

SKU CH-CJ8S-76QG2

24 VAC solenoid pilot valve fits DynaQuip, Milwaukee Valve, Sharpe and VNE actuators and matches numerous Grainger item numbers

  • MaterialHAWA
  • Solenoid pilot valve operates on 24VAC power
  • Compatible with DynaQuip Controls, Milwaukee Valve, Sharpe and VNE brands
  • Fits Grainger items 1AWP8 through 1AWR9 and 22C626 through 22C641
  • Also fits Grainger items 4TL05 through 4TL12, 4YM64 through 4YM67 and 6CX04 through 6CX15
  • Constructed from HAWA material for durability

24 VAC Solenoid Pilot Valve

The Dynaquip Controls 145855.02 is a new solenoid pilot valve designed for 24 VAC control circuits. It fits DynaQuip Controls, Milwaukee Valve, Sharpe and VNE branded valve bodies. Installers use it to automate fluid flow in commercial plumbing and HVAC systems.

HAWA Material Construction

The valve body uses HAWA material specified by the manufacturer for corrosion resistance. This construction supports reliable actuation during extended duty cycles in water and air lines. The design maintains sealing integrity when the coil remains energised for long periods.

Replaces Worn Pilot Operators

This unit replaces a failed or leaking pilot valve on compatible actuators listed by Grainger item numbers. The upgrade is worth it when the existing coil no longer shifts the main valve or shows signs of seat erosion. Buyers needing a different voltage or pipe connection cannot use this model.

Highlights

  • Solenoid pilot valve operates on 24VAC power
  • Compatible with DynaQuip Controls, Milwaukee Valve, Sharpe and VNE brands
  • Fits Grainger items 1AWP8 through 1AWR9 and 22C626 through 22C641
  • Also fits Grainger items 4TL05 through 4TL12, 4YM64 through 4YM67 and 6CX04 through 6CX15
  • Constructed from HAWA material for durability

Specifications

MaterialHAWA
BrandDYNAQUIP CONTROLS

Questions about this item

Does the 24VAC solenoid pilot valve run hot or make noise during continuous duty?

The 24VAC coil is designed for standard pilot-valve operation; typical solenoid pilots of this type run cool and silent when energised all day.

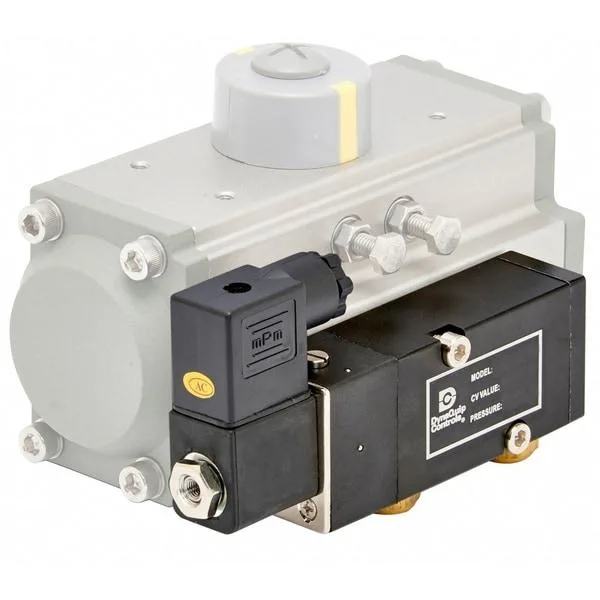

Which actuator or valve body must I already own for the 145855.02 to mount and function?

It fits DynaQuip Controls, Milwaukee Valve, Sharpe and VNE actuator series that accept the listed Grainger item numbers such as 1AWP8, 1AWP9 and the 1AWR1 through 1AWR9 range.

Will this 24VAC pilot valve work with my older DynaQuip or Milwaukee valve bodies still in service?

Yes, the pilot valve is compatible with the legacy DynaQuip Controls, Milwaukee Valve, Sharpe and VNE bodies identified by the Grainger cross-reference numbers 22C626 through 22C641 and 4TL05 through 4TL12.
