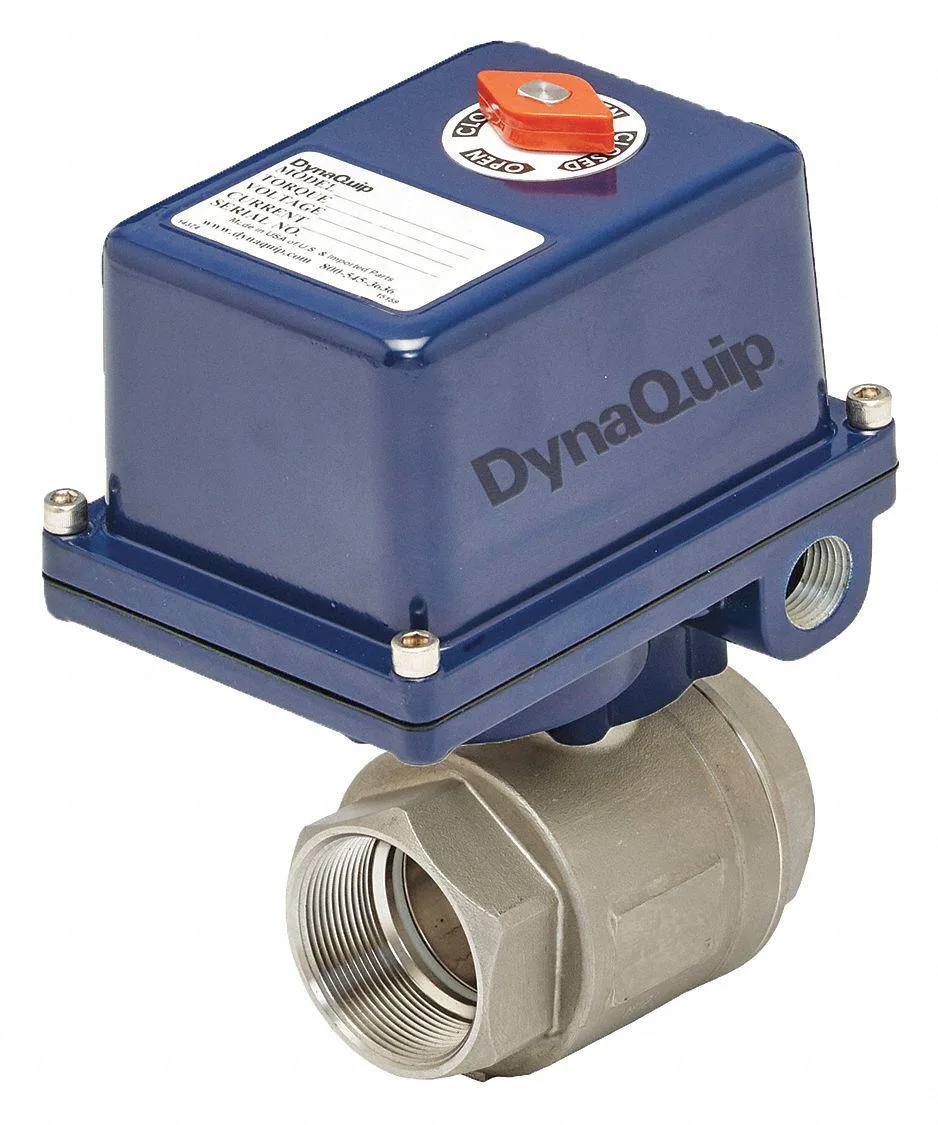

Stainless steel electronic ball valve with compact actuator housing IP66 rating

Dynaquip Controls

Dynaquip Controls 1/2" FNPT Stainless Steel Electronic Ball Valve 12V 24V IP66

SKU CH-YN5A-9NCNC

Electrically actuated two-way ball valve with 316 stainless steel ball, PTFE seats, 12V DC or 24V AC/DC operation, IP66 rating, 90-degree rotation in 2.5 seconds, heater.

  • MaterialHAWA
  • ColorTransparent
  • Stainless-steel ball resists corrosion for long service life
  • 12 V and 24 V supply options suit varied power sources
  • IP66 enclosure protects actuator from dust and water jets
  • Fast 2.5-second cycle speeds automated flow control
  • Heater and thermal overload guard extend actuator reliability

1/2″ FNPT Stainless Steel Electronic Ball Valve

The Dynaquip Controls valve provides electrically actuated on/off control for fluid lines. Its 316 stainless steel ball and PTFE seats handle corrosive media at up to 1,000 psi operating pressure. The unit runs on 12 V DC or 24 V AC/DC and carries an IP66 rating for harsh environments. Fail-last behaviour holds position during power loss.

Replaces manual or air-piloted valves

Swapping a hand lever or pneumatic actuator for this electric unit removes the need for compressed air lines and allows remote or automated operation. The 90-degree turn completes in 2.5 seconds, making the jump worthwhile when cycle speed and integration with 12 V or 24 V control systems matter. A built-in heater and thermal overload protection extend service life in cold or high-cycle applications.

Check voltage, pressure

Confirm your supply matches 12 V DC or 24 V AC/DC and that system pressure stays within the 1,000 psi limit. The valve uses 1/2 inch FNPT threads on a straight two-piece body, so verify mating fittings and available installation space. Ensure the fail-last safety behaviour aligns with your process requirements.

Highlights

  • Stainless-steel ball resists corrosion for long service life
  • 12 V and 24 V supply options suit varied power sources
  • IP66 enclosure protects actuator from dust and water jets
  • Fast 2.5-second cycle speeds automated flow control
  • Heater and thermal overload guard extend actuator reliability

Specifications

MaterialHAWA
ColorTransparent
BrandDYNAQUIP CONTROLS

Questions about this item

What size pipe thread does the 1/2" FNPT valve connect to?

The valve uses a 1/2 inch female NPT thread for direct connection to matching male pipe fittings.

How is the actuator wired for 12V DC or 24V AC/DC supply?

Connect the supplied voltage to the actuator terminals; the unit operates on 12V DC or 24V AC/DC and completes a 90 degree stroke in 2.5 seconds.

When should the PTFE and FKM seals be inspected or replaced?

Inspect the PTFE seats and FKM seals during routine system maintenance; replace them if leakage appears or after extended high-cycle service.
