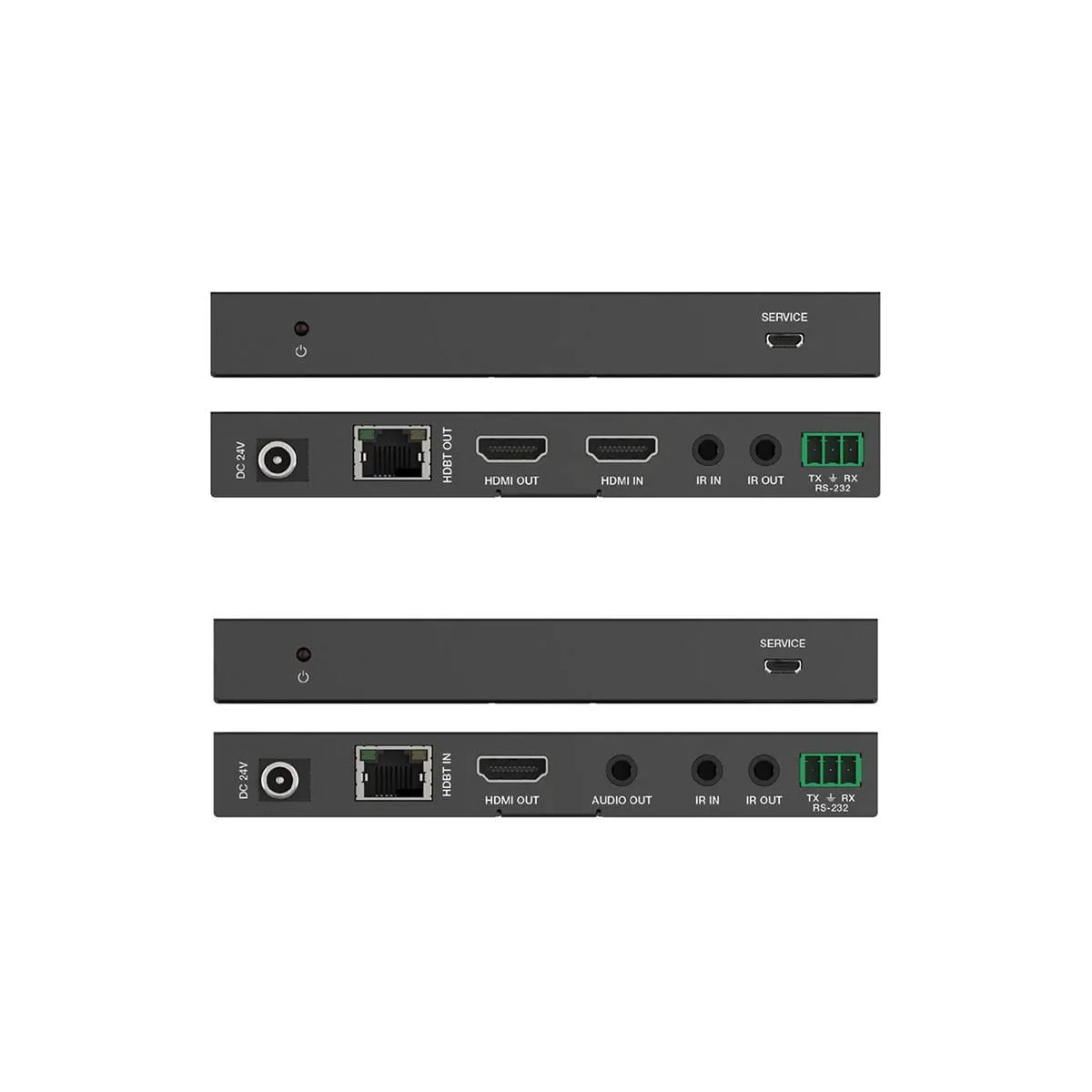

Two compact black boxes with HDMI ports and a Cat cable link

DVDO, Inc.

DVDO, Inc. 4K60 HDMI Extender HDBaseT 492.12' KVM Switch

SKU CH-M2W9-Q9FD1

Extends 4K60 HDMI, IR, RS-232 and audio up to 492.12 ft over a single Cat cable with HDMI loop-out and PoC power

  • 18Gbps bandwidth delivers 4K60 4:4:4 HDR video
  • HDBaseT extends 1080p signals up to 492ft over one Cat cable
  • HDMI loop output on transmitter enables local monitoring
  • Analog stereo de-embedding on receiver for external audio
  • Bi-directional IR, RS-232 and CEC pass-through for full control

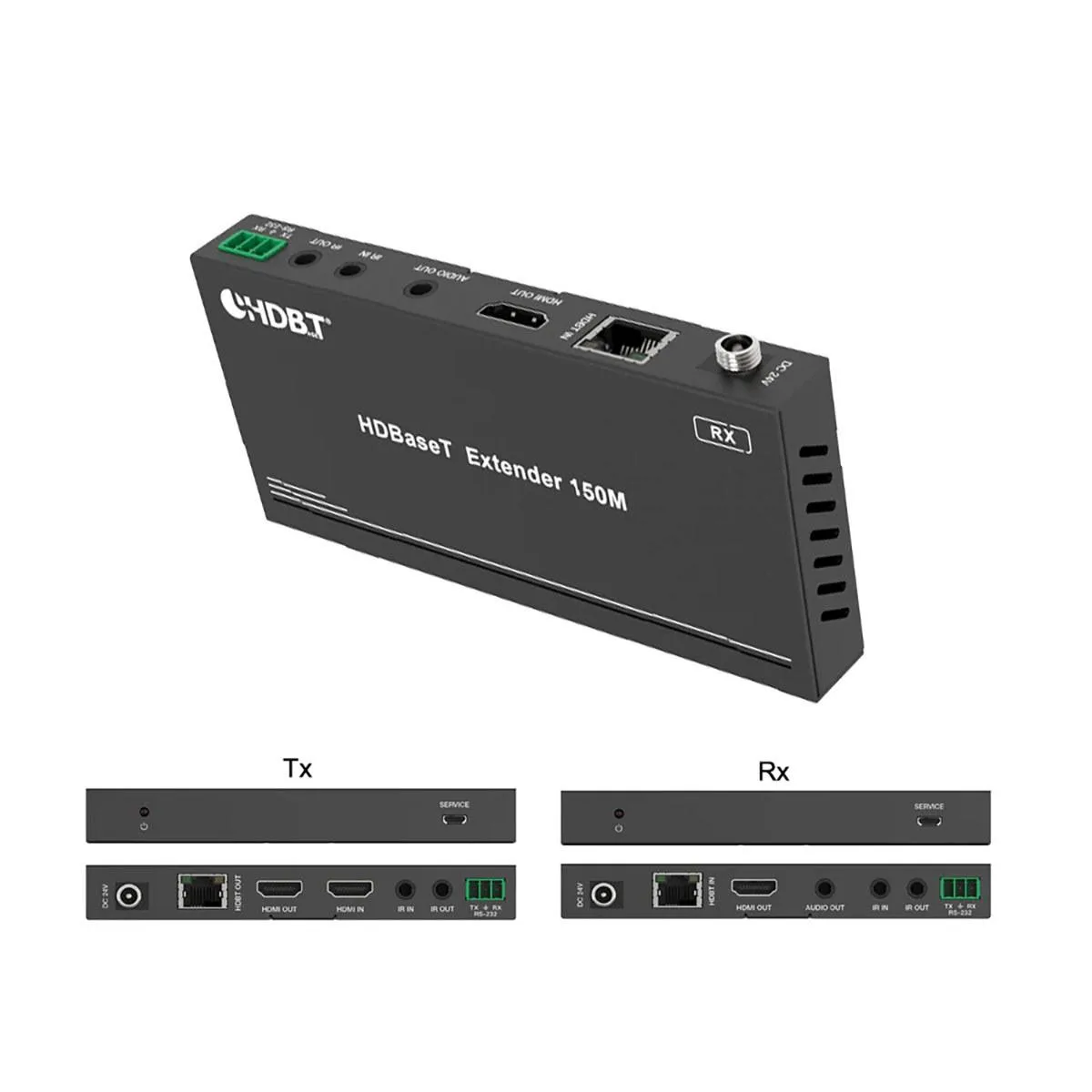

4K60 HDBaseT KVM Extender

This HDMI 2.0b extender set carries 18Gbps video, bi-directional IR, RS-232 and CEC signals up to 150m over a single Cat5e/6 cable. It supports 4K2K at 60Hz 4:4:4 with HDR, HDR10+, Dolby Vision and HLG. HDCP 2.2 and 1.4 compliance protects premium content. The transmitter includes an HDMI loop output for a local display. PoC delivers power to the receiver through the same cable.

Build integration and signal reach

A single Cat5e/6 run replaces bulky HDMI cables and covers distances up to 492ft for 1080p or 150m for 4K60. The transmitter needs a local HDMI source and optional loop-through monitor. The receiver provides the remote HDMI output plus analog stereo de-embedding for external speakers. RS-232 and two-way IR let control systems manage both source and display from either end. No separate power supply is required at the receiver when PoC is active.

Bundled accessories and software impact

The package includes the transmitter and receiver units ready for immediate pairing. IR emitters and receivers enable bi-directional remote control without extra wiring. RS-232 cables allow integration with automation processors or touch panels. CEC pass-through lets a single remote command both source and display. PoC eliminates a wall outlet at the far end, reducing installation time and cable count in conference rooms, classrooms, digital signage and residential setups.

Highlights

  • 18Gbps bandwidth delivers 4K60 4:4:4 HDR video
  • HDBaseT extends 1080p signals up to 492ft over one Cat cable
  • HDMI loop output on transmitter enables local monitoring
  • Analog stereo de-embedding on receiver for external audio
  • Bi-directional IR, RS-232 and CEC pass-through for full control

Specifications

No published specifications for this item yet.

Questions about this item

What happens to the 18Gbps video bandwidth over a 150m Cat5e run?

At 150 metres the extender supports 1080p signals; 4K60 4:4:4 requires a shorter cable.

Does the receiver need its own power supply for all-day operation?

PoC delivers power over the same Cat cable, so only the transmitter needs a mains connection.

Which cables and displays must I already have to use HDCP 2.2 and 4K60?

HDMI 2.0b cables, an HDCP 2.2 source and a 4K60 display with HDCP 2.2 support are required.
