Duchow KD-DC03 12-24V DC Dimmer Switch Control

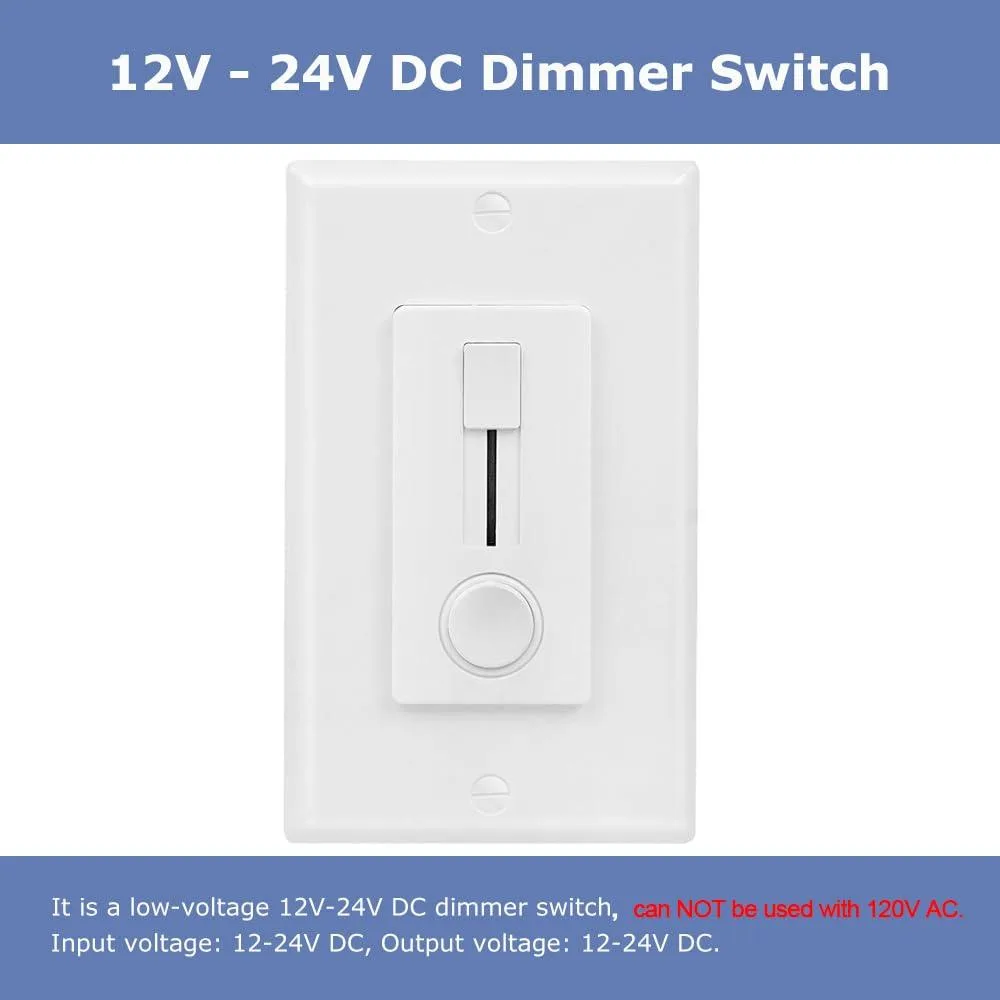

A 12-24V DC PWM dimmer with rocker switch and slider for single-colour LED strips, IP40 rated, 10A max, includes wall plate
- Type12-24v DC Dimmer Switch for Led Strip Lights
- Switch FunctionON-OFF-ON
- Voltage24 volts
- Housing MaterialPolycarbonate
- Mounting StyleWall Mount
- Size/Dimensions4.191 cm x 7.1882 cm x 11.811 cm
- Smooth 5-100% PWM dimming with no flicker or hum
- Large paddle switch for instant on/off and preset level
- Fits standard electrical boxes with screws and wall plate included
- Rated IP40 and ETL certified for indoor safety
- Handles up to 10 A output on 12-24 V DC circuits
Application & User Fit
The Duchow KD-DC03 is a 12-24V DC dimmer switch designed for single-colour LED strip lights. It suits installers and DIY users who need a wall-mounted slider and paddle control for low-voltage lighting circuits. The IP40-rated polycarbonate housing and ETL certification support indoor installations where a standard electrical box is available. It is not for buyers who require AC mains dimming or multi-channel colour mixing.
Upgrade Context
This unit replaces basic on-off switches or inline dimmers that lack a wall-plate form factor and smooth PWM control. The jump is worth it when a project demands 5-100% flicker-free dimming, a preset rocker paddle and a slider that cannot fully extinguish the load. It does not suit circuits that need a slider-to-off function or built-in voltage conversion for 120V AC wiring.
Sustained Load Behaviour
Under continuous operation the dimmer delivers up to 10A per channel while maintaining silent, flicker-free output across the 0-45°C operating range. The PWM circuitry holds a stable 12-24V DC output without audible humming during extended dimming sessions. The slider holds the minimum brightness level rather than switching off, so the paddle must be used for a hard off state during long-term use.
Highlights
- Smooth 5-100% PWM dimming with no flicker or hum
- Large paddle switch for instant on/off and preset level
- Fits standard electrical boxes with screws and wall plate included
- Rated IP40 and ETL certified for indoor safety
- Handles up to 10 A output on 12-24 V DC circuits

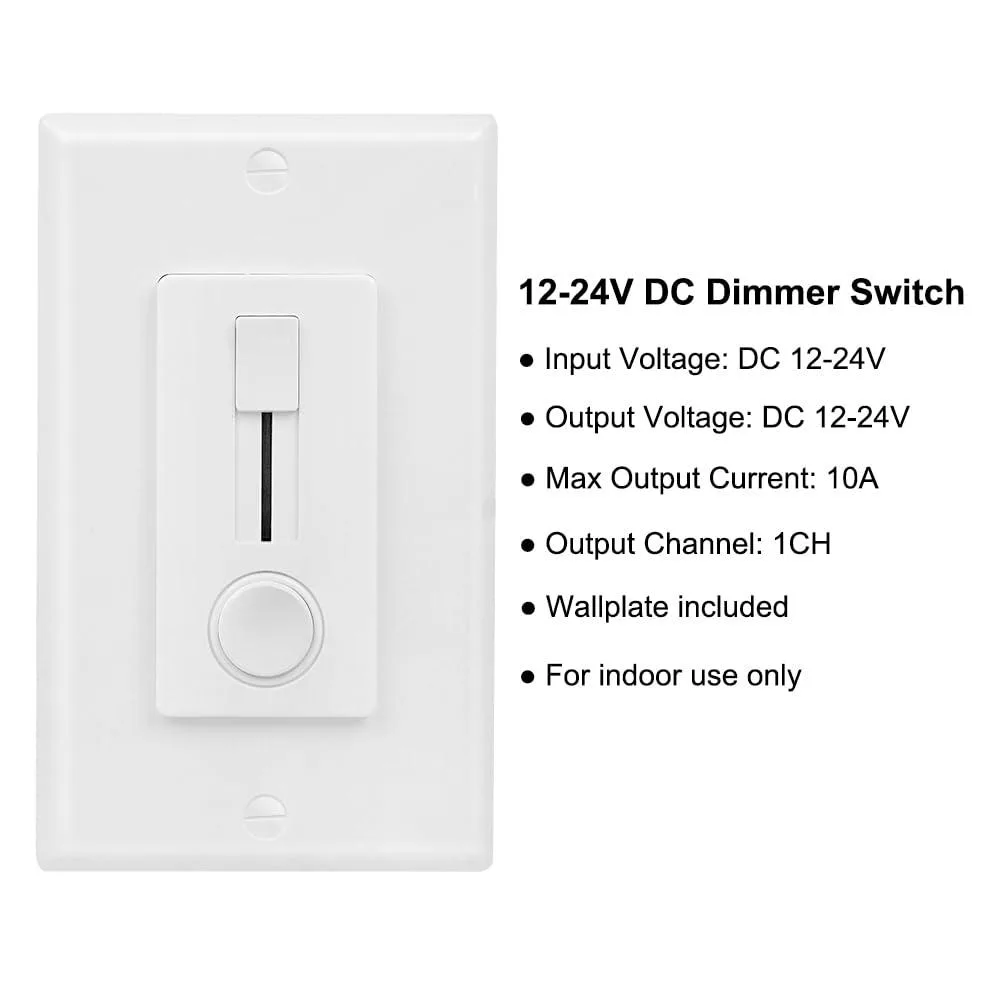

Specifications
| Type | 12-24v DC Dimmer Switch for Led Strip Lights |
|---|---|
| Brand | Duchow |
| Switch Function | ON-OFF-ON |
| Model | KD-DC03 |
| Voltage | 24 volts |
| Housing Material | Polycarbonate |
| Mounting Style | Wall Mount |
| Size/Dimensions | 4.191 cm x 7.1882 cm x 11.811 cm |
| Material | Polycarbonate |
| Standards/Certifications | IP40, ETL |
| Horsepower | 10 amps |
| Operating Temperature | 0 degrees_celsius to 45 degrees_celsius |
| Color/Finish | White |
| Operating Frequency | not_applicable |
| Duty | LED Strip Lights |
| Compatibility/Fitment | LED Strip Lights |
| Resolution | 1 |
| Display Type | KD-DC03 |
| Color Display | White |
| Features | LED Strip Lights |
| Part Number | KD-DC03 |
Questions about this item
What wall-box depth does the 4.191 cm deep dimmer need?
It fits a standard electrical box; screws and a white wall plate are included for wall-mount installation.
How do the two controls wire and operate together?
Connect DC 12-24V supply to the input terminals and the LED strip to the output; the large rocker paddle switches power on/off while the slider adjusts brightness from 5% to 100%.
When should the 10 A rated unit be replaced?
Replace it if the slider no longer dims smoothly, the paddle fails to cut power, or the housing shows heat damage after prolonged indoor use up to 45 °C.
