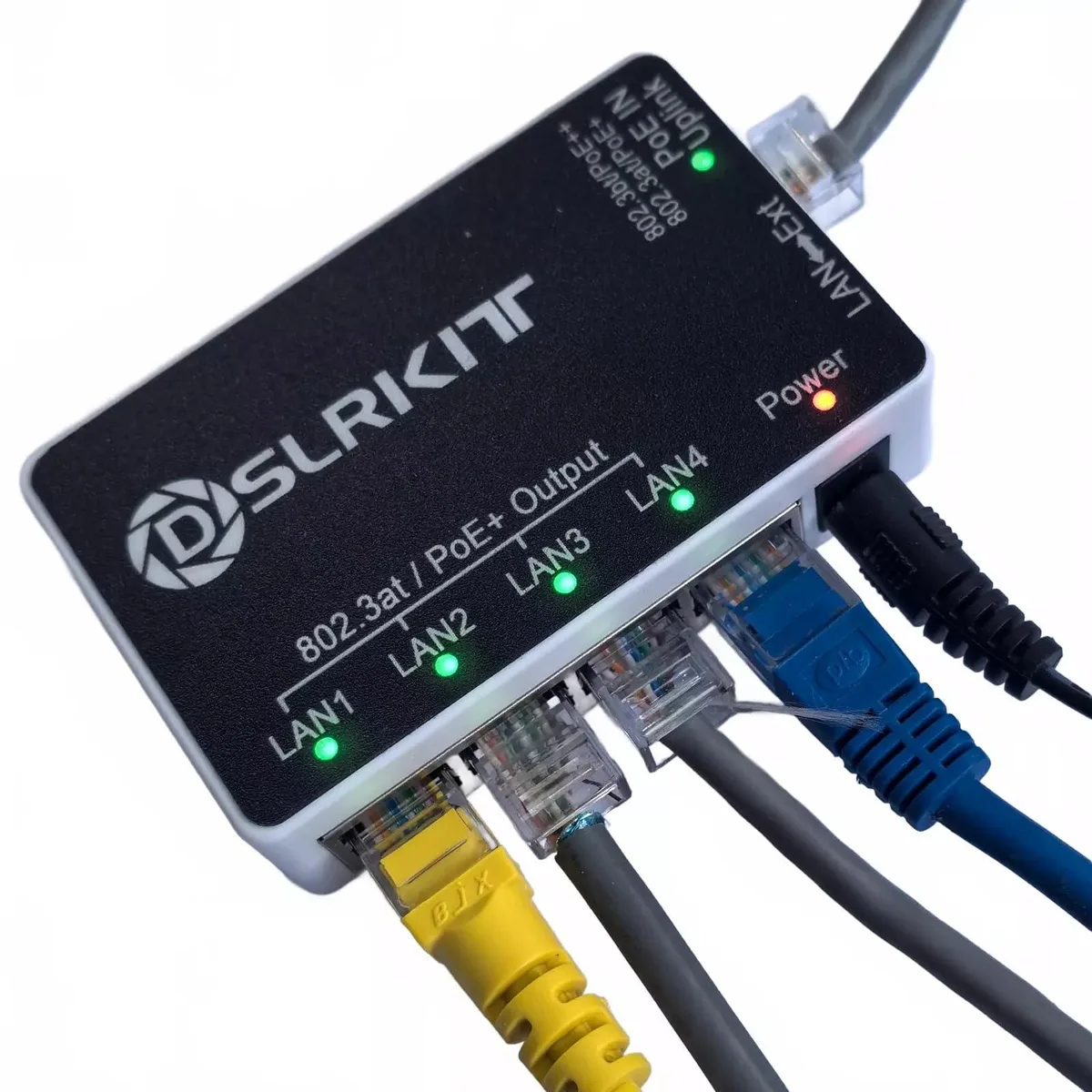

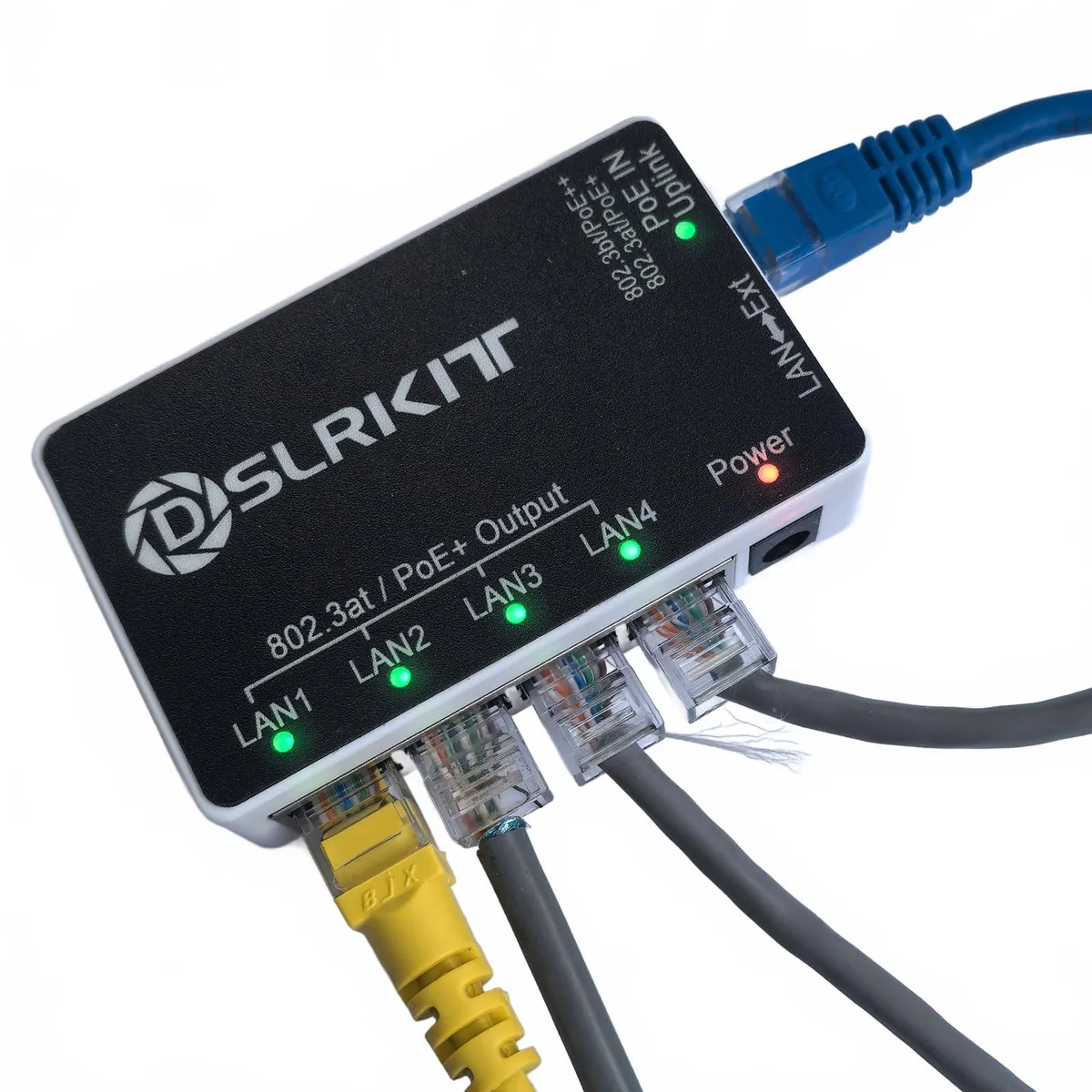

Small black network switch with five PoE ports and DC power input

DSLRKIT PSE14GBT 90W 5-Port Gigabit PoE Passthrough Switch

SKU CH-7F78-X2KSH

Five-port gigabit PoE passthrough switch extends power and data up to 250 metres with 90 W input and 72 W total output

  • StandardsPassive PoE
  • Network MediaPoE
  • Network Management Type5-port Gigabit PoE Passthrough Switch x1
  • Uplink InterfacePoE
  • Uplink SpeedPoE
  • Uplink Speed/TypePoE
  • Powered by PoE input, no local power supply needed
  • 90W PoE++ input delivers up to 72W total output on four ports
  • Extended mode reaches 250 metres at 10 Mbps per port
  • LAN mode provides 1000 Mbps over 100 metre cable runs
  • Accepts DC 12V-57V input for flexible deployment options

PoE Passthrough Switch for IP Cameras

The DSLRKIT PSE14GBT is a 5-port Gigabit switch powered entirely by an upstream PoE connection. It suits installers who need to extend network and power to multiple IP cameras or access points without running separate mains cables to each location.

Sustained Load Behaviour and Power Budget

With an 802.3bt uplink delivering 90W, the four downstream ports share a 72W PoE+ budget. An 802.3at uplink of 30W reduces the total output to 25W. If the DC input voltage falls below 40V, PoE output on LAN1-LAN4 is disabled automatically.

Cable Length and Speed Trade-offs

In standard LAN mode the ports run at 1000 Mbps up to 100 metres. Enabling Extended Mode pushes the reach to 250 metres but drops each port to 10 Mbps, so camera bit rates must stay below 8 Mbps to avoid congestion.

Highlights

  • Powered by PoE input, no local power supply needed
  • 90W PoE++ input delivers up to 72W total output on four ports
  • Extended mode reaches 250 metres at 10 Mbps per port
  • LAN mode provides 1000 Mbps over 100 metre cable runs
  • Accepts DC 12V-57V input for flexible deployment options

Specifications

BrandDSLRKIT
SeriesPSE14GBT
ModelPSE14GBT
Part NumberPSE14GBT
StandardsPassive PoE
Network MediaPoE
Network Management Type5-port Gigabit PoE Passthrough Switch x1
Uplink InterfacePoE
Uplink SpeedPoE
Uplink Speed/TypePoE
Primary Port Count5
Primary Ports5 x PoE
Primary Port SpeedPoE
Primary Port TypePoE
Management InterfacePoE
Management Feature5-port Gigabit PoE Passthrough Switch x1
MAC Address TablePSE14GBT
Jumbo FramesPSE14GBT, 1 gigabits_per_second, PoE
Packet Forwarding Rate1 gigabits_per_second
ProtocolsPoE
SNMPPSE14GBT
Layer1
Layer 2 FeaturesPoE, 1 gigabits_per_second, 5
Layer 3 FeaturesPSE14GBT
Port MirroringPSE14GBT
Module Support5
CablingPoE
Fan5-port Gigabit PoE Passthrough Switch x1
Cloud AccessPSE14GBT
PoE Ports5
Dimensions3.15 in x 1.97 in x 0.87 in
Weight62.5 grams
Certificationnot_applicable
Temperature60 degrees_celsius
Features5, PoE, 5-port Gigabit PoE Passthrough Switch x1, 1 gigabits_per_second, Plastic, White
Package Contents5-port Gigabit PoE Passthrough Switch x1

Questions about this item

How loud or hot does the DSLRKIT PSE14GBT get when powered continuously through its 90W PoE uplink?

The unit has no fan and draws power only from the PoE uplink or an optional DC 48V-57V adapter. Heat output scales with the total PoE load you connect, up to 72W across LAN1-LAN4.

What must I already own to make the PSE14GBT work out of the box?

You need an 802.3bt PoE++ switch or injector that can deliver up to 90W on the uplink port, plus Ethernet cables for the four LAN1-LAN4 PoE+ output ports. No DC adapter is included.

Will the PSE14GBT slow down my existing Gigabit cameras if I enable its 250-metre Extended Mode?

Yes. Extended Mode drops LAN1-LAN4 to 10 Mbps each, so 1000 Mbps cameras will be throttled. Keep LAN mode for full Gigabit speed up to 100 metres.
