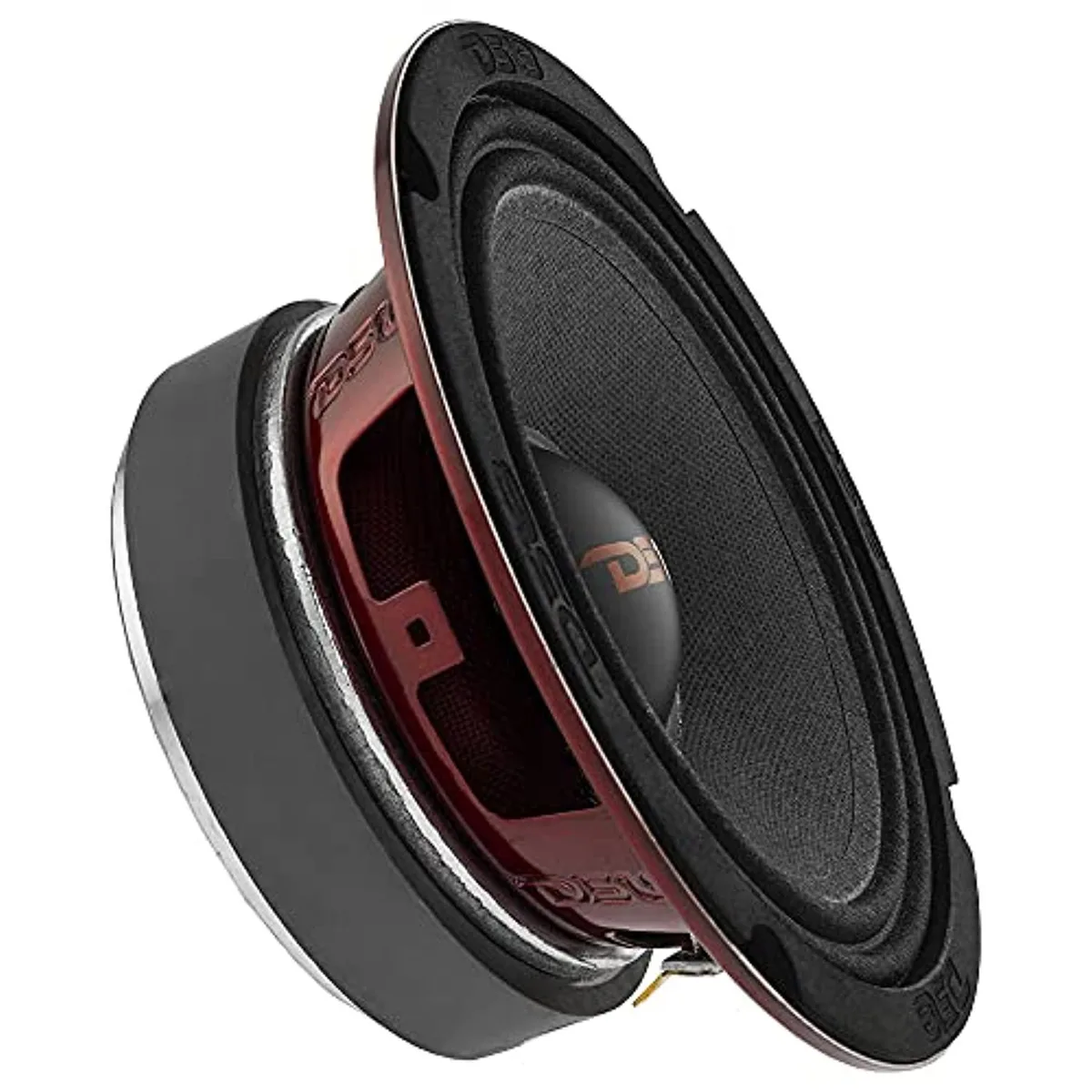

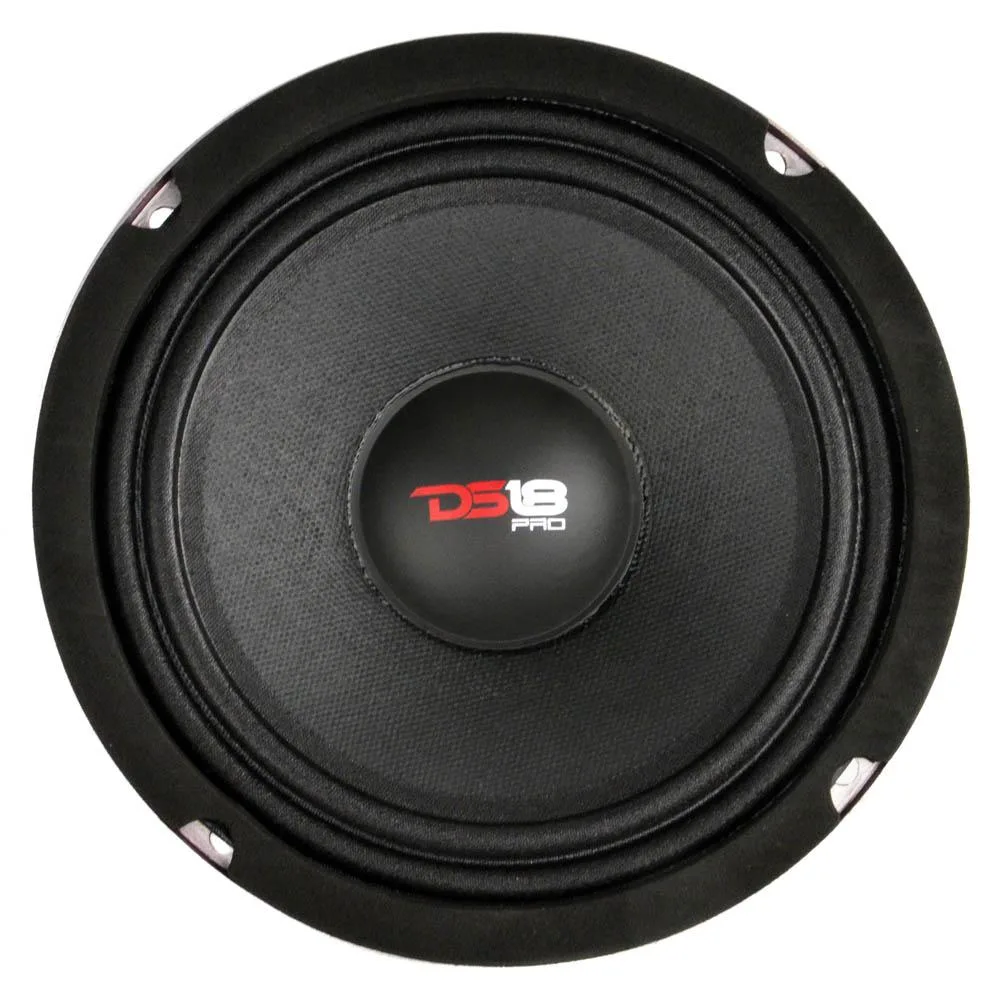

Black 6.5 inch midrange car speaker with silver cone and 1.5 inch voice coil

DS18

DS18 PRO-X6M 6.5" midrange car speaker 450 W 8 Ω

SKU CH-HHEY-BS8PC

A 6.5-inch midrange car speaker rated at 450 W peak and 225 W RMS with an 8-ohm impedance

  • Speaker Size6.5"
  • Clear midrange with 118 Hz low-end extension
  • 225 W RMS power handles sustained output
  • 94 dB sensitivity produces loud sound efficiently
  • 5" CCAR voice coil improves thermal control
  • 6" mounting depth fits shallow enclosures

Midrange speaker for car audio

The DS18 PRO-X6M is a 6.5" midrange driver built for car audio systems that need clear vocal and instrument reproduction. It handles 225 watts RMS and 450 watts peak per speaker with an 8-ohm impedance. The 1.5" CCAR voice coil and 94dB sensitivity help deliver efficient output across a 118Hz to 10KHz frequency response.

Build and mounting details

The speaker uses a 6.6" overall diameter and requires a 5.7" baffle cut-out for installation. Mounting depth measures 3.6" so verify the door or panel cavity can accommodate that depth. The unit weighs 4.94 pounds and its physical dimensions are 6 x 6 x 2.75 inches, which determines the space needed behind the mounting surface.

Compatibility checks before ordering

Confirm your amplifier or head unit can drive an 8-ohm load at the required power level. Ensure the available mounting depth exceeds 3.6" and that the baffle opening matches the 5.7" cut-out specification. This model is a dedicated midrange driver; buyers who need low-bass extension or a coaxial design with an integrated tweeter should look elsewhere.

Highlights

  • Clear midrange with 118 Hz low-end extension
  • 225 W RMS power handles sustained output
  • 94 dB sensitivity produces loud sound efficiently
  • 5" CCAR voice coil improves thermal control
  • 6" mounting depth fits shallow enclosures

Specifications

Speaker Size6.5"

Questions about this item

What does the 8-ohm impedance mean for amplifier matching?

The 8-ohm nominal impedance requires an amplifier rated for 8-ohm loads; the speaker handles 225 watts RMS and 450 watts peak.

Will the 5.7-inch baffle cutout and 3.6-inch mounting depth fit my door panel?

The baffle cutout is 5.7 inches, mounting depth is 3.6 inches, and overall diameter is 6.6 inches; verify your enclosure meets these dimensions.

How do I wire the 1.5-inch CCAR voice coil correctly?

Connect the positive terminal to the amplifier positive output and negative to negative; the 1.5-inch CCAR voice coil presents an 8-ohm load.
