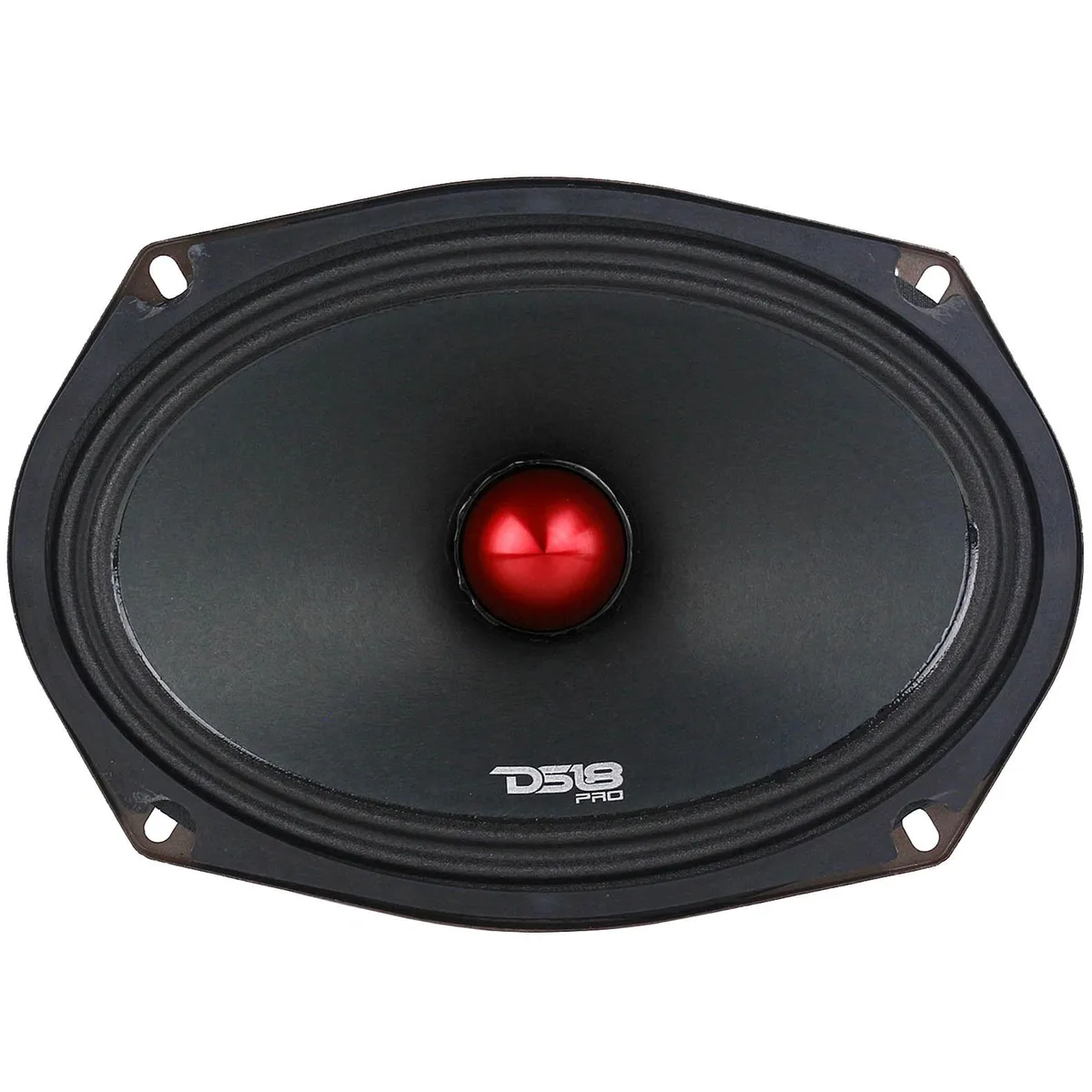

Black 6x9 inch midrange bullet speaker with red aluminum bullet and steel basket

DS18

DS18 PRO-X698BM 6x9" Midrange Bullet Speaker 550W 8-ohm car speaker

SKU CH-QDNV-F2QJX MPN PRO-X698BM

A 6x9" midrange bullet speaker handling 275 W RMS with 98 dB sensitivity and 8-ohm impedance

  • TypeSpeaker
  • Speaker Size6"
  • Vehicle TypeAutomotive
  • ColorBlack
  • Peak Power550 Watts
  • RMS Power275 Watts
  • High 98 dB sensitivity delivers loud output with less power
  • 275 W RMS handles sustained volume without distortion
  • 5" CCAR voice coil resists heat during long sessions
  • 27 oz ferrite magnet provides strong motor force for midrange clarity
  • 6x9" baffle cut-out fits standard automotive openings

Midrange Bullet Speaker for Car Audio

The DS18 PRO-X698BM is a 6x9-inch midrange loudspeaker built for car audio systems. It handles 275 watts RMS and 550 watts peak power with an 8-ohm impedance and 98 dB sensitivity. A 1.5-inch CCAR voice coil and 27 oz ferrite magnet drive a non-pressed paper cone with cloth edge. The red steel basket and aluminum bullet complete the motor structure.

Upgrade from Factory or Weak Midrange

This speaker replaces thin-sounding factory drivers or older midrange units that distort at moderate volume. The jump is worth it when you need clean output from 106 Hz to 17 kHz with high sensitivity for efficient amplifier use. It suits builds focused on vocal clarity and instrument detail rather than sub-bass extension. The bullet phase plug helps control dispersion at higher frequencies.

Check Mounting Space and Amplifier Match

Verify the baffle cut-out of 8.62 by 5.91 inches and mounting depth of 3.35 inches fit your door or panel. Ensure your amplifier can deliver clean power into an 8-ohm load at the required RMS level. The unit weighs 5.99 pounds and ships in an 11 by 8.5 by 6-inch box. Confirm wiring polarity and crossover points suit a dedicated midrange role.

Highlights

  • High 98 dB sensitivity delivers loud output with less power
  • 275 W RMS handles sustained volume without distortion
  • 5" CCAR voice coil resists heat during long sessions
  • 27 oz ferrite magnet provides strong motor force for midrange clarity
  • 6x9" baffle cut-out fits standard automotive openings

Specifications

BrandDS18
TypeSpeaker
Speaker Size6"
ModelPRO-X698BM
Vehicle TypeAutomotive
ColorBlack
Part NumberPRO-X698BM
Peak Power550 Watts
RMS Power275 Watts
Sensitivity98 dB
Impedance8 Ohm
FeaturesMax Power Handling: 550 Watts/ 275W RMS

Questions about this item

What are the baffle cut-out dimensions for the 6x9" speaker?

The baffle cut-out measures 8.62 inches by 5.91 inches, so ensure your mounting surface can accommodate this opening.

How is the 1.5" CCAR voice coil wired during installation?

Connect the speaker to an amplifier channel rated for 8-ohm impedance, observing correct polarity on the terminals to avoid phase issues.

When should the non-pressed paper cone and cloth edge be inspected?

Check the cone and surround periodically for tears or deterioration, especially after exposure to moisture or extreme temperatures.
