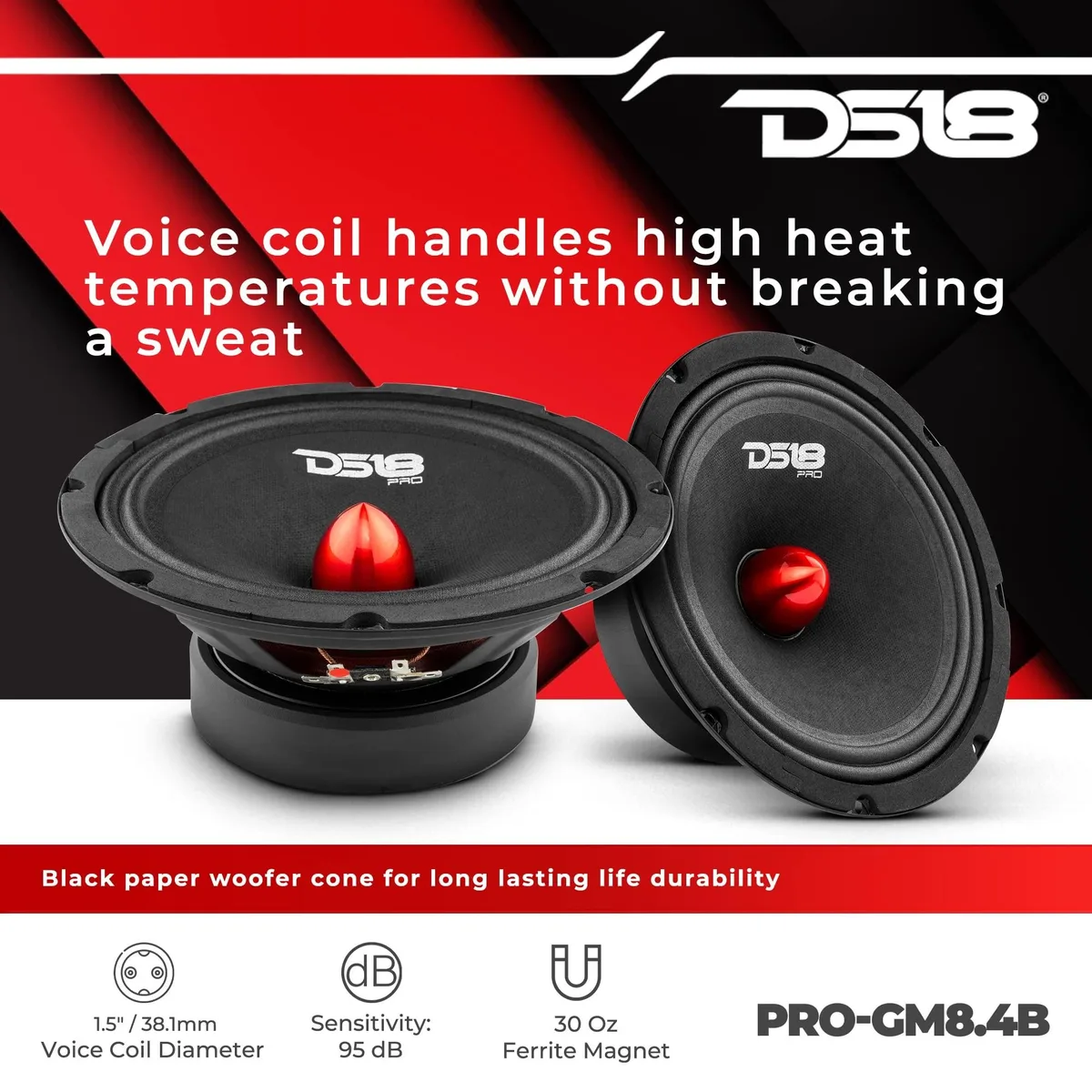

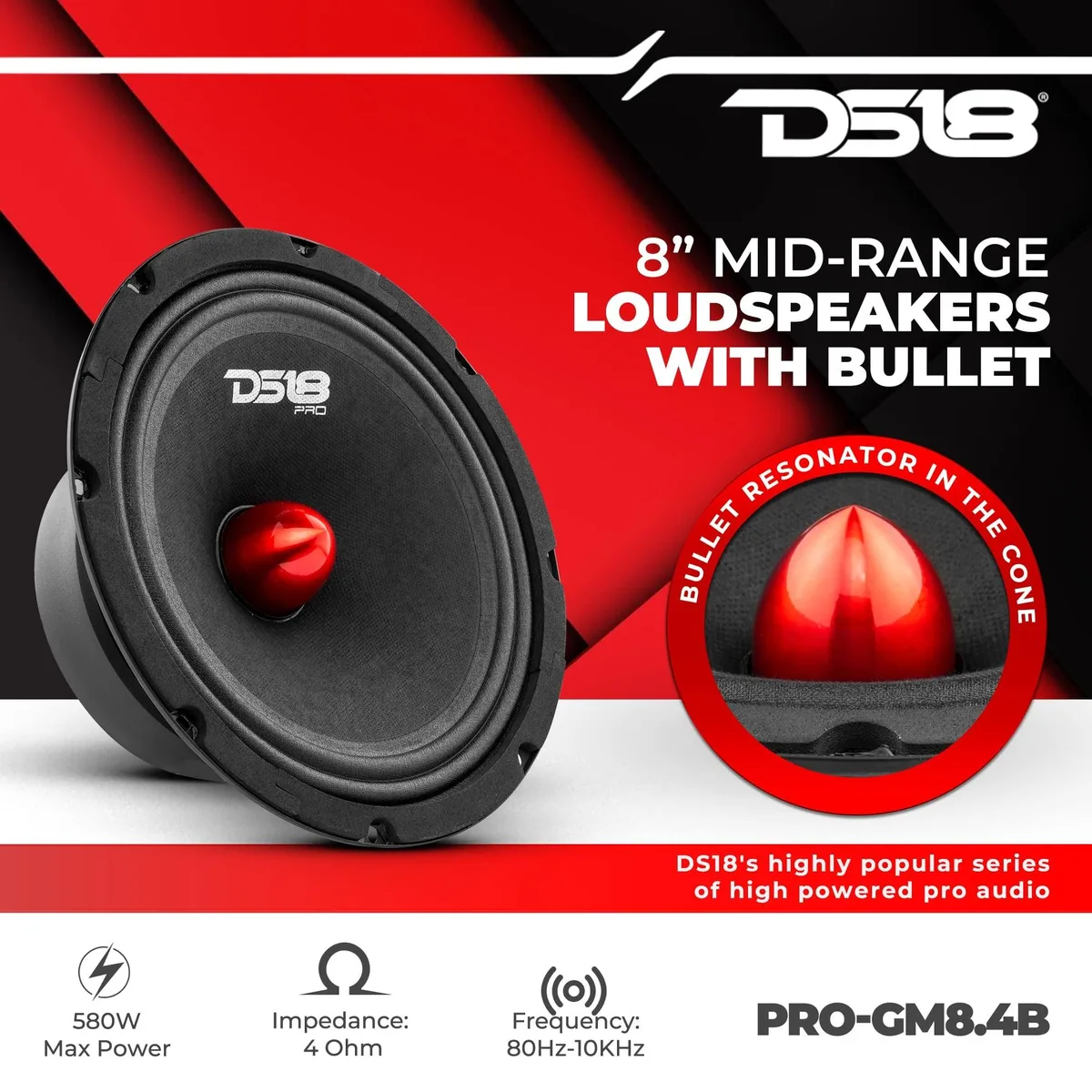

Black 8 inch midrange speaker with red aluminum bullet dust cap and cloth surround

DS18

DS18 PRO-GM 8.4 midrange speaker 8" 580W 4 ohm 1.5" Kapton VC

SKU CH-W4GN-E3VTT

An 8-inch midrange driver with a 1.5-inch Kapton voice coil, 190W RMS and 580W peak handling

  • Midrange driver covers 90-10KHz for clear vocals and instruments
  • 580W max power with 190W RMS at 4 ohms handles demanding audio
  • 5" Kapton voice coil resists extreme heat for long-lasting performance
  • 8" bullet dust cover protects voice coil and optimises sound output
  • 93dB sensitivity produces loud output with modest amplifier power

8" Midrange Driver

The DS18 PRO-GM 8.4 is an 8-inch midrange loudspeaker rated at 190W RMS and 580W max power with a 4-ohm impedance. It uses a 1.5-inch Kapton voice coil on a ferrite magnet assembly. The driver covers a frequency response of 90-10KHz at 93dB sensitivity. It targets car or truck audio systems needing dedicated midrange reproduction.

Sustained Output Capability

The 190W RMS rating indicates continuous power handling during extended listening sessions. The high-temperature Kapton voice coil resists thermal compression when driven hard. A 30-ounce ferrite magnet provides stable flux density for consistent output. The cloth surround and paper cone maintain mechanical linearity at high excursion levels.

Installation Requirements

Verify the mounting depth of 3.38-inch and cut-out diameter of 7.16-inch fit your door or panel. Confirm the amplifier can deliver clean power into a 4-ohm load. The 90Hz lower limit means a separate subwoofer is required for full-range bass. Buyers needing integrated tweeters or coaxial designs should consider other configurations.

Highlights

  • Midrange driver covers 90-10KHz for clear vocals and instruments
  • 580W max power with 190W RMS at 4 ohms handles demanding audio
  • 5" Kapton voice coil resists extreme heat for long-lasting performance
  • 8" bullet dust cover protects voice coil and optimises sound output
  • 93dB sensitivity produces loud output with modest amplifier power

Specifications

No published specifications for this item yet.

Questions about this item

How much heat can the 1.5" Kapton voice coil handle during all-day use?

The 1.5" high-temperature Kapton voice coil is built to withstand extreme heat and keep its structural integrity for long life.

What amplifier power and impedance match does this 4 ohm midrange need?

It requires an amplifier that can deliver up to 190W RMS at 4 ohms, with headroom for 580W max peaks.

Will the 3.38" mounting depth and 7.16" cut-out fit my existing door openings?

The speaker needs a 7.16" cut-out and 3.38" mounting depth; verify your current openings match these dimensions.
