Black DJI RS 4 gimbal with folded arms, battery grip, and quick-release plate

DJI

DJI RS 4 CP.RN.00000343.03 action camera accessory

SKU CH-MT31-9MT5Q MPN CP.RN.00000343.03

A 3 kg capacity gimbal stabiliser with native vertical shooting, Teflon-coated axes and a 12-hour battery grip for mirrorless cameras

  • DimensionsMechanical & Electrical Properties Folded: 245×255×75 mm (L×
  • WeightMechanical & Electrical Properties ?Gimbal: Approx. 1066 g (
  • SpecificationPERIPHERAL Accessory Port Ronin Series Accessories (RSA)/NAT
  • FeatureDJI RONIN TRANSMITTER Connections Power/Communication Port (
  • Package Contents1 x Gimbal 1 x BG21 Battery Grip 1 x Quick-Release Plate (Ar

Model DJI RS 4

  • Native vertical shooting with horizontal plate
  • Teflon-coated axes reduce friction for precise balance
  • 3 kg payload capacity with extended tilt axis

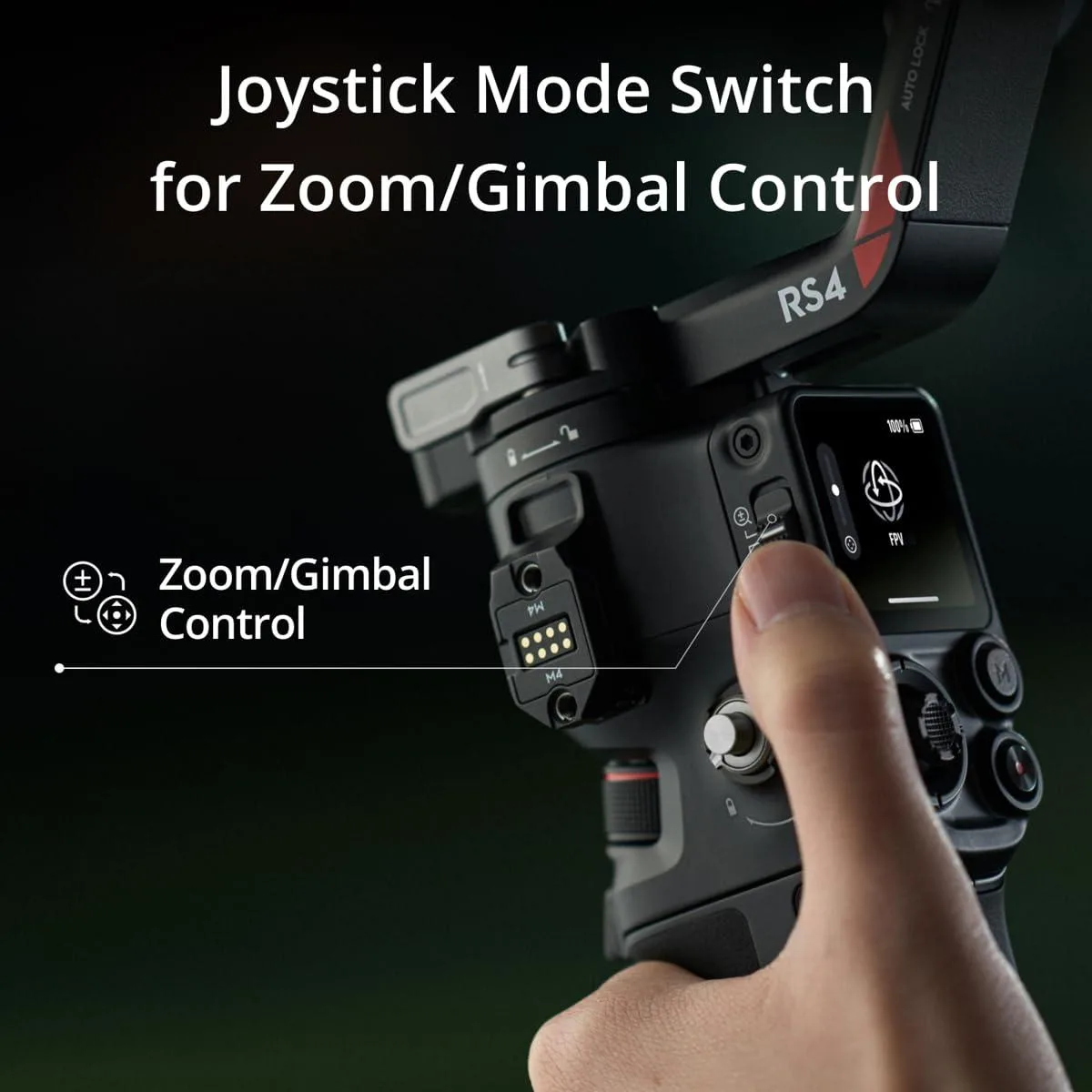

  • Joystick mode switch for quick gimbal control
  • RSA port connects tethered handle and third-party accessories

3 kg payload gimbal for mirrorless creators

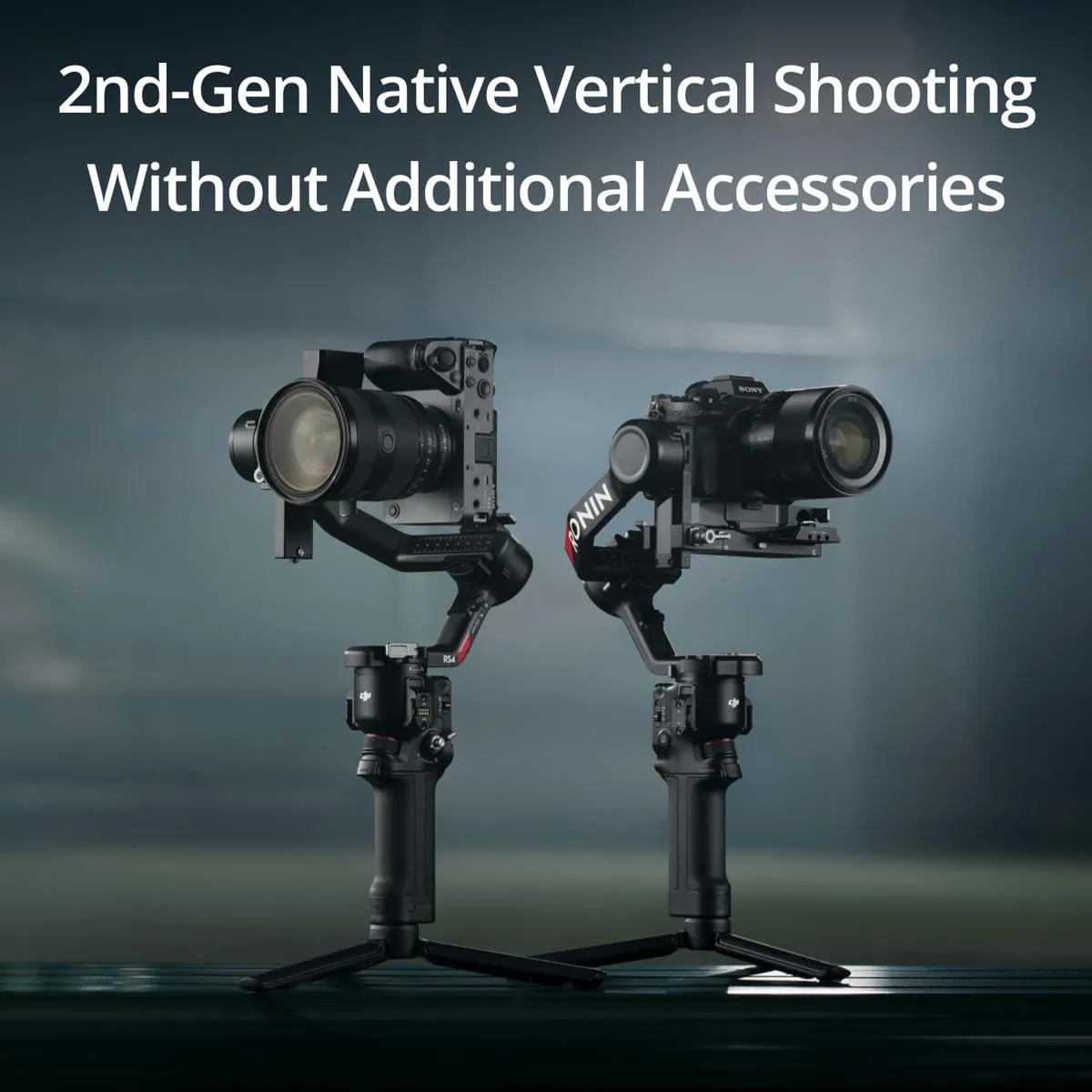

The DJI RS 4 supports a 3 kg payload with an extended tilt axis that adds 8.5 mm of balancing room for mainstream mirrorless camera and lens combinations. A 2nd-generation native vertical shooting plate lets you switch to vertical orientation without extra accessories. The gimbal weighs 1066 g while the BG21 grip adds 203 g and the plastic Extended Grip/Tripod adds 183 g.

Teflon-coated axes and 12-hour runtime

Teflon coating on all three axes reduces friction for ultra-precise balancing during sustained operation. The included BG21 battery grip delivers up to 12 hours of runtime on a single charge. An optional BG70 high-capacity grip can extend that figure to 29.5 hours and supplies up to 18 watts to a camera or accessories through its USB-C port.

RSA and NATO ports for modular rigging

An RSA communication port and NATO ports accept Ronin-series accessories plus third-party control handles and remote rings. The gimbal also provides a 1/4"-20 mounting hole, a cold shoe, and USB-C ports for video transmission, camera control, and focus motor connection. Folded dimensions are 245×255×75 mm; unfolded dimensions are 370×191×189 mm.

Highlights

  • Native vertical shooting with horizontal plate
  • Teflon-coated axes reduce friction for precise balance
  • 3 kg payload capacity with extended tilt axis
  • Joystick mode switch for quick gimbal control
  • RSA port connects tethered handle and third-party accessories

Specifications

BrandDJI
ModelRS 4
Part NumberCP.RN.00000343.03
DimensionsMechanical & Electrical Properties
Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
82×63×24 mm (L×W×H)
WeightMechanical & Electrical Properties
?Gimbal: Approx. 1066 g (2.35 lbs)
Grip: Approx. 203 g (0.45 lbs)
?Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
DJI Ronin Image Transmitter
126 g (0.27 lbs)
SpecificationPERIPHERAL
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
?Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery
Model: BHX711-3000-7.2??V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ?When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Char
FeatureDJI RONIN TRANSMITTER
Connections
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
Expansion Port
Cold Shoe
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
?2.400-2.4835 GHz:
< 25 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 25 dBm (FCC/SRRC)
< 14 dBm (CE)
Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range
200 m (SRRC/FCC)
100 m (CE)
?Measured in an unobstructed environment free of interference.
Latency
60 ms
Operating Cu

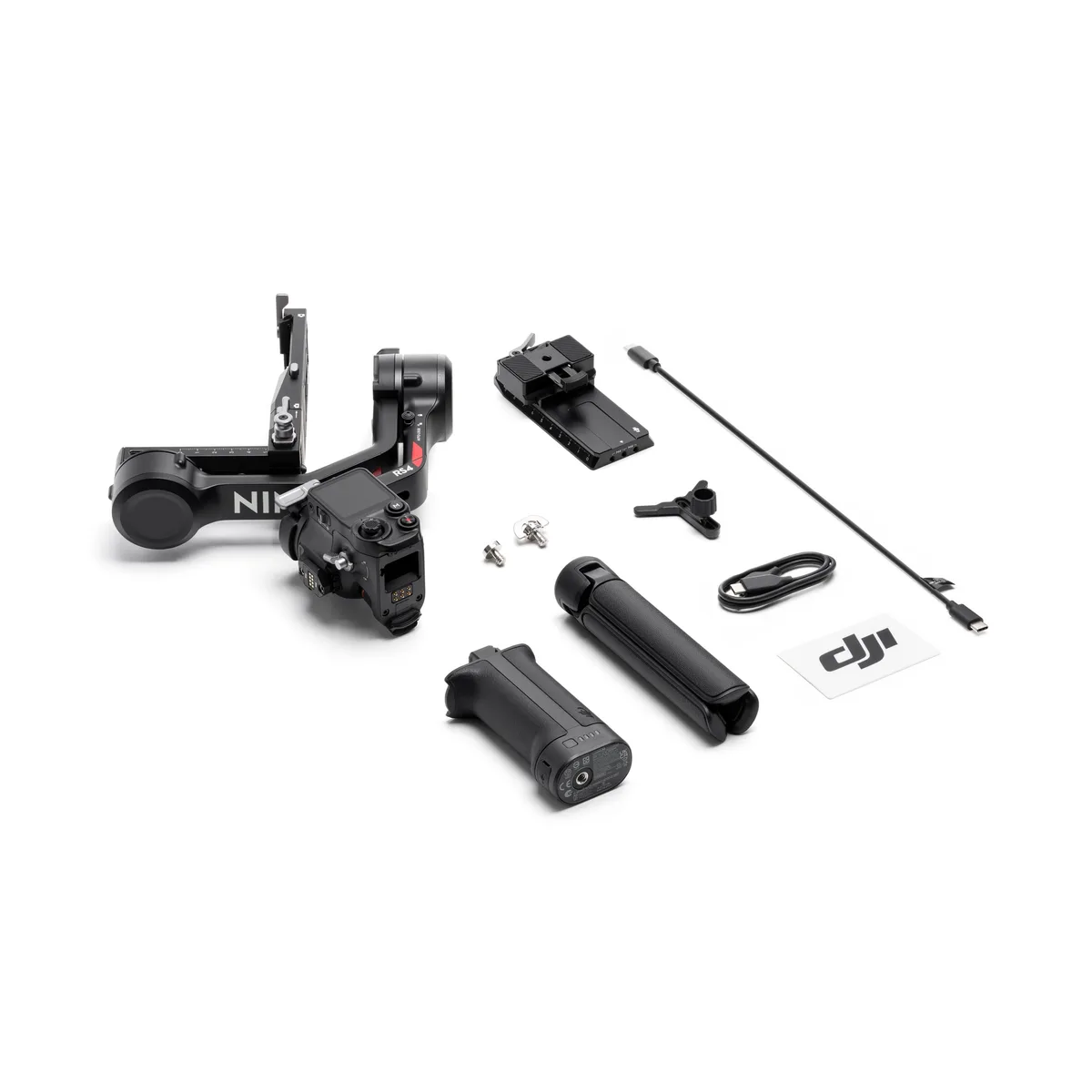

Package Contents1 x Gimbal
1 x BG21 Battery Grip
1 x Quick-Release Plate (Arca-Swiss/Manfrotto)
1 x Extended Grip/Tripod (Plastic)
1 x Lens-Fastening Support
1 x USB-C Charging Cable (40 cm)
1 x Multi-Camera Control Cable (USB-C, 30 cm)
1 x Screw Kit
Shipping weight0.91 kg
Package size375 × 263 × 98 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the gimbal draw when running all day?

The BG21 battery grip provides up to 12 hours of runtime; the optional BG70 high-capacity grip extends this to 29.5 hours and can deliver up to 18 watts via its USB-C port to power a camera or accessories.

What camera connections must I already have for the gimbal to control my camera?

The unit includes a Multi-Camera Control Cable (USB-C, 30 cm) and an RSS Camera Control Port (USB-C); your camera needs a compatible USB-C control port to use these cables.

Will the RS 4 balance my existing mirrorless camera and lens combo?

The payload capacity is 3 kg (6.6 lbs) with an extended tilt axis that adds 8.5 mm of balancing space, designed for mainstream mirrorless camera and lens combinations.
