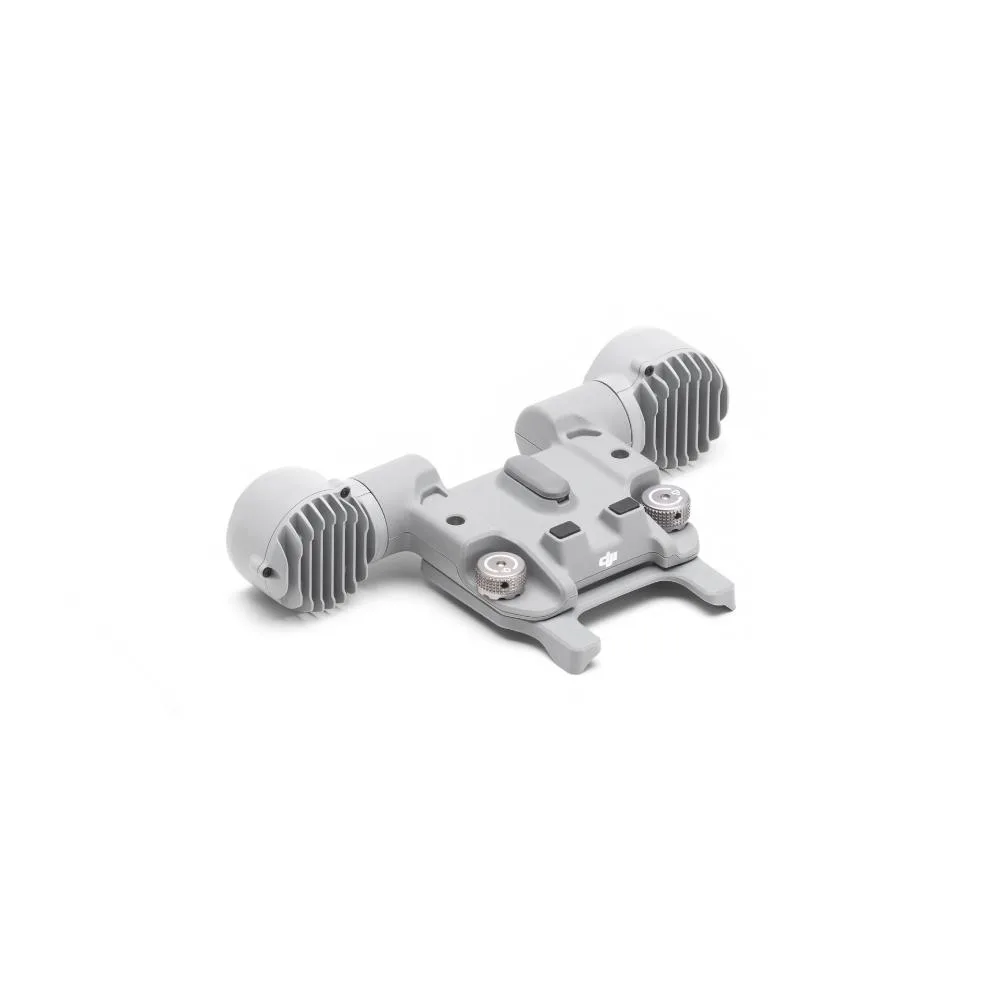

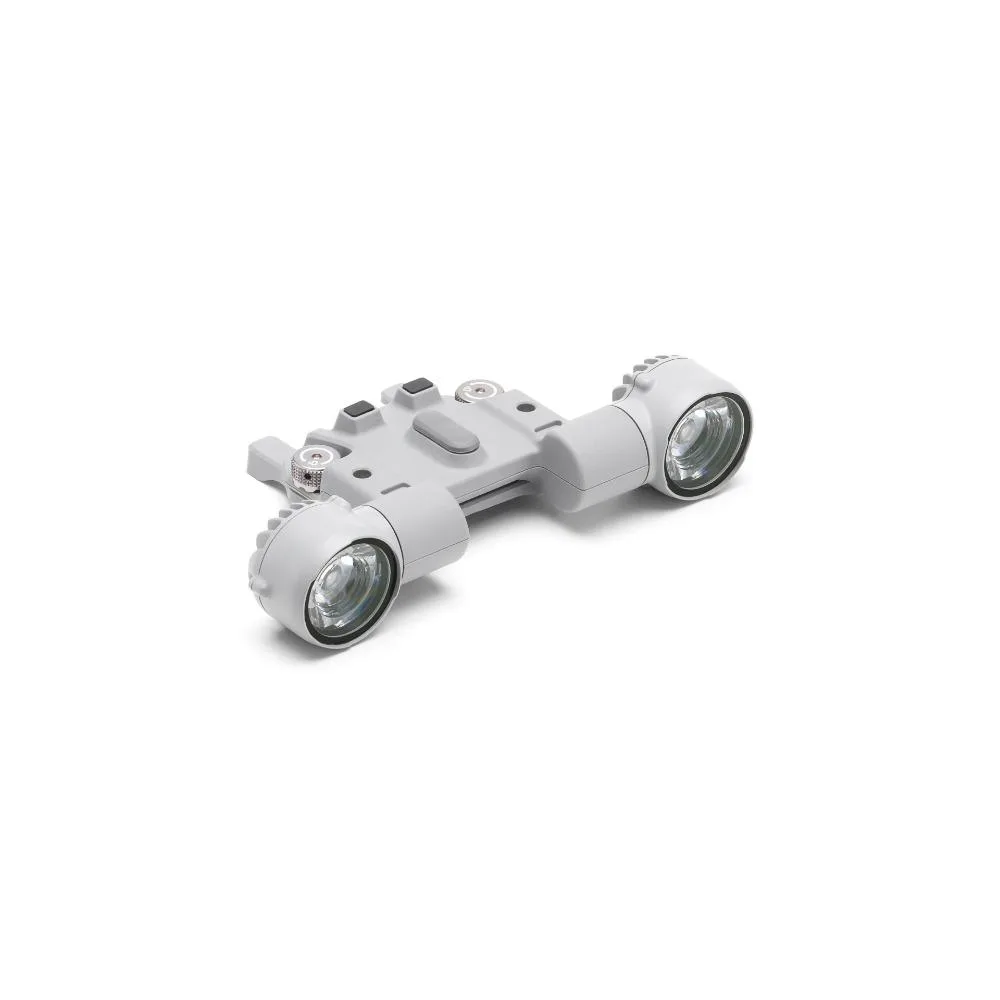

Gray rectangular DJI AL1 searchlight with mounting hardware 79 by 164 by 28 mm 91 grams

DJI

DJI AL1 Searchlight for Matrix4D/4TD & 4T/4E

SKU CH-97ZQ-NVP6Q

A 91 g drone searchlight with Always-On and Flash modes, 32 W max power, 4.3 lux at 100 m, 23° beam, and cloud-platform tilt control from -90° to 35°

  • ColorGray
  • TypeALI
  • CompatibilityDJI Matrix4D/4TD and Matrix4T/4E models simultaneously
  • SpecificationsItem
  • Package ContentSearchlight × 1 Spare screws × 2 Inner hexagonal screwdriver
  • Dimensions79*164*28mm
  • Illuminates targets up to 100 m with 17 lux at 50 m
  • Offers Always-Bright and Flash modes for flexible operation
  • Wide-angle mode covers 2 200 m² at 100 m
  • Cloud platform enables ±0.1° alignment precision and 120°/s tilt speed
  • Lightweight 91 g design with 32 W max power draw

Drone searchlight for Matrix4D and Matrix4T series

The DJI AL1 searchlight mounts on Matrix4D, Matrix4TD, Matrix4T and Matrix4E aircraft. It weighs 91 g and measures 79 by 164 by 28 mm. Maximum power draw is 32 W. The unit delivers 4.3 lux at 100 m and 17 lux at 50 m with a 23° effective lighting angle.

Always-On, Flash and wide-angle modes

Always-On mode provides continuous illumination while Flash mode pulses for signalling. Wide-angle mode expands coverage to 2,200 square metres at 100 m compared with 1,300 square metres in normal mode. Cloud platform integration lets the gimbal follow the camera with tilt control from -90° to 35° and rotation speed up to 120° per second.

Two spare screws and a hex key included

The package supplies the searchlight, two spare screws and an inner hexagonal screwdriver for installation. Operators must verify their airframe is a Matrix4D, Matrix4TD, Matrix4T or Matrix4E model and that the operating temperature range of -20 °C upwards suits the mission environment. Alignment precision is rated at ±0.1°.

Highlights

  • Illuminates targets up to 100 m with 17 lux at 50 m
  • Offers Always-Bright and Flash modes for flexible operation
  • Wide-angle mode covers 2 200 m² at 100 m
  • Cloud platform enables ±0.1° alignment precision and 120°/s tilt speed
  • Lightweight 91 g design with 32 W max power draw

Specifications

BrandDJI
ModelWarning lights
Part NumberAL-09887
ColorGray
TypeALI
CompatibilityDJI Matrix4D/4TD and Matrix4T/4E models simultaneously
SpecificationsItem
Package ContentSearchlight × 1
Spare screws × 2
Inner hexagonal screwdriver × 1
Dimensions79*164*28mm
Weight91g

Questions about this item

What screws and tools are included if the AL1 mounting hardware needs replacement?

The package supplies two spare screws and one inner hexagonal screwdriver for the AL1 searchlight.

At what ambient temperature does the AL1 reach its operating limit?

The searchlight is rated for a working environment temperature down to -20 °C.

How much power does the AL1 draw and how heavy is it during continuous operation?

Maximum power is 32 W and the unit weighs 91 g without the stand.
