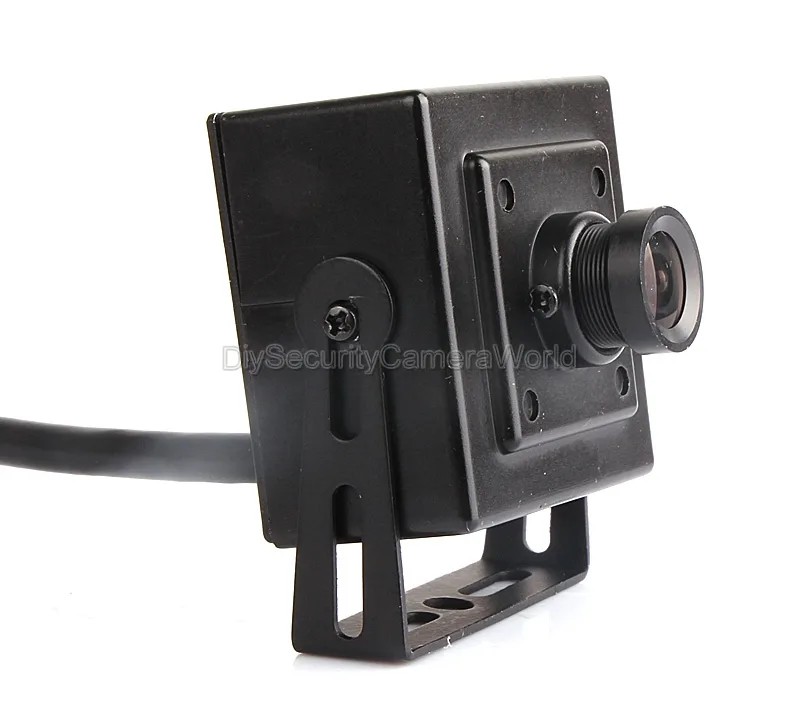

Small black mini box CCTV camera with 2.8mm lens and BNC connector

DiySecurityCameraWorld

DiySecurityCameraWorld CVI-MC29101080 2.0MP 1080P 2.8mm HDCVI BNC CCTV Camera

SKU CH-GP3T-GB5A4

A compact 2.0MP HDCVI camera with a 2.8mm lens delivers 1080P video at 30fps over BNC and requires a compatible DVR

  • ColorBlack
  • Network CameraNo
  • Camera Type2 Megapixel
  • TypeHD-CVI
  • Connection TypeBNC
  • Sensor & DetectorCMOS
  • 1080p clarity for detailed monitoring with 1920 x 1080 resolution
  • Wide 2.8 mm lens captures broad scenes in tight spaces
  • HD-CVI technology transmits 2.0 megapixel video over standard coax cable
  • BNC connection ensures direct compatibility with HD-CVI DVR recorders
  • Low-light sensitivity down to 0.01 lux maintains image quality in dim conditions

Product type and fit

This is a 2.0 megapixel HD-CVI CCTV camera with a 2.8mm wide-angle lens and BNC output. It captures 1920 x 1080 resolution video at 30fps using a CMOS sensor. The unit requires a compatible HD-CVI DVR and a DC 12V power supply to operate.

Who this suits and who it does not

It suits installers building or expanding an analogue HD-CVI system who need a compact pinhole form factor. Buyers without an HD-CVI recorder cannot use this camera. It also lacks night vision, so low-light monitoring needs a different solution. Wireless or IP network integration is not supported.

Build integration

The camera connects directly to an HD-CVI DVR via a single BNC coaxial cable. A separate DC 12V power adapter must be sourced to energise the unit. Its super-mini dimensions allow discreet placement in tight spaces where larger housings would not fit. No PoE or network cabling is involved.

Highlights

  • 1080p clarity for detailed monitoring with 1920 x 1080 resolution
  • Wide 2.8 mm lens captures broad scenes in tight spaces
  • HD-CVI technology transmits 2.0 megapixel video over standard coax cable
  • BNC connection ensures direct compatibility with HD-CVI DVR recorders
  • Low-light sensitivity down to 0.01 lux maintains image quality in dim conditions

Specifications

BrandDiySecurityCameraWorld
ModelCVI-MC29101080
ColorBlack
Network CameraNo
Camera Type2 Megapixel
TypeHD-CVI
Connection TypeBNC
Sensor & DetectorCMOS
MAX Resolution1920 x 1080
Frame Rate30fps
Lens Type2.8mm Lens
Night VisionNo
Power over EthernetNo
PowerDC 12V

Questions about this item

What type of recorder must I already have to use this CVI-MC29101080 camera?

You need an HD-CVI DVR; the camera cannot work with standard analogue DVRs.

Can I connect this BNC camera to an older analogue DVR that only supports CVBS?

No, the camera outputs an HD-CVI signal and requires a compatible HD-CVI DVR to function.

How can I verify the camera is delivering 1920 x 1080 video at 30fps after installation?

Check the DVR live view or playback menu — it should report 1080P resolution and 30 frames per second on that channel.
