DIYPC
DIYPC ARGB-M1-BK Micro ATX PC case
Compact Micro-ATX tower with tempered glass panels, three pre-installed 120 mm ARGB fans and top 360 mm radiator support for liquid cooling
- TypeMirco ATX Tower
- ColorBlack
- Case MaterialSteel / Tempered Glass
- With Power SupplyNo
- Power Supply MountedBottom
- Motherboard CompatibilityMicro ATX / ITX
- Micro-ATX and ITX motherboards fit with room for a 330 mm graphics card
- Three pre-installed 120 mm ARGB PWM fans deliver immediate airflow and lighting
- Top panel accepts up to a 360 mm radiator for liquid-cooling builds

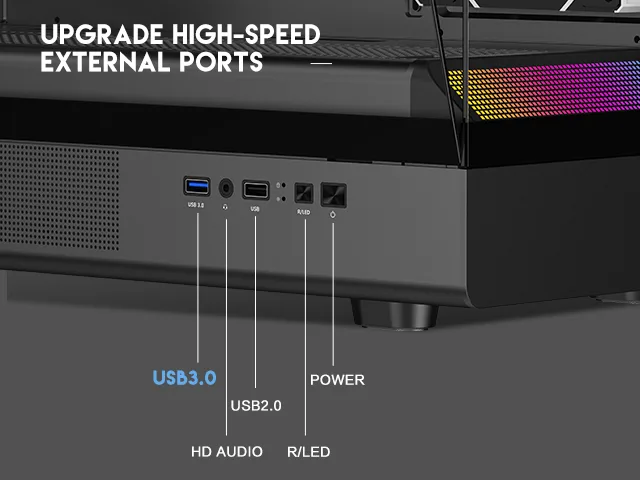

- USB 3.0, USB 2.0 and HD audio ports sit on the bottom I/O panel

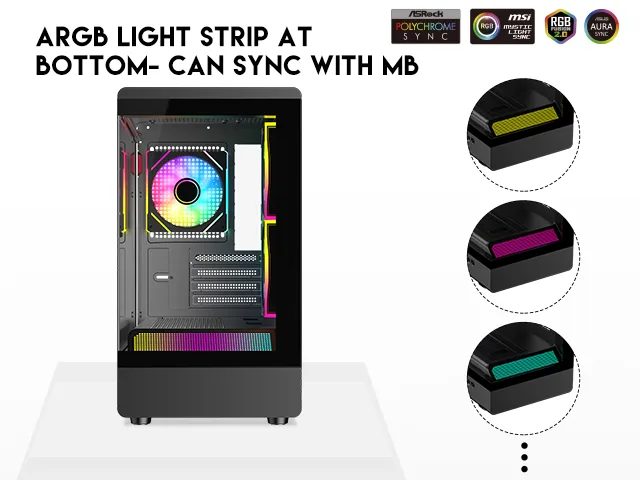

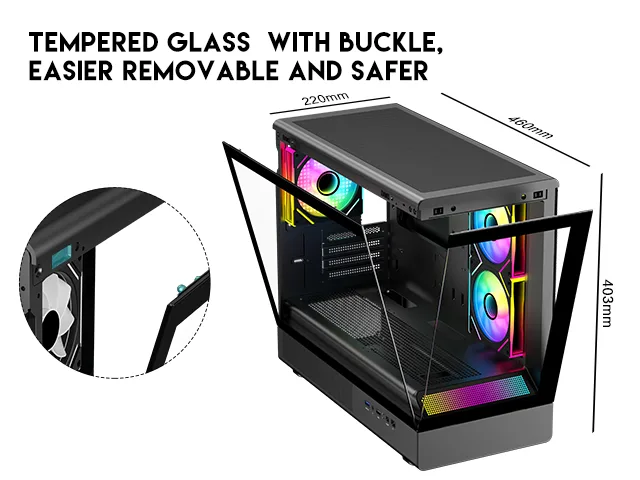

- Dual tempered-glass side panels showcase the interior and ARGB light strip
Micro ATX Tower for Compact Builds

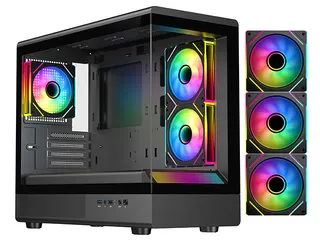

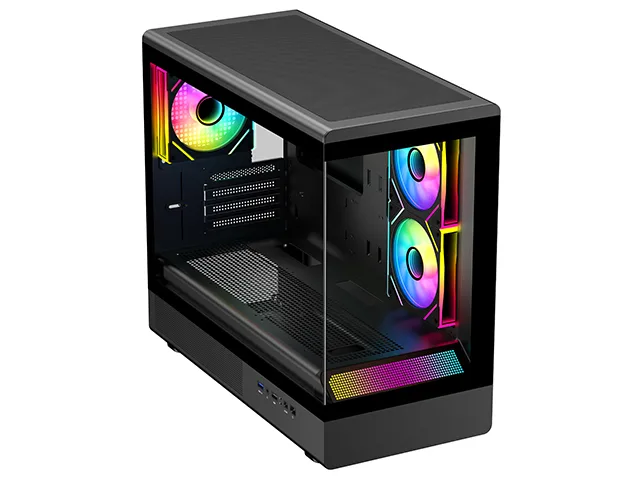

The DIYPC ARGB-M1-BK is a black Micro ATX tower built from steel with tempered glass on both sides. It accepts Micro ATX and ITX motherboards and comes with three pre-installed 120 mm ARGB PWM fans for immediate airflow and lighting.
Compatibility Checks Before Ordering
Verify that your graphics card measures no more than 330 mm and your CPU cooler stays within 175 mm of height. Ensure your power supply fits the 170 mm bottom-mounted limit and that the board provides a 5 V addressable header if you want motherboard-synced ARGB control.
Sustained-Load Thermal Behaviour

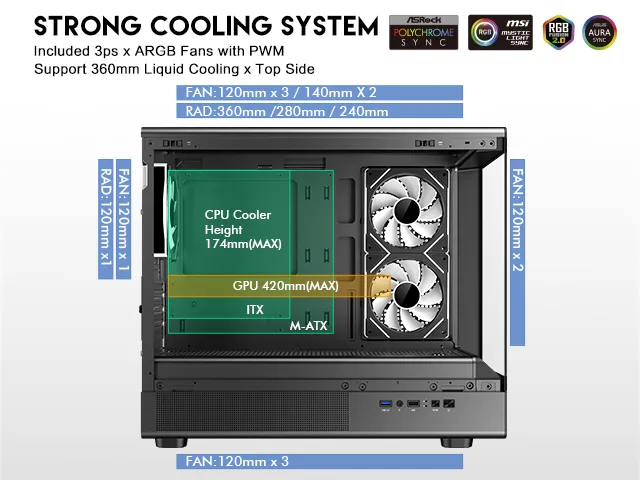

The top panel supports a radiator up to 360 mm and optional 120 mm or 140 mm fans for liquid-cooling capacity during long sessions. Magnetic dust filters at the top and bottom keep intake clean without restricting flow, while the rear and side exhaust fans maintain steady pressure under continuous load.
Highlights
- Micro-ATX and ITX motherboards fit with room for a 330 mm graphics card
- Three pre-installed 120 mm ARGB PWM fans deliver immediate airflow and lighting
- Top panel accepts up to a 360 mm radiator for liquid-cooling builds
- USB 3.0, USB 2.0 and HD audio ports sit on the bottom I/O panel
- Dual tempered-glass side panels showcase the interior and ARGB light strip
Specifications
| Brand | DIYPC |
|---|---|
| Model | ARGB-M1-BK |
| Type | Mirco ATX Tower |
| Color | Black |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ITX |
| Side Panel | 2 x Sides Tempered Glass Panel |
| LED | ARGB |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 1 |
| Expansion Slots | 4 |
| Front Ports | USB 2.0 x 1 / USB 3.0 x 1 / Audio In & Out (HD) |
| Fan Options | Top: 2 x 120mm or 140mm fan (Optional) MB Side: 2 x 120mm ARGB Reverse Blade PWM Fan (pre-installed) Rear: 1 x 120mm ARGB PWM Fan (pre-installed) PSU top : 2 x 120mm fan (Optional) |
| Pre-installed Fans | Rear - 1 x 120mm / Side - 2 x 120mm |
| Radiator Options | Top - Up to 360mm |
| Max GPU Length | 330 mm |
| Max CPU Cooler Height | 175 mm |
| Max PSU Length | 170 mm |
| Shipping weight | 6.96 kg |
| Package size | 552 × 457 × 282 mm |
Questions about this item
Will a 330 mm graphics card fit with the pre-installed side fans in place?
The case allows up to 330 mm GPU length; the two 120 mm side fans are pre-installed, so measure your card against that limit
Can I run a 360 mm radiator on top while keeping the top dust filter?
Top supports up to 360 mm radiator; the magnetic dust filter sits on the same panel and can be removed for radiator mounting
Does the ARGB lighting need a 5 V addressable header on the motherboard to work?
Lighting can be controlled by the manual button on the case or synced via a 5 V 3-pin ARGB header if your board has one
