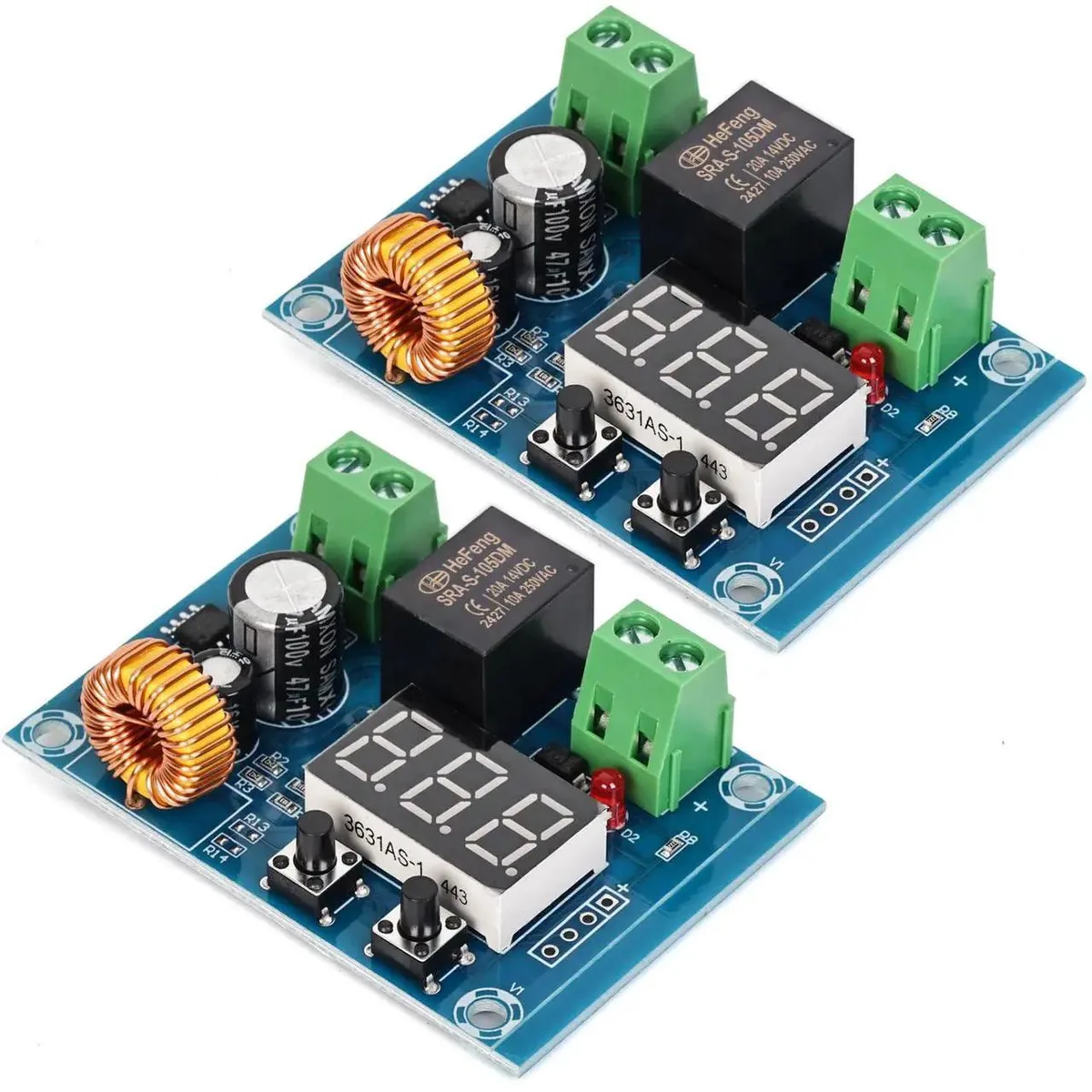

Two small green circuit boards with digital displays and terminal blocks

DIXSG

DIXSG 12V-36V DC Low Voltage Protector Pack of 2

SKU CH-ZG26-9TD3R

Two digital low-voltage protectors disconnect DC loads at a user-set threshold from 12 V to 36 V with ±0.1 V accuracy

  • Prevents over-discharge with adjustable cut-off voltage
  • Works with lead-acid, lithium-ion and solar batteries
  • Factory reset restores default 12V protection and 2V difference
  • Settings retained after unexpected power loss
  • Compact 57 x 42 x 19 mm board handles up to 8A current

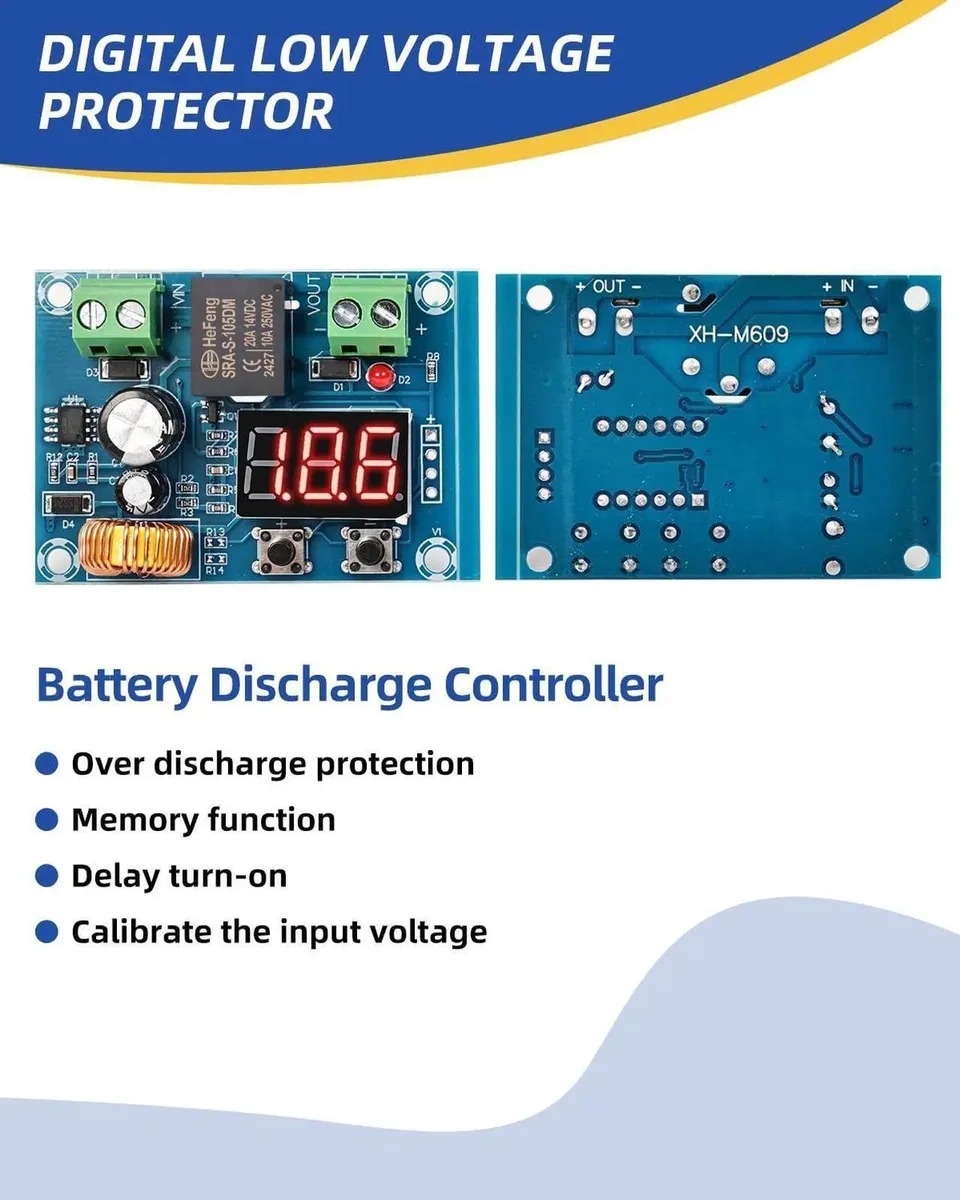

Low-Voltage Battery Protector

The DIXSG 12V-36V DC module monitors battery voltage and uses a relay to disconnect the load when a preset threshold is reached. It suits lead-acid, lithium-ion and solar-panel batteries in off-grid or backup systems. The pack contains two identical units for protecting separate banks or providing a spare.

Adjustable Cut-Off with 8 A Limit

The board accepts 12 V to 36 V input and trips at a user-defined voltage with a default 12 V disconnect and 2 V hysteresis. Accuracy is ±0.1 V. The miniaturised relay and thin traces restrict continuous current to 8 A above 12 V and 10 A below 12 V, so it cannot handle high-draw inverters or starter motors.

Compact Board for Custom Enclosures

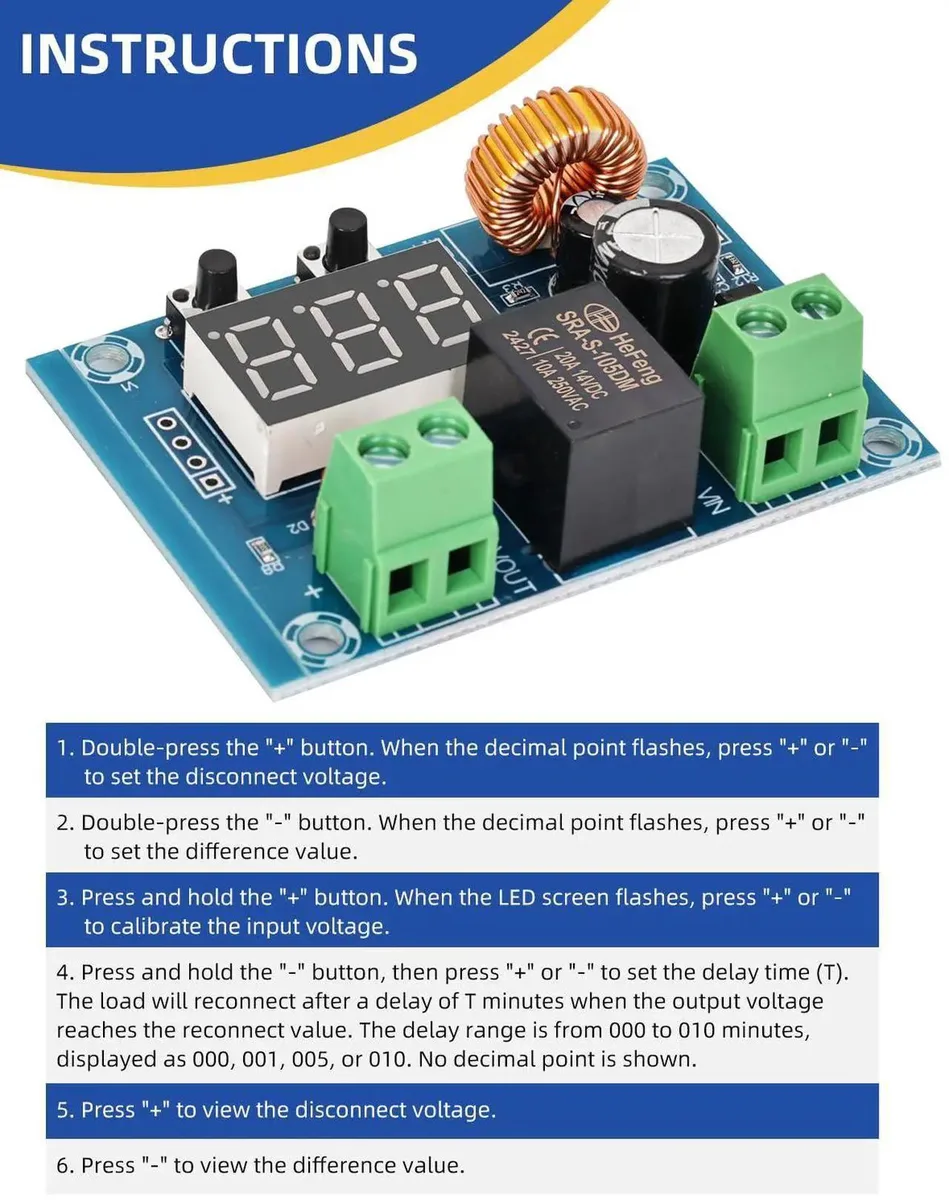

Each unit measures 57 x 42 x 19 mm and consumes minimal standby power. Settings survive power loss and can be reset to factory defaults by holding both buttons at power-on until 888 appears. The relay only switches the load; it does not regulate voltage, so a separate charger or regulator is still required.

Highlights

  • Prevents over-discharge with adjustable cut-off voltage
  • Works with lead-acid, lithium-ion and solar batteries
  • Factory reset restores default 12V protection and 2V difference
  • Settings retained after unexpected power loss
  • Compact 57 x 42 x 19 mm board handles up to 8A current

Specifications

No published specifications for this item yet.

Questions about this item

Will the 12V-36V DC protector work with my existing 12V lead-acid battery bank?

Yes, the module supports lead-acid, lithium-ion and solar panel batteries within the 12V to 36V DC input range.

How do I verify the protector is operating correctly after wiring it in?

The digital display shows real-time voltage with ±0.1V accuracy; the relay clicks audibly when the output switches on or off at your preset threshold.

What comes in the pack and do I need any extra parts to install it?

Two protection modules measuring 57 x 42 x 19 mm are included; you must supply suitable wiring, a DC power source within 12V-36V and a load not exceeding 8A above 12V.
