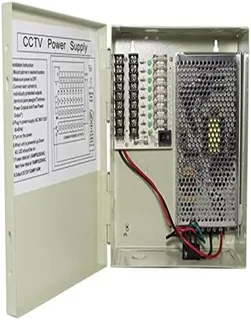

Rectangular metal CCTV power box, nine fused outputs, grey finish

DIVI

DIVI 9 Output 12A 12V CCTV Power Box

SKU CH-SQQ4-Y6AGG

Distributes 12 V DC at up to 12 A across nine individually fused outputs with over-power, over-current and over-heat protection

  • TypePower Box
  • Powers nine cameras from one box
  • 120 W total output handles full DVR loads
  • 5 A per channel prevents overload
  • Glass fuses cut power in seconds on short circuits
  • Over-power, over-current and over-heat protection built in

12 V 12 A CCTV Power Box with Nine Fused Outputs

This unit distributes regulated 12 V DC to up to nine cameras or accessories from a single 100-240 V AC mains connection. Each channel is limited to 1.5 A by an individual glass fuse, and the total continuous capacity is 12 A. Over-power, over-current and over-heat protection circuits are built in. The enclosure measures 9.5 by 8 by 3.25 inches and includes a three-prong AC cord.

Replaces Multiple Wall-Wart Adapters for Cleaner

A single box eliminates the tangle of separate plug-packs and reduces the number of mains sockets required. The step is worthwhile when you are running more than three cameras, when cable runs converge at one location, or when you want per-channel fault isolation so a short on one line does not kill power to the others. It is not suited for devices that need more than 1.5 A per port or for non-12 V equipment.

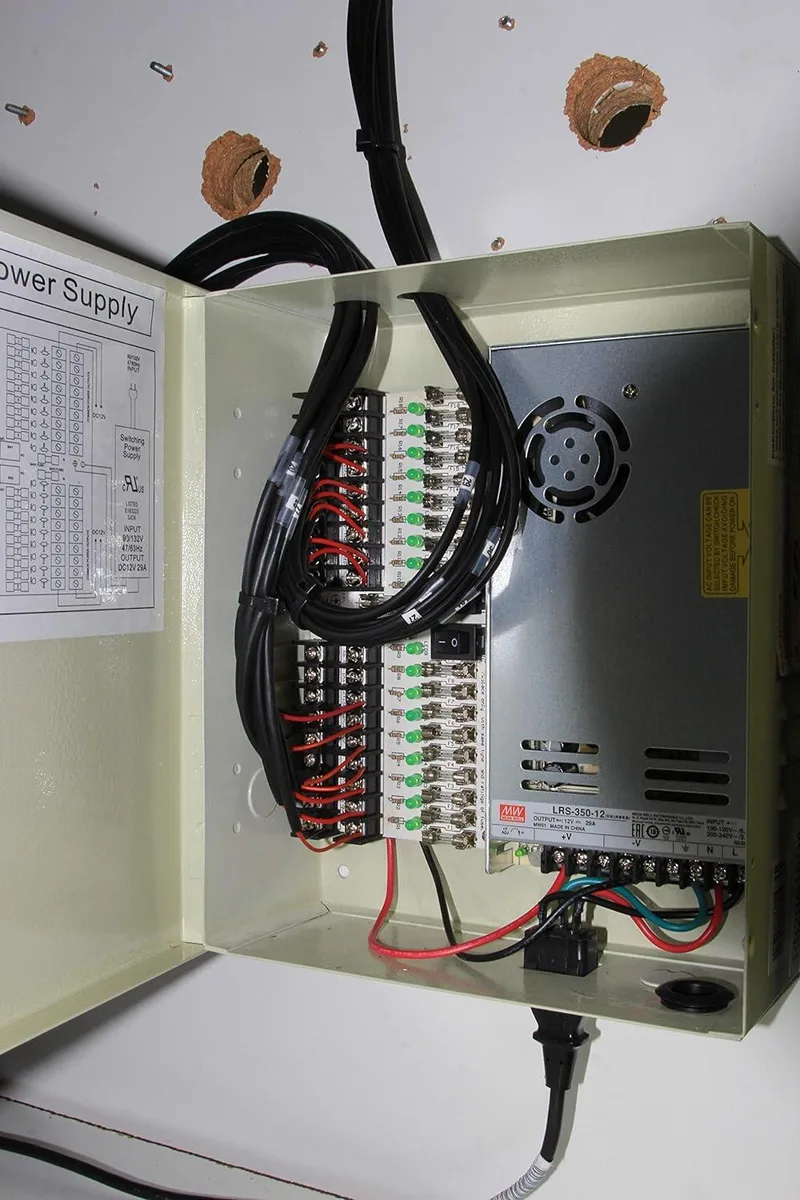

Mounts on a Wall or Rack Shelf and Wires in Minutes

Screw-mount the metal case, plug the IEC cord into mains, then connect each camera to a labelled terminal pair — no soldering or crimping required. The most common issue is exceeding the 1.5 A per-channel limit, which blows the glass fuse and cuts power to that camera only; spare fuses should be kept on hand. Verify that the combined draw of all connected devices stays within the 12 A total rating before powering up.

Highlights

  • Powers nine cameras from one box
  • 120 W total output handles full DVR loads
  • 5 A per channel prevents overload
  • Glass fuses cut power in seconds on short circuits
  • Over-power, over-current and over-heat protection built in

Specifications

TypePower Box

Questions about this item

What are the exact width, depth and height measurements for the DIVI 9 Output 12A 12V CCTV Power Box?

The unit measures 9.5 inches wide, 10 inches deep and 3.25 inches high, so verify your cabinet or rack opening against those dimensions before mounting.

How is the power box connected to mains power and what is the common wiring mistake?

Plug the supplied 3-prong AC cord into a 100-240 VAC outlet; the frequent error is reversing polarity on the 12 VDC camera leads, which blows the individual glass fuses.

When do the internal glass fuses need replacement and how many spares should I keep?

Replace a fuse only after it blows from an overload or short on its channel; keep at least nine spare fast-acting glass fuses matching the 1.5 A per-channel rating.
