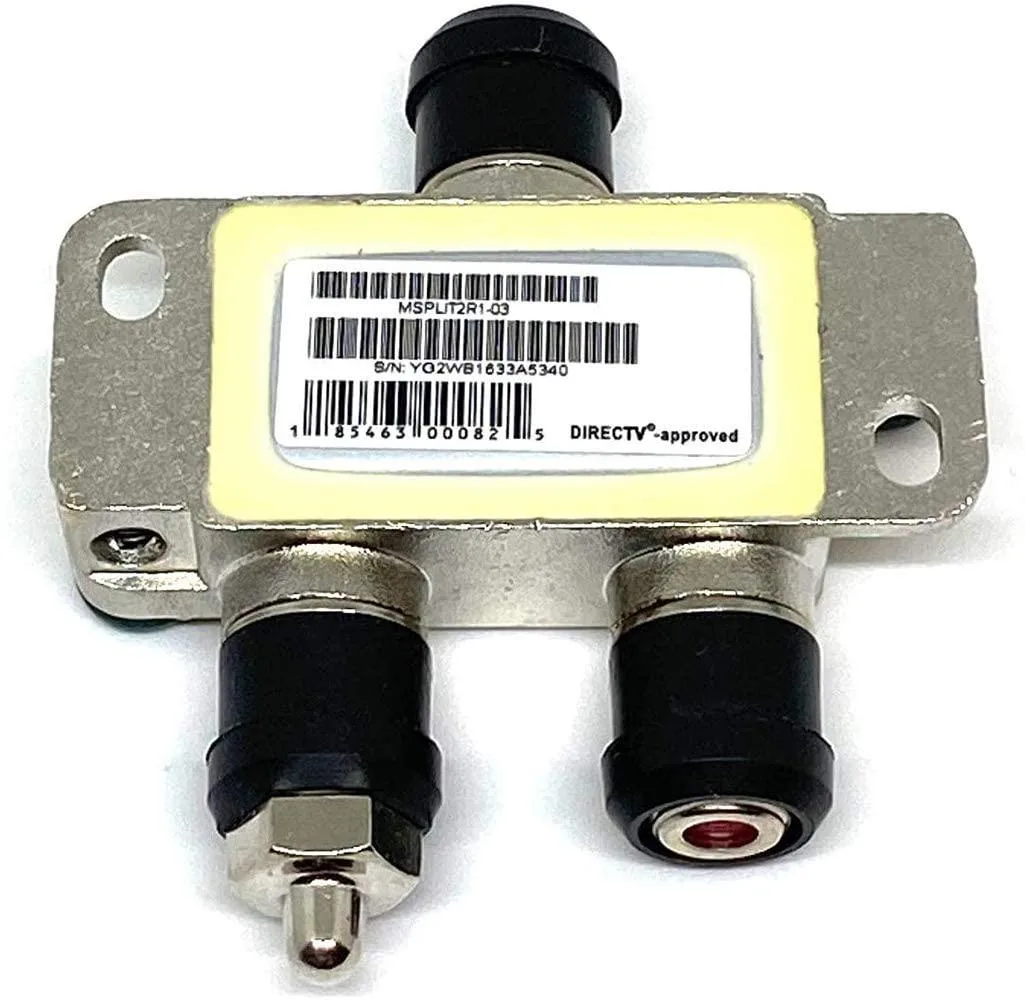

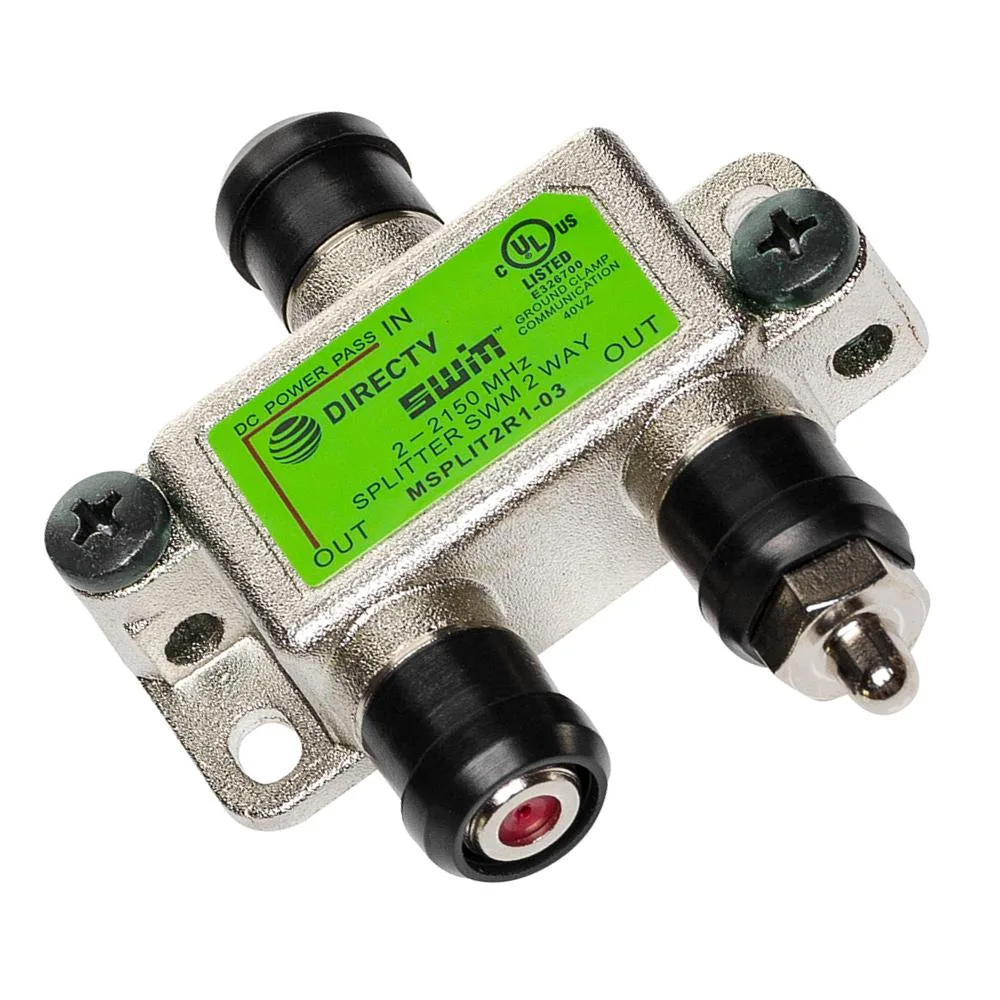

Small silver DIRECTV SWM splitter with red DC port

DIRECTV

DIRECTV 2-Way Wide Band SWM Splitter SPLIT2MRV

SKU CH-BDEA-9S1C2

Distributes satellite signal to two receivers with DC power pass-through on one port for dish or multiswitch feeding

  • ColorSilver
  • Weight0.1
  • DIRECTV approved for Multi Room Viewing compatibility
  • One red port passes 500mA DC power to dish
  • Diode steered protection with grounding port included
  • High isolation between outputs reduces signal interference
  • Wideband 2-way split for SWM dishes or multiswitches

2-Way Wide Band SWM Splitter

The DIRECTV SPLIT2MRV distributes satellite signals from a single SWM dish or multiswitch to two receivers. It is built for DIRECTV Multi Room Viewing installations and carries the provider’s approval for that environment. Installers use it when a single feed must serve two locations indoors or outdoors.

Tool-free coaxial connections

Each port accepts a standard F-type connector that twists on by hand, so no crimping tool or compression fitting is required. The red-marked port passes up to 500mA of DC power back toward the dish or multiswitch, while the second port blocks DC. A grounding lug is provided; forgetting to bond it to the building ground is the most common oversight that leaves the line unprotected.

Splits one SWM feed into two

The splitter handles the full DIRECTV wideband spectrum with high isolation between outputs, keeping each receiver’s channel map clean. It cannot combine signals from two dishes, and it does not amplify — runs beyond the dish’s rated cable length will still need a separate line amplifier. The single DC-pass port limits remote power to one leg, so a second powered device on the other leg would need its own injector.

Highlights

  • DIRECTV approved for Multi Room Viewing compatibility
  • One red port passes 500mA DC power to dish
  • Diode steered protection with grounding port included
  • High isolation between outputs reduces signal interference
  • Wideband 2-way split for SWM dishes or multiswitches

Specifications

BrandDirecTv
Model2waysplitterDirecTV
ColorSilver
Weight0.1

Questions about this item

How can I verify the SPLIT2MRV is passing signal correctly after installation?

Check that each connected DIRECTV receiver acquires satellite signal and displays Multi Room Viewing content without errors; the red port should pass up to 500mA DC back toward the dish or multiswitch.

What comes with the SPLIT2MRV and what must I source separately?

The splitter itself is supplied; you will need coaxial cables, F-type connectors, and a grounding wire for the grounding port, plus a DIRECTV SWM dish or multiswitch to feed the input.

Which version of this 2-way wideband splitter should I choose for my setup?

The SPLIT2MRV is the single approved model for DIRECTV SWM distributions requiring one DC-passing port (red) and a grounding port; no other capacity or variant is offered.
