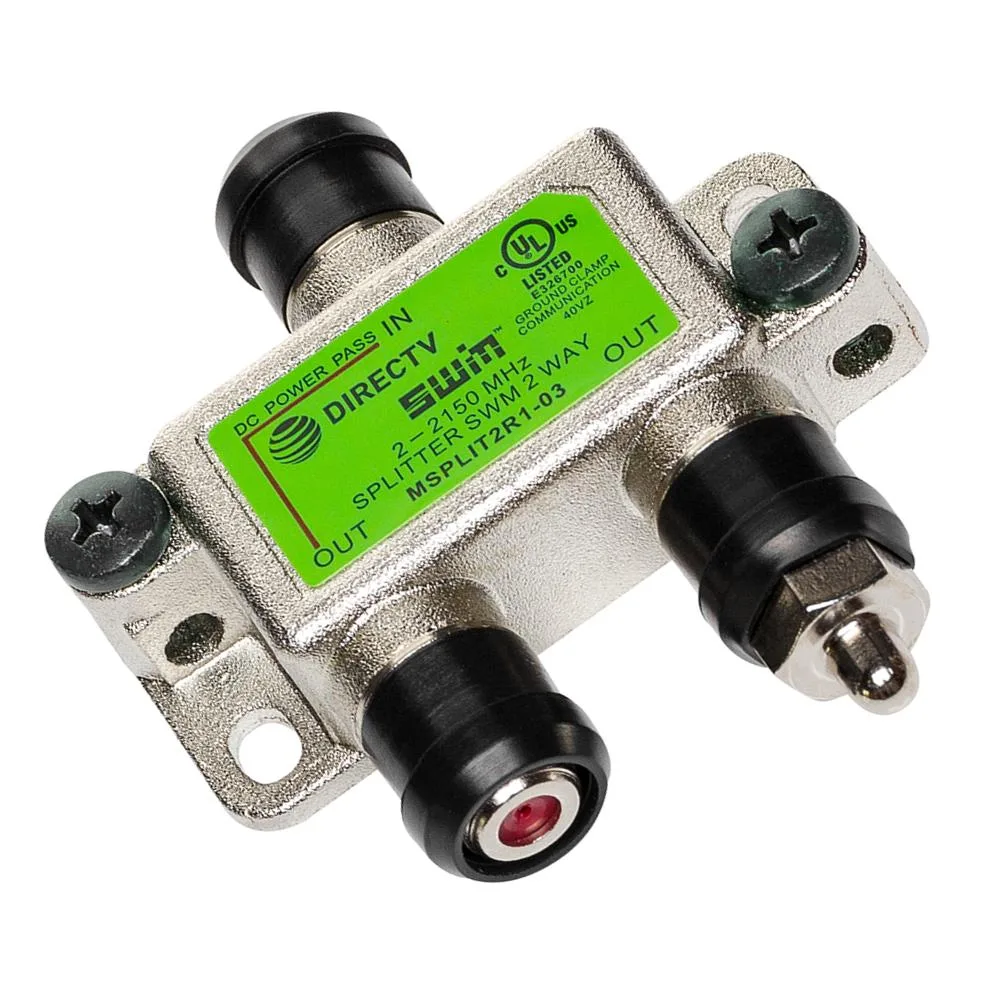

Silver two-way splitter with one red power-passing port

DIRECTV

DIRECTV 2-Way SWM Splitter 2-2150 MHz 1 Port Power Passing Silver

SKU CH-RXB2-VPKXH

Distributes satellite signals to two receivers with one power-passing port up to 2150 MHz

  • ColorSilver
  • Weight0.15
  • DIRECTV approved for Multi Room Viewing
  • 500 mA DC power passes through the red port only
  • Diode steered protection with grounding port included
  • High isolation between outputs maintains signal quality
  • Lightweight at 0.15 lb for easy indoor or outdoor installation

DIRECTV SWM 2-Way Splitter

This 2-way wideband splitter is built for DIRECTV SWM satellite dishes or SWM multi-switches to distribute the signal to receivers. It covers a frequency range of 2-2150 MHz and carries DIRECTV approval for Multi Room Viewing. One port provides a DC path to pass up to 500mA of power back toward the dish or multi-switch. Diode steered protection and a grounding port are included for safe installation.

Indoor and outdoor satellite installs

Installers running a single DIRECTV SWM line to two receivers will find this splitter fits the spec. The silver housing weighs 0.15 units and is designed for straightforward mounting. Buyers who need more than two outputs or a different frequency range should look at another model. It is not suited for non-SWM satellite systems or general-purpose RF distribution outside the stated band.

Two outputs with one power-passing port

The splitter comfortably handles two receiver connections while passing DC power on the red port to the upstream device. High isolation between outputs helps keep each feed clean. Headroom ends at the two-port limit and the 2150 MHz ceiling; additional drops or wider bandwidth require a different device.

Highlights

  • DIRECTV approved for Multi Room Viewing
  • 500 mA DC power passes through the red port only
  • Diode steered protection with grounding port included
  • High isolation between outputs maintains signal quality
  • Lightweight at 0.15 lb for easy indoor or outdoor installation

Specifications

BrandDirecTv
Model2waySWMSplitterV2
ColorSilver
Weight0.15

Questions about this item

Does this splitter need a DIRECTV SWM dish or multi-switch to operate?

Yes, it is designed exclusively for DIRECTV SWM satellite dishes or SWM multi-switches to distribute signals to receivers.

Can the DC power-passing port safely connect to legacy non-SWM equipment?

The red port passes up to 500mA DC back toward the dish or multi-switch; it is intended for SWM systems and includes diode-steered protection with a grounding port.

How do I confirm the splitter is passing signal correctly after installation?

Check that all connected receivers display a strong signal on the 2 to 2150 MHz range and verify the red port shows continuity for DC voltage toward the dish.
