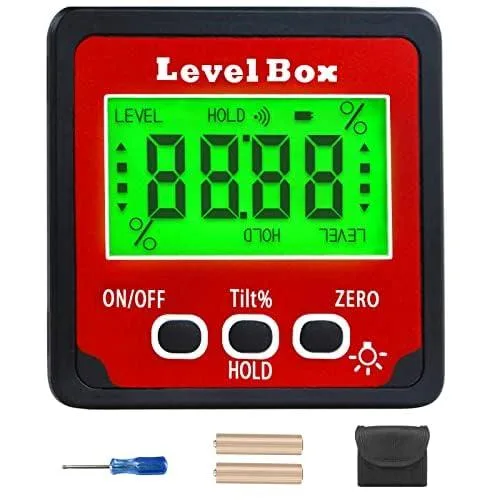

Red digital inclinometer with LCD screen and magnetic base

Digital Inclinometer Angle Finder Gauge IP54 360° ±0.2° LCD

SKU CH-7AJF-B7E1J

IP54 digital inclinometer measures 360° with ±0.2° accuracy and magnetic base

  • Includesbody
  • Measures full 360° range with ±0.2° accuracy
  • IP54 rated for dust and water resistance
  • Magnetic base secures to metal work surfaces
  • LCD reverse contrast readable in low light
  • Operates from 32°F to 122°F temperature range

Digital Inclinometer for Precision Work

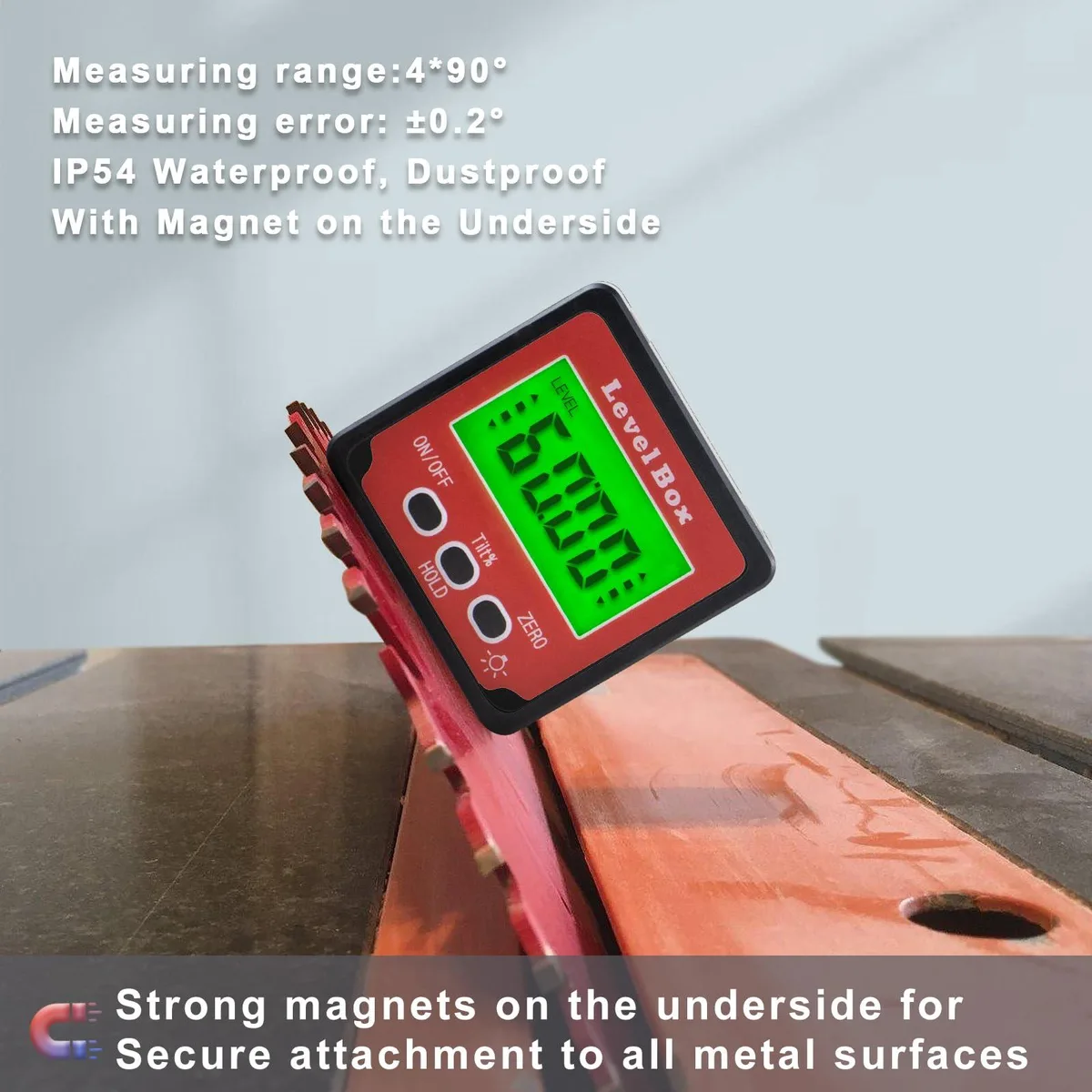

This digital inclinometer provides 360° angle measurement with ±0.2° accuracy and 0.01° resolution for woodworking, automotive maintenance and precise cutting tasks. The IP54 rated stainless steel housing resists dust and water while a magnetic base secures the tool to metal surfaces. It operates reliably from 0°C to 50°C and includes a reverse-contrast LCD for clear reading in low light.

Measurement Limits and Environmental Constraints

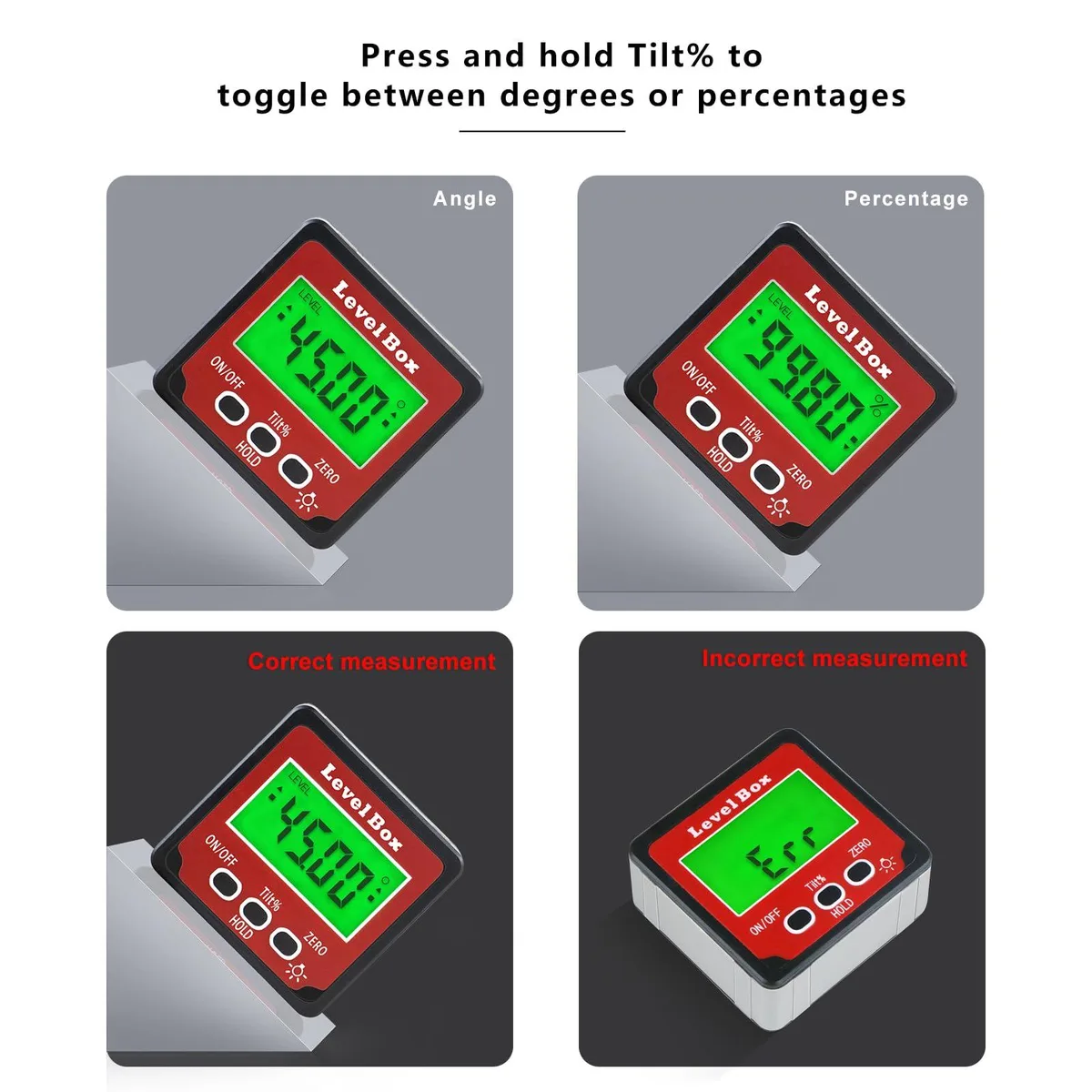

The gauge measures across a full 360° range in four 90° quadrants with stated accuracy of ±0.2° at 90°. It is certified IP54 for dust and water resistance and functions between 0°C and 50°C. The device must not be used flat or at a 45° angle, as it will not operate in those orientations. The magnetic base only attaches to ferromagnetic materials.

Accuracy Specification That Determines Suitability

The critical specification is the ±0.2° true accuracy at 90° combined with 0.01° resolution, which supports CAD and design work requiring fine angular detail. The instrument maintains this accuracy without drifting out of calibration over time. Buyers needing tighter tolerances or measurement at 0° and 45° orientations should consider other solutions.

Highlights

  • Measures full 360° range with ±0.2° accuracy
  • IP54 rated for dust and water resistance
  • Magnetic base secures to metal work surfaces
  • LCD reverse contrast readable in low light
  • Operates from 32°F to 122°F temperature range

Specifications

Includesbody

Questions about this item

Should I pick this model for 360° range or a 90° only gauge?

This model covers 360° in four 90° quadrants with ±0.2° accuracy, so one tool handles every angle you need.

What does the ±0.2° accuracy mean on a table saw?

At any 90° quadrant the reading stays within two-tenths of a degree, giving repeatable bevel cuts without drift.

What does the IP54 rating allow in the workshop?

IP54 means dust cannot interfere and water splashes from any direction will not damage the gauge.
