Black PCIe Wi-Fi 6 card with heatsink, two antennas and Bluetooth cable

DERAPID

DERAPID PCE-AX1800 Wi-Fi 6 PCIe adapter with Bluetooth 5.2

SKU CH-VDNX-WCP8E MPN PCE-AX1800

Adds Wi-Fi 6 and Bluetooth 5.2 to a desktop via PCI Express, delivering up to 1200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with a heat sink and two antennas

  • Wireless Data RatesAX1800
  • Frequency Band2.4 GHz / 5 GHz
  • InterfacePCI Express
  • Wi-Fi 6 delivers up to 1800 Mbps total throughput with 1200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz

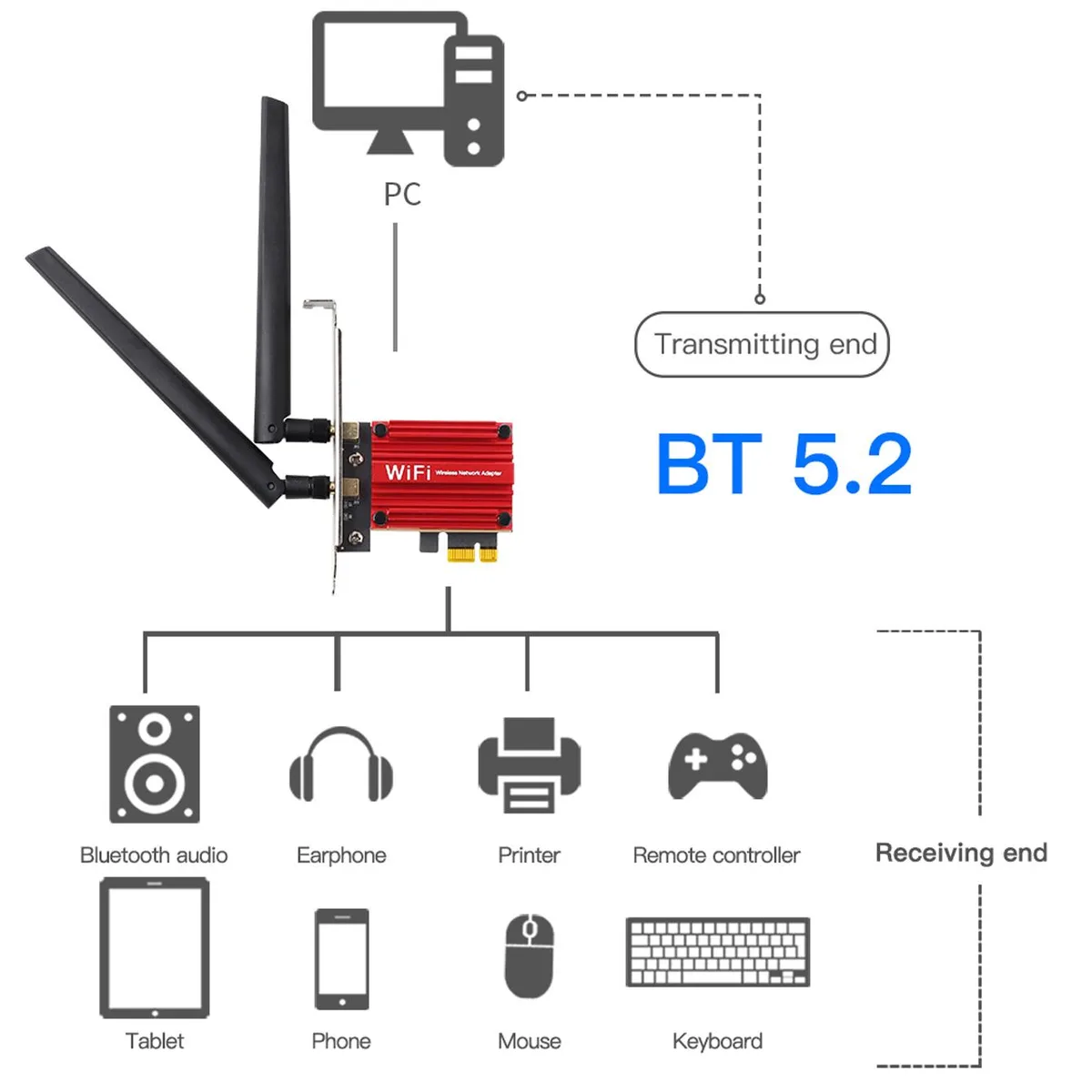

  • Bluetooth 5.2 connects mice, keyboards, headsets and speakers wirelessly to the desktop
  • Dual-band 2.4 GHz and 5 GHz operation with 160 MHz channel support for higher data rates
  • PCIe x1, x4, x8 or x16 slot compatible, includes high/low-profile bracket for flexible installation
  • Windows 10 and 11 64-bit driver support enables immediate use after setup

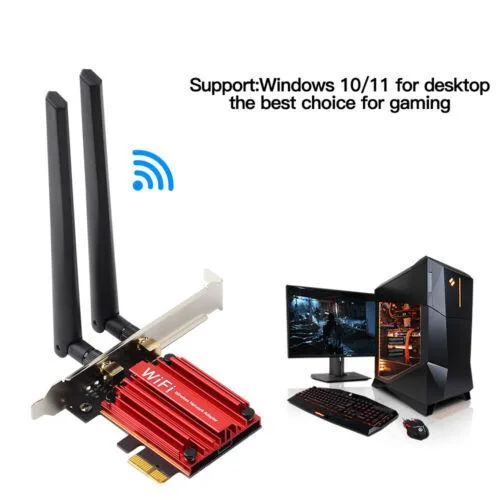

Desktop Wi-Fi 6 upgrade

This PCIe adapter adds AX1800 dual-band Wi-Fi and Bluetooth 5.2 to a desktop PC. It fits any PCI Express x1, x4, x8 or x16 slot and includes a low-profile bracket for small-form-factor cases. The board uses a MediaTek MT7921 chipset and ships with two 6 dBi antennas.

Windows 10 or 11 64-bit desktops only

The driver package supports Windows 10 and 11 64-bit editions; other operating systems are not supported. Bluetooth requires an internal 9-pin USB header on the motherboard, so systems lacking that header cannot use the Bluetooth function. Motherboards with AMD chipsets are explicitly excluded by the manufacturer.

AX1800 dual-band with 160 MHz channel

Maximum link rate reaches 1200 Mbps on 5 GHz when the router provides a 160 MHz channel, or 574 Mbps on 2.4 GHz. MU-MIMO and antenna diversity are supported for more stable throughput in busy environments.

Highlights

  • Wi-Fi 6 delivers up to 1800 Mbps total throughput with 1200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • Bluetooth 5.2 connects mice, keyboards, headsets and speakers wirelessly to the desktop
  • Dual-band 2.4 GHz and 5 GHz operation with 160 MHz channel support for higher data rates
  • PCIe x1, x4, x8 or x16 slot compatible, includes high/low-profile bracket for flexible installation
  • Windows 10 and 11 64-bit driver support enables immediate use after setup

Specifications

Wireless Data RatesAX1800
Frequency Band2.4 GHz / 5 GHz
InterfacePCI Express

Questions about this item

Does the card need an internal USB header on the motherboard for Bluetooth 5.2?

Yes, the black USB Bluetooth cable must connect from the PCI-E adapter board to a motherboard 9-pin interface to enable Bluetooth 5.2 functionality.

What is the correct sequence for installing the adapter and its Bluetooth cable?

Fit the card into any PCI Express X1, X4, X8 or X16 slot, secure the chosen bracket, then connect the black USB cable to the motherboard 9-pin header before powering on.

Are the external antennas replaceable if one gets damaged?

Yes, the two supplied antennas attach via standard connectors and can be swapped for compatible replacements if needed.
