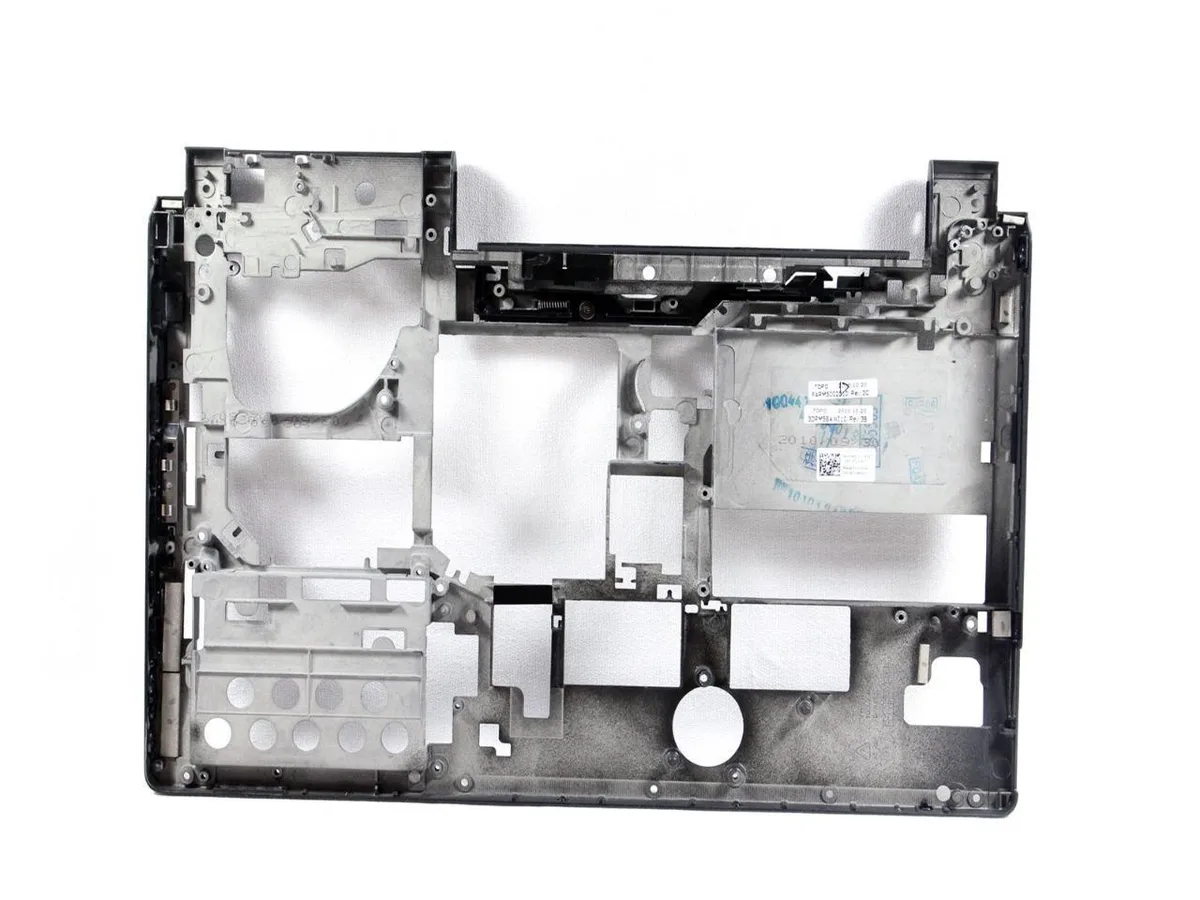

Genuine Dell bottom case for Studio XPS 1640 1645 1647, plastic metal alloy frame with battery latch

DELL

DELL Studio XPS 1640 1645 1647 Bottom Case 3MGD2

SKU CH-VFYC-HJ5TN

Genuine Dell replacement bottom case for Studio XPS 1640, 1645 and 1647 laptops, includes battery latch

  • Accessory TypeBottom Case
  • Genuine Dell replacement ensures exact fit for Studio XPS 1640, 1645, 1647
  • Bottom case includes battery latch for secure power connection
  • Plastic and metal alloy frame restores chassis rigidity
  • OEM part number 3MGD2 matches factory specification
  • Screws and door covers sold separately for flexible repair

Genuine Dell XPS Bottom Case

This genuine Dell bottom case replaces the base frame on Studio XPS 1640, 1645 and 1647 laptops. It is a new, manufacturer-sourced part numbered 3MGD2. The assembly includes the battery latch for direct installation.

For owners of compatible Studio XPS models

This part fits the three listed Dell Studio XPS chassis and restores the structural lower housing. It is not for other Dell series, different XPS generations, or non-Dell laptops. Buyers needing a complete bottom assembly with screws or door covers should look elsewhere, as those items are not supplied.

Dell part number 3MGD2 confirms fit

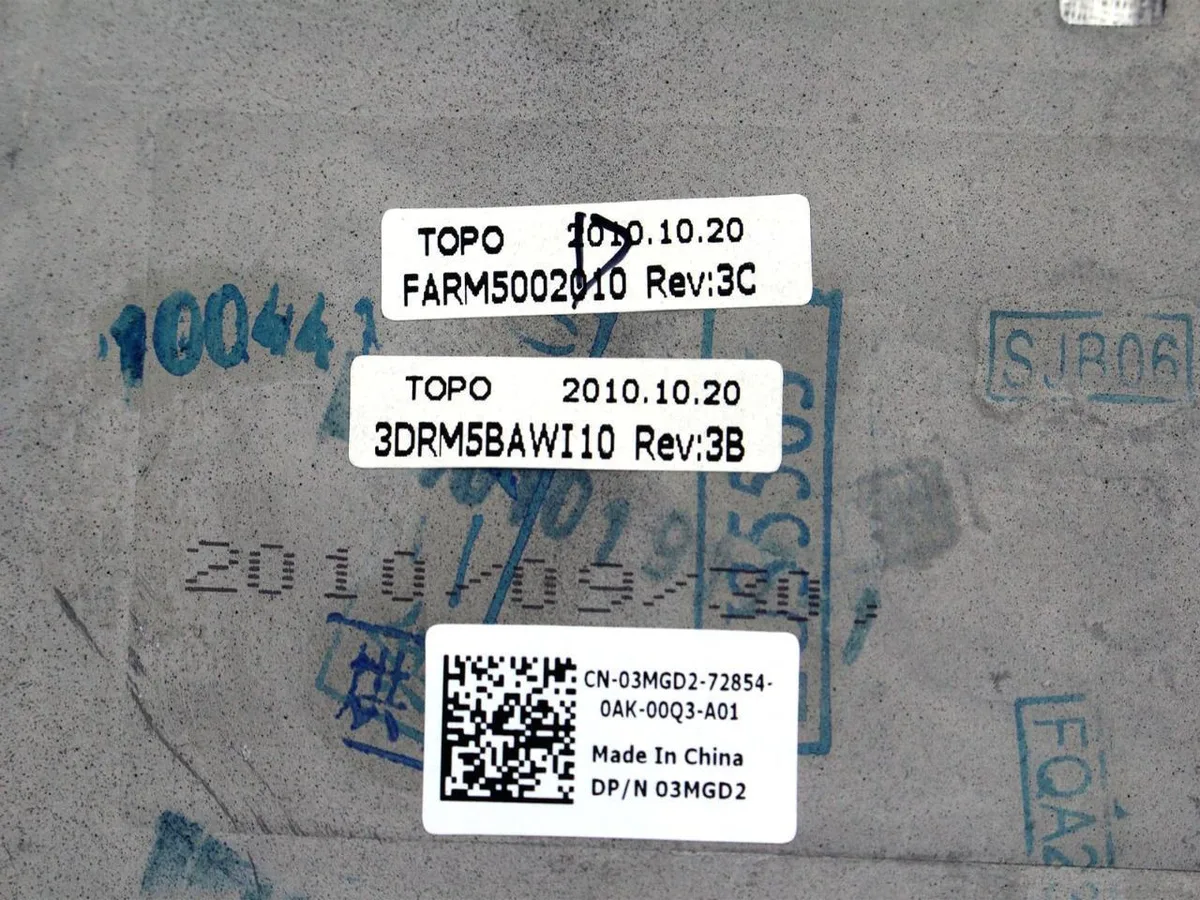

The part number 3MGD2 (also referenced as 03MGD2 and CN-03MGD2) is the single identifier that guarantees compatibility with the Studio XPS 1640, 1645 and 1647. Verify this number against your service tag or existing chassis before ordering.

Highlights

  • Genuine Dell replacement ensures exact fit for Studio XPS 1640, 1645, 1647
  • Bottom case includes battery latch for secure power connection
  • Plastic and metal alloy frame restores chassis rigidity
  • OEM part number 3MGD2 matches factory specification
  • Screws and door covers sold separately for flexible repair

Specifications

BrandDELL
Part Number3MGD2
Accessory TypeBottom Case

Questions about this item

What part number confirms this bottom case fits the Dell Studio XPS 1640, 1645 and 1647?

The Dell part number 3MGD2 (also listed as 03MGD2 and CN-03MGD2) is the exact identifier that guarantees compatibility with Studio XPS 1640, 1645 and 1647 models.

Does the bottom case include the battery latch and all mounting hardware?

The base unit includes the battery latch; however, screws and any door or cover pieces are not supplied and must be sourced separately.

How is the bottom case installed, and which step is most often missed?

Remove the old chassis, transfer internal components into the new 3MGD2 frame, then secure everything — the step frequently missed is reusing the original screws because none are included with the replacement case.
