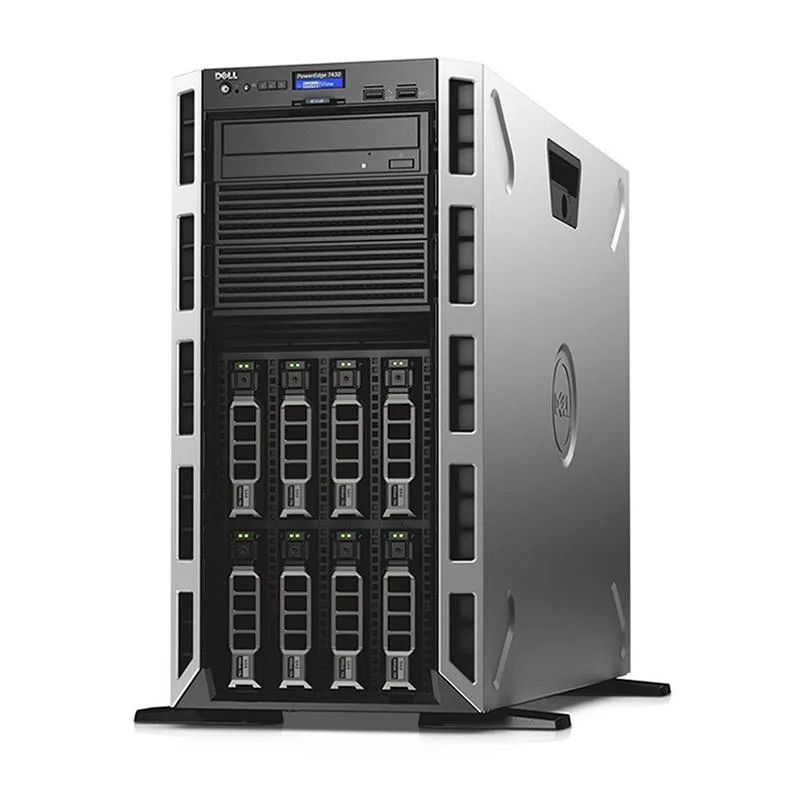

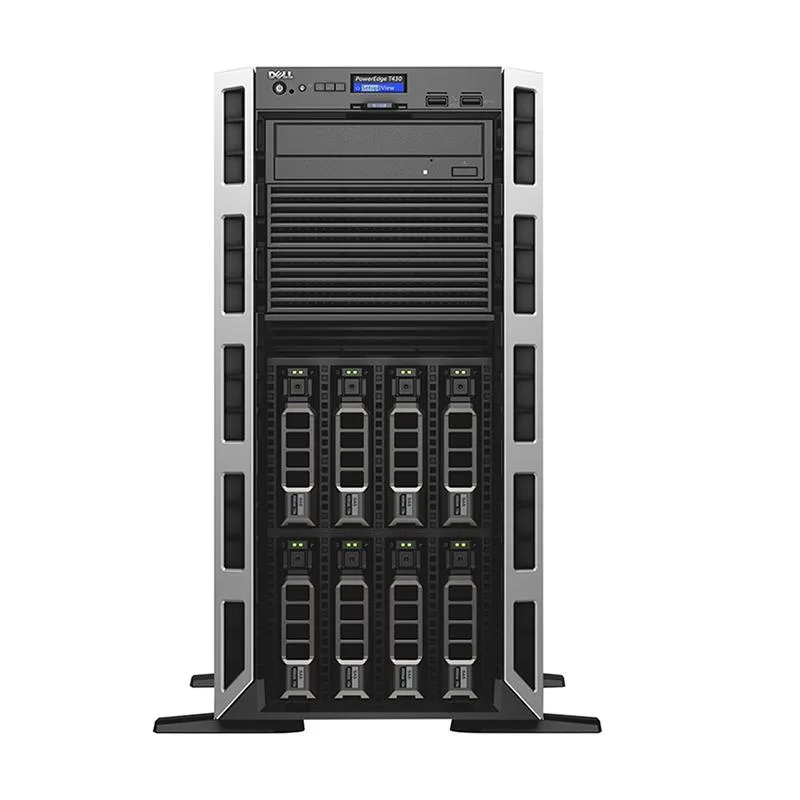

Tower server chassis with eight 3.5-inch drive bays and dual power supplies

DELL

DELL PowerEdge T430 rack server 2x Xeon E5-2695 v4 2.1GHz 18C 256GB DDR4 H730 8x 3.5

SKU CH-534A-DRBY7

Tower server with dual 18-core Xeon CPUs at 2.1 GHz, 256 GB DDR4 ECC memory, H730 RAID controller supporting RAID 0/1/5/6/10/50/60, eight 3.5-inch drive bays, dual 1 GbE ports.

  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • # of Processors InstalledE5-2695 V4
  • Dual Xeon E5-2695 v4 provide 18 cores each at 2.1 GHz with 3.3 GHz Turbo
  • 256 GB DDR4 2400 MHz ECC memory installed across 12 slots supports up to 384 GB
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 for SATA and SAS drives
  • Eight 3.5 inch drive trays ready for hot-swap storage expansion
  • iDRAC8 Express and dual 1 GbE ports give remote management and network connectivity

Dell PowerEdge T430 server for office workloads

The Dell PowerEdge T430 is a tower server configured with two Intel Xeon E5-2695 v4 processors running at 2.1GHz with 18 cores each. It includes 256GB of DDR4 registered ECC memory across eight 32GB modules. The system uses the Intel C610 chipset and supports up to 384GB across 12 slots. Dual 750W platinum power supplies provide redundant hot-swap power.

Suits small offices needing collaborative file

This server fits small office and remote branch locations that run workgroup collaboration, mail, file, print and web serving workloads. The integrated Broadcom 5720 dual-port 1GbE controller and iDRAC 8 Express remote management support these roles. Buyers who require installed hard drives, front bezel, ready rails or plastic feet should source those separately. Organisations needing more than two processors or memory beyond 384GB cannot expand this chassis further.

PERC H730 controller with 1GB cache defines

The Dell PERC H730 mini controller provides 12Gb/s SAS and SATA connectivity with 1GB battery-backed cache. It supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode. Eight 3.5-inch drive trays accept SAS or SATA hard drives or SSDs, but no drives are included. The controller choice determines which RAID levels and drive interfaces are available.

Highlights

  • Dual Xeon E5-2695 v4 provide 18 cores each at 2.1 GHz with 3.3 GHz Turbo
  • 256 GB DDR4 2400 MHz ECC memory installed across 12 slots supports up to 384 GB
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 for SATA and SAS drives
  • Eight 3.5 inch drive trays ready for hot-swap storage expansion
  • iDRAC8 Express and dual 1 GbE ports give remote management and network connectivity

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2695 V4
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8 MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports2 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What thermal limit appears first when both Xeon E5-2695 v4 CPUs run at 3.3 GHz Turbo under sustained load?

The 750 W Platinum power supplies set the ceiling; if combined draw exceeds 750 W the system will throttle to stay within the supply rating.

How loud are the fans when the 18-core processors and 256 GB DDR4 run continuously?

Fan speed ramps with CPU and memory temperature; expect noticeable airflow noise in a quiet office once both 2.1 GHz Xeons sustain heavy utilisation.

Which drives and caddies must I supply to populate the 8-bay 3.5" chassis?

You need 3.5" SAS or SATA drives and Dell 3.5" drive trays; the PERC H730 controller supports RAID 0/1/5/6/10/50/60 but no drives are included.
