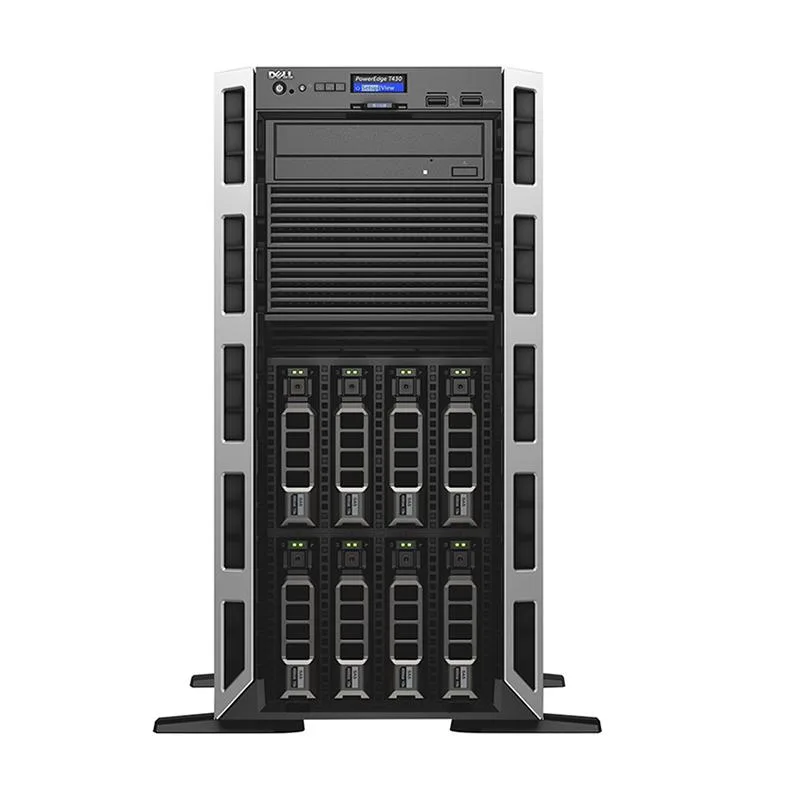

Tall silver tower server with front bezel and eight 3.5 inch drive trays

DELL

DELL PowerEdge T430 5U Tower Server 2x Xeon E5-2620 v4 2.1GHz 64GB DDR4 H730 8x 3.5" Trays

SKU CH-JDKD-H1RG3

A 5U tower server with dual 8-core Xeon processors at 2.1 GHz, 64 GB DDR4 ECC memory, a PERC H730 RAID controller, and eight 3.5-inch drive bays

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD None

  • Dual Xeon E5-2620 v4 CPUs deliver 16 total cores for multi-threaded workloads
  • 64GB DDR4 2133MHz ECC memory supports up to 384GB capacity
  • PERC H730 1GB controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Eight 3.5" SAS/SATA drive trays provide flexible local storage expansion
  • Dual 750W platinum power supplies with iDRAC8 Express remote management

Tower server for small-office workloads

The Dell PowerEdge T430 is a 5U tower system built for workgroup collaboration, mail, file and print serving, and web serving in small or remote offices. It ships with two Intel Xeon E5-2620 v4 2.1 GHz 8-core processors and 64 GB of DDR4 2133 MHz registered ECC memory. The chassis provides eight 3.5-inch SAS/SATA drive trays without installed drives. Dual 750 W platinum power supplies and a front bezel are included.

Sustained load with dual CPUs and RAID controller

Under continuous demand the twin 8-core Xeons can reach 3.0 GHz turbo while the PERC H730 1 GB controller manages RAID 0, 1, 5, 6, 10, 50 and 60 with battery-backed cache. The Intel C610 chipset and twelve memory slots allow expansion to 384 GB DDR4. Integrated Broadcom 5720 dual-port 1 GbE and iDRAC 8 Express give steady remote management and network throughput during long-running tasks.

Check power, rack space

Verify that your site can supply two 750 W circuits and that a 5U tower fits the intended location. The eight trays accept 3.5-inch SAS or SATA drives only; no drives are included. Plastic feet are not supplied. Memory upgrades must use DDR4 registered ECC modules. The LGA 2011-3 sockets support a maximum of two processors.

Highlights

  • Dual Xeon E5-2620 v4 CPUs deliver 16 total cores for multi-threaded workloads
  • 64GB DDR4 2133MHz ECC memory supports up to 384GB capacity
  • PERC H730 1GB controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Eight 3.5" SAS/SATA drive trays provide flexible local storage expansion
  • Dual 750W platinum power supplies with iDRAC8 Express remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power do the dual 750 watt supplies draw when the server runs continuously?

Each supply is rated at 750 watts platinum efficiency; actual draw depends on workload and the number of drives installed.

Which drives and caddies must I supply to populate the eight 3.5 inch bays?

The chassis includes eight trays for 3.5 inch SAS or SATA drives; you provide the drives themselves.

Will my existing PCIe cards fit the available slots on the C610 chipset motherboard?

The board uses the Intel C610 chipset with standard PCIe slots; card compatibility depends on the specific card length and power needs.
