DELL
DELL PowerEdge T430 5U Rack Server 2x Xeon E5-2660 v4 2.0GHz 14 Core 256GB DDR4 H330 8x 2.5" Trays
5U rack server with dual 14-core Xeon processors at 2.0 GHz, 256 GB DDR4 memory, H330 storage controller and eight 2.5-inch drive trays
- TypeRack
- Rack Height5U
- Redundant Hot-swap PowerYes
- CPU TypeIntel Xeon
- CPU Speed2.0GHz (3.2GHz Turbo)
- CPU SocketLGA 2011
- Dual Xeon E5-2660 v4 processors deliver 14 cores each at 2.0GHz
- 256GB DDR4 ECC registered memory supports demanding workloads
- PERC H330 controller manages SAS and SATA drives
- Eight 2.5-inch hot-swap drive trays provide flexible storage capacity
- Dual 750W platinum power supplies with iDRAC 8 Express remote management
Dual 14-Core Xeon Server

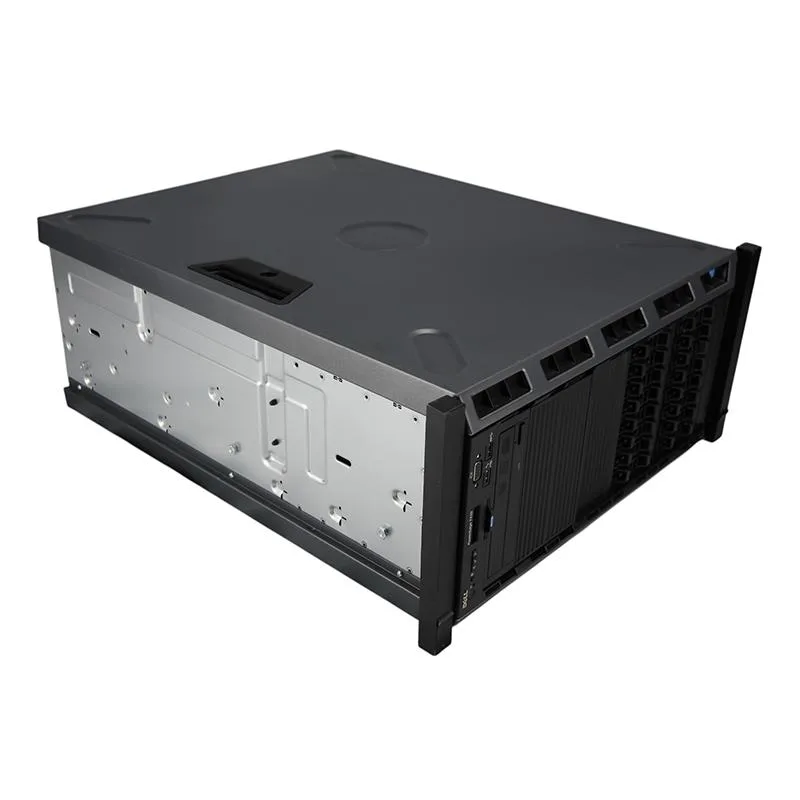

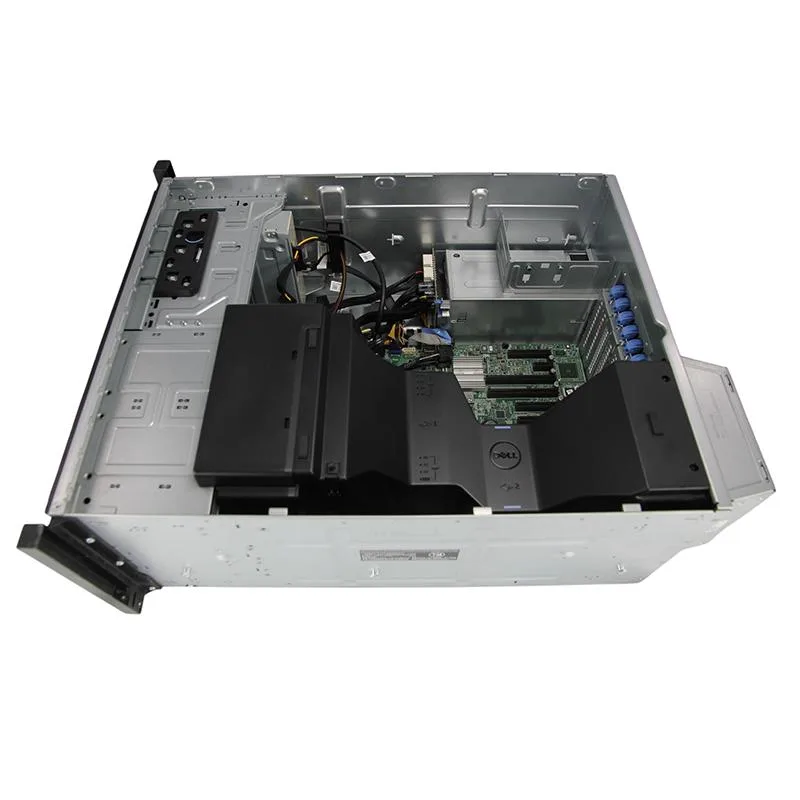

The DELL PowerEdge T430 is a 5U rack server equipped with two Intel Xeon E5-2660 v4 processors running at 2.0 GHz with a 3.2 GHz turbo frequency. It ships with 256 GB of DDR4 memory installed across eight 32 GB modules and includes a Dell PERC H330 storage controller. Eight 2.5-inch drive trays are provided for SAS or SATA devices.
Suits Virtualisation Hosts Not High-Frequency
This system fits organisations consolidating virtual machines, hosting databases or running business applications that benefit from twenty-eight total cores and large memory capacity. Buyers who need higher single-thread clock speeds or support for newer processor generations should consider alternative platforms.
384 GB Maximum Memory Capacity
The server accepts up to 384 GB of DDR4 ECC registered memory across twelve slots, so the installed 256 GB can be expanded when workloads grow. This limit determines whether the chassis can accommodate future memory requirements.
Highlights
- Dual Xeon E5-2660 v4 processors deliver 14 cores each at 2.0GHz
- 256GB DDR4 ECC registered memory supports demanding workloads
- PERC H330 controller manages SAS and SATA drives
- Eight 2.5-inch hot-swap drive trays provide flexible storage capacity
- Dual 750W platinum power supplies with iDRAC 8 Express remote management
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | T430 |
| Type | Rack |
| Rack Height | 5U |
| Redundant Hot-swap Power | Yes |
| CPU Type | Intel Xeon |
| CPU Speed | 2.0GHz (3.2GHz Turbo) |
| CPU Socket | LGA 2011 |
| Number of CPU Cores | 14 Core-Processors |
| CPU Features | E5-2660 v4 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 384GB |
| Number of Memory Slots | 12 |
| Hard Drive (Installed) | None |
| Storage Controller | Dell Perc H330 Controller |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10/50 |
| Ethernet Controller | Integrated Dell 2x1GbE Dual Port Ethernet Adapter |
| Remote Management | iDRAC8 Express |
| LAN Ports | 2 x Ports |
| Management Port | RJ 45 |
| Operating System | No |
Questions about this item
What drive trays are included and do I need to buy hard drives separately?
Eight 2.5-inch hot-swap drive trays are supplied. No hard drives or SSDs are installed, so you must purchase storage drives separately.
Should I choose the 256 GB configuration or add more DDR4 memory?
The server arrives with 256 GB across eight 32 GB DDR4-2400 ECC RDIMMs using eight of twelve slots. You can expand to 384 GB by filling the remaining four slots with matching modules.
How does the dual 14-core Xeon E5-2660 v4 at 2.0 GHz perform in a virtualization host?
Twenty-eight cores at 2.0 GHz base and 3.2 GHz turbo give strong multi-thread throughput for VMware ESXi, Hyper-V or Proxmox VE, while the H330 controller manages SAS or SATA arrays for virtual disks.
