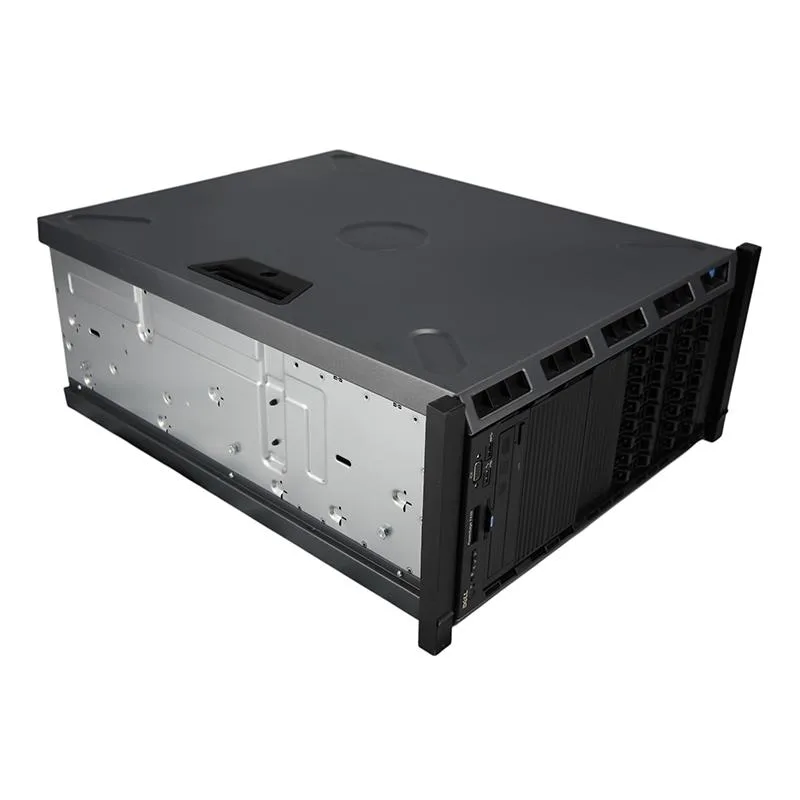

Silver 5U rack server with sixteen 2.5 inch drive bays and dual power supplies

DELL

DELL PowerEdge T430 5U rack server 2x Xeon E5-2650 v4 2.2GHz 12C 256GB DDR4 H330 16x 2.5" bays 2x 750W

SKU CH-D4XR-YG8TA

Dual Xeon 12-core 2.2 GHz server with 256 GB DDR4, H330 controller and sixteen 2.5-inch bays

  • TypeRack
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.2GHz (2.9GHz Turbo)
  • CPU SocketLGA 2011
  • Dual 12-core Xeon E5-2650 v4 CPUs deliver 24 threads at 2.2 GHz base and 2.9 GHz turbo
  • 256 GB DDR4-2400 ECC registered memory installed across 8 DIMM slots with room to reach 384 GB
  • PERC H330 12 Gb/s SAS/SATA controller manages up to 16 hot-swap 2.5-inch drive bays
  • iDRAC 8 Express provides remote lifecycle management and monitoring without an OS
  • Two 750 W platinum-efficiency hot-swap power supplies ensure redundant power delivery

Dual Xeon E5-2650 v4 compute platform

The Dell PowerEdge T430 arrives as a 5U rack server fitted with two Intel Xeon E5-2650 v4 processors. Each CPU provides twelve cores running at 2.2 GHz with a 2.9 GHz turbo frequency. The system includes 256 GB of DDR4-2400 ECC registered memory across eight 32 GB modules. A PERC H330 controller manages up to sixteen 2.5-inch drive bays. This configuration targets virtualization hosts, database workloads and business-critical applications that need dual-socket performance and dense storage capacity.

Redundant 750 W platinum power supplies

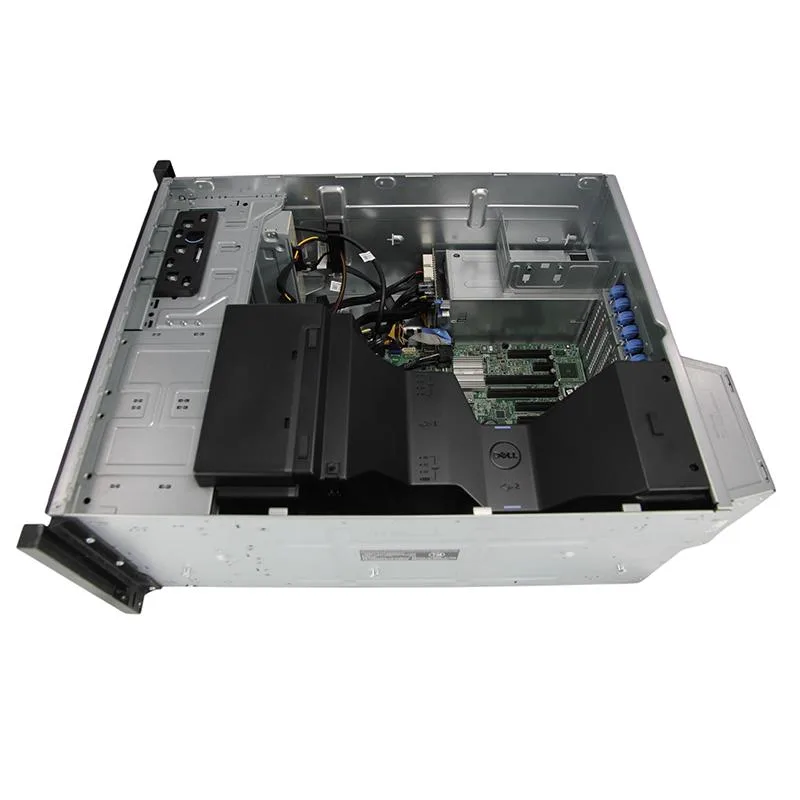

Two hot-swap 750 watt platinum-efficiency power supplies deliver redundant power for continuous operation. The 5U chassis accommodates the dual-processor thermal design with front-to-rear airflow. Integrated dual-port gigabit Ethernet handles network traffic while iDRAC 8 Express provides out-of-band remote management. The server supports optional rack conversion for flexible deployment in tower or rack environments.

Sixteen drive trays and PERC H330 RAID

Sixteen Dell 2.5-inch drive trays are included for immediate SAS or SATA drive installation. The PERC H330 controller enables hardware RAID across all bays without additional licensing. iDRAC 8 Express simplifies firmware updates, hardware monitoring and remote console access. The front bezel and ready rails are not supplied, so rack mounting hardware must be sourced separately. Maximum memory capacity reaches 384 GB across twelve DIMM slots.

Highlights

  • Dual 12-core Xeon E5-2650 v4 CPUs deliver 24 threads at 2.2 GHz base and 2.9 GHz turbo
  • 256 GB DDR4-2400 ECC registered memory installed across 8 DIMM slots with room to reach 384 GB
  • PERC H330 12 Gb/s SAS/SATA controller manages up to 16 hot-swap 2.5-inch drive bays
  • iDRAC 8 Express provides remote lifecycle management and monitoring without an OS
  • Two 750 W platinum-efficiency hot-swap power supplies ensure redundant power delivery

Specifications

BrandDELL
SeriesPowerEdge
ModelT430
TypeRack
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.2GHz (2.9GHz Turbo)
CPU SocketLGA 2011
Number of CPU Cores12 Core-Processors
CPU FeaturesE5-2650 v4
# of Processors Installed2
MAX Processors2
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
Remote ManagementiDRAC8 Express
LAN Ports2 x Ports
Management PortRJ 45
Operating SystemNo

Questions about this item

How do I install the PERC H330 controller and what step do people often miss?

The PERC H330 installs into a PCIe slot; the step many miss is connecting the SAS cables from the controller to the backplane before closing the chassis.

Which components will need replacement first during the server's life?

The two 750 W Platinum power supplies and the cooling fans are the field-replaceable units most likely to need swapping after extended operation.

What thermal or power limit appears first when both Xeon E5-2650 v4 CPUs run at 2.9 GHz Turbo continuously?

The 750 W power supply rating is the first ceiling reached; sustained dual-CPU Turbo can draw enough power to trigger throttling before the cooling system saturates.
