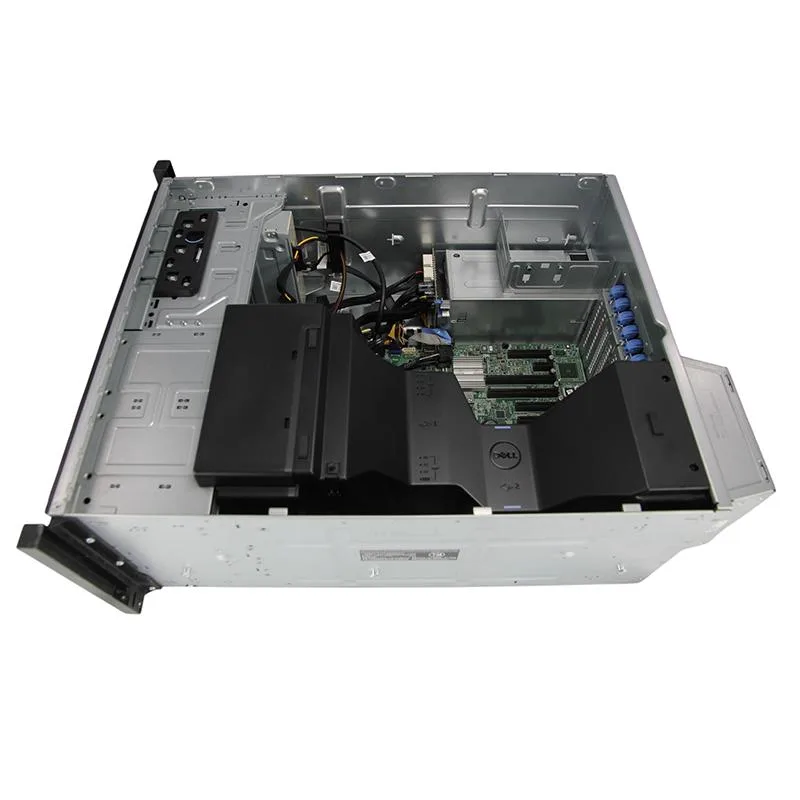

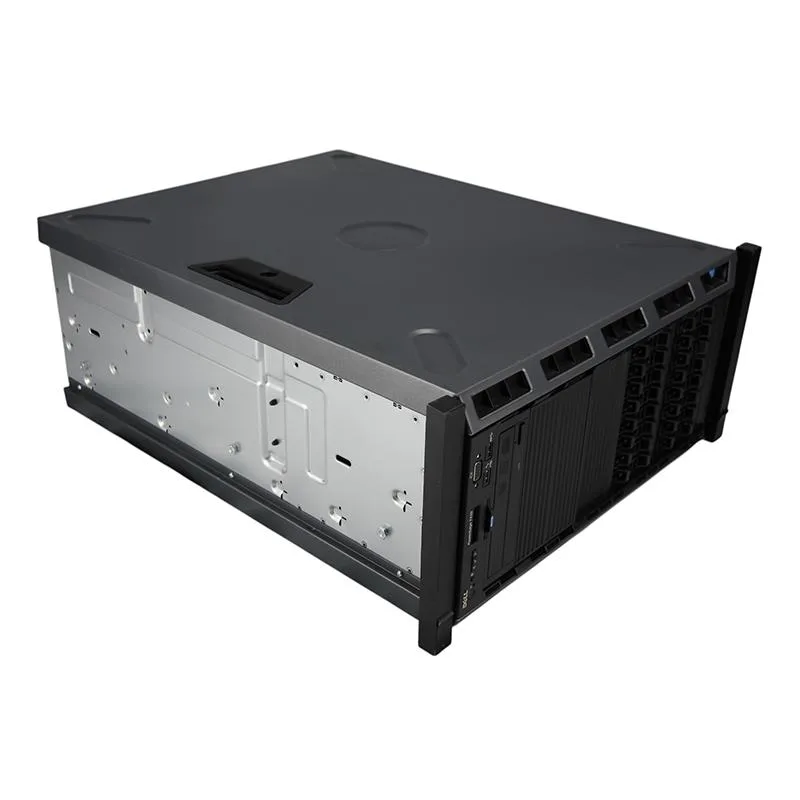

Silver 5U rack server chassis with front drive bays and dual power supplies

DELL

DELL PowerEdge T430 5U rack server 2x Xeon E5-2650 v4 2.2GHz 12-core 64GB DDR4 H730P 8x 2.5" trays 2x 750W PSU

SKU CH-NTPE-SP1KJ

5U tower server with dual 12-core Xeon processors at 2.2 GHz, 64 GB DDR4 ECC memory, H730P RAID controller, eight 2.5-inch drive trays and redundant 750 W power supplies

  • TypeRack
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.2GHz (2.9GHz Turbo)
  • CPU SocketLGA 2011
  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2GHz base with 2.9GHz turbo for heavy workloads
  • 64GB DDR4-2400 ECC registered memory protects data integrity and scales to 384GB across 12 slots
  • PERC H730P 2GB controller enables RAID 0/1/5/6/10/50/60 across 16 hot-swap 2.5-inch bays
  • Dual 750W platinum power supplies provide redundant hot-swap power for continuous uptime
  • iDRAC 8 Express gives remote management and lifecycle control from anywhere

Dual-processor 5U server for virtualisation

The Dell PowerEdge T430 arrives as a 5U rack system equipped with two Intel Xeon E5-2650 v4 processors running at 2.2 GHz with a 2.9 GHz turbo. Twelve cores per CPU and 64 GB of DDR4-2400 ECC registered memory across four modules provide a solid base for VMware ESXi, Hyper-V or Proxmox VE clusters, SQL databases and file services. The chassis supports up to 384 GB across twelve slots when workloads expand.

Hot-swap drive bays and redundant platinum power

Sixteen 2.5-inch hot-swap bays are present, with eight Dell 13G drive trays installed and a PERC H730P 2 GB controller offering RAID 0, 1, 5, 6, 10, 50, 60 and pass-through modes for SAS and SATA media. Dual 750 W platinum-efficiency power supplies are hot-swappable, so a failed unit can be replaced without downtime. The front bezel and ready rails are not included, so rack mounting hardware must be sourced separately.

Remote management and dual gigabit networking

Integrated iDRAC 8 Express with Lifecycle Controller enables out-of-band monitoring, firmware updates and remote console access over a dedicated network port. Two onboard 1 GbE ports handle production traffic or management segregation without extra NICs. PCIe slots remain free for additional RAID, networking or accelerator cards as requirements change.

Highlights

  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2GHz base with 2.9GHz turbo for heavy workloads
  • 64GB DDR4-2400 ECC registered memory protects data integrity and scales to 384GB across 12 slots
  • PERC H730P 2GB controller enables RAID 0/1/5/6/10/50/60 across 16 hot-swap 2.5-inch bays
  • Dual 750W platinum power supplies provide redundant hot-swap power for continuous uptime
  • iDRAC 8 Express gives remote management and lifecycle control from anywhere

Specifications

BrandDELL
SeriesPowerEdge
ModelT430
TypeRack
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.2GHz (2.9GHz Turbo)
CPU SocketLGA 2011
Number of CPU Cores12 Core-Processors
CPU FeaturesE5-2650 v4
# of Processors Installed2
MAX Processors2
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730P 2GB Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
Remote ManagementiDRAC8 Express
LAN Ports2 x Ports
Management PortRJ 45
Operating SystemNo

Questions about this item

Does the PERC H730P controller use 12 Gb/s SAS to cap drive throughput?

The PERC H730P is a 12 Gb/s SAS and SATA controller with 2 GB cache and battery backup, supporting RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode.

How many 2.5 inch drive trays are included for the 16-bay chassis?

Eight 2.5 inch drive trays are supplied; the remaining eight bays will need additional trays to populate all 16 hot-swap slots.

What is required to install the server in a standard rack?

A separate rack conversion kit is required; the unit ships without front bezel or ready rails for rack mounting.
