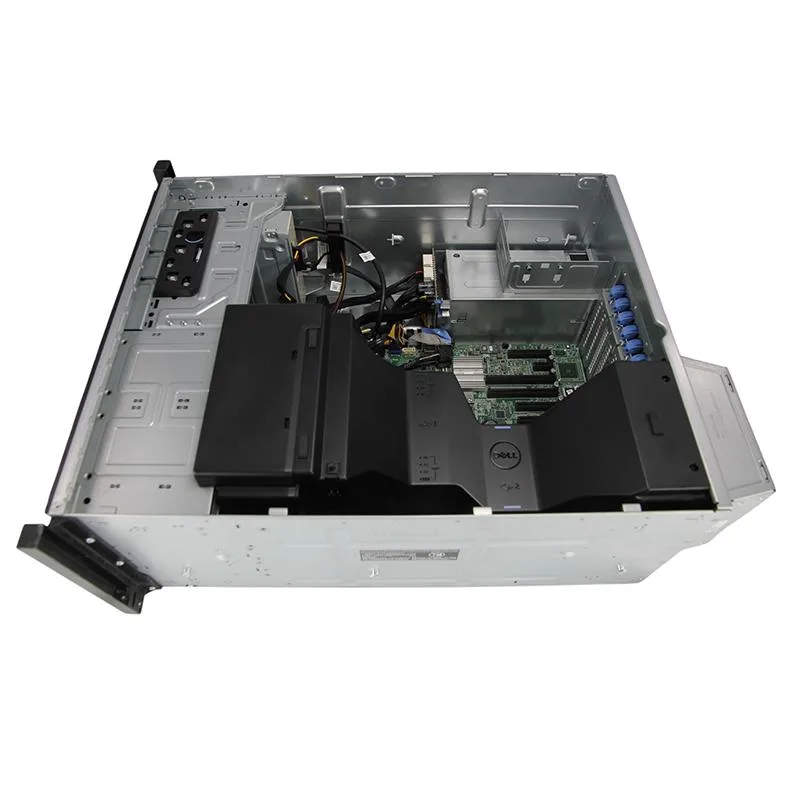

Tower server in dark grey metal with front drive bays and bezel removed

DELL

DELL PowerEdge T430 5U Rack Server 2x Xeon E5-2650 v4 2.2GHz 12 Core 16GB DDR4 H730P 4x 1.92TB SSD

SKU CH-2HH4-3S6JW

A 5U rack server with dual 12-core Xeon E5-2650 v4 CPUs at 2.2 GHz, 16 GB DDR4, H730P RAID controller and four 1.92 TB SATA SSDs

  • TypeRack
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.2GHz (2.9GHz Turbo)
  • CPU SocketLGA 2011
  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2GHz base
  • PERC H730P controller supports RAID 0/1/5/6/10/50/60 for flexible data protection
  • Four 1.92TB enterprise SSDs provide high-capacity solid-state storage
  • 16GB DDR4 ECC registered memory expandable to 384GB across 12 slots
  • Dual 750W platinum power supplies with hot-swap redundancy ensure uptime

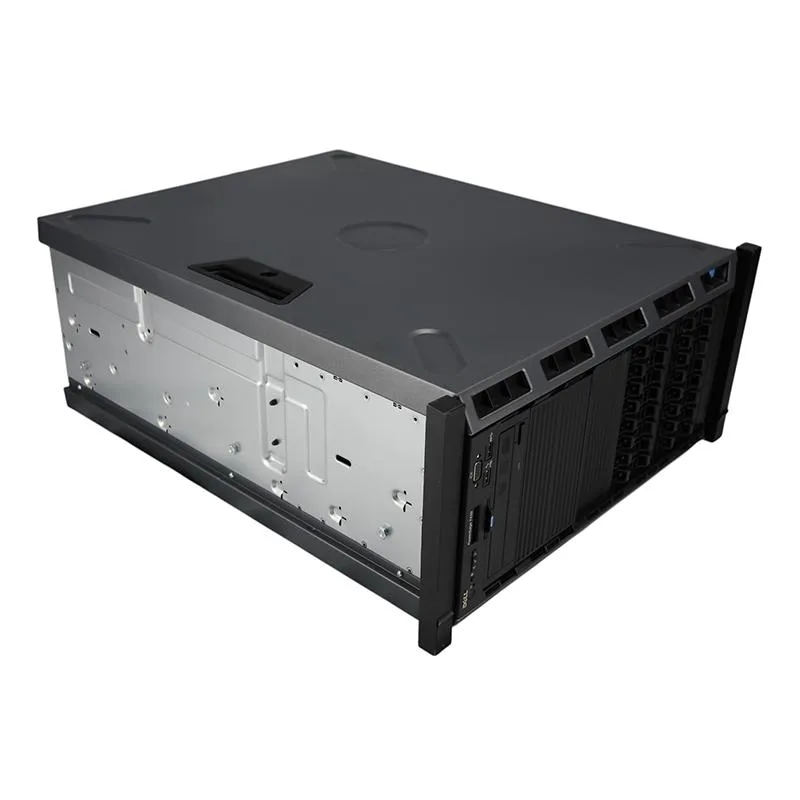

DELL PowerEdge T430 5U dual Xeon server

The DELL PowerEdge T430 is a 5U rack server populated with two Intel Xeon E5-2650 v4 processors. Each CPU delivers twelve cores at a base frequency of 2.2GHz and a turbo frequency of 2.9GHz. The system ships with 16GB of DDR4-2400 ECC registered memory across twelve available slots.

Suited for virtualisation and database workloads

This configuration supports RAID levels 0, 1, 5, 6, 10, 50 and 60 through the PERC H730P controller with 2GB cache. Buyers who require more than sixteen 2.5-inch drive bays or a higher installed memory capacity should consider a different platform.

PERC H730P controller with 2GB cache

The storage controller manages four 1.92TB SATA solid-state drives using a 12Gb/s SAS/SATA interface. It provides hardware RAID with battery-backed cache and supports pass-through mode for software-defined storage configurations.

Highlights

  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2GHz base
  • PERC H730P controller supports RAID 0/1/5/6/10/50/60 for flexible data protection
  • Four 1.92TB enterprise SSDs provide high-capacity solid-state storage
  • 16GB DDR4 ECC registered memory expandable to 384GB across 12 slots
  • Dual 750W platinum power supplies with hot-swap redundancy ensure uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelT430
TypeRack
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.2GHz (2.9GHz Turbo)
CPU SocketLGA 2011
Number of CPU Cores12 Core-Processors
CPU FeaturesE5-2650 v4
# of Processors Installed2
MAX Processors2
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA
SSD (Installed)4 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
Remote ManagementiDRAC8 Express
LAN Ports2 x Ports
Management PortRJ 45
Operating SystemNo

Questions about this item

How do the two 12-core Xeon E5-2650 v4 processors running at 2.2 GHz perform in a live server?

Dual sockets give 24 physical cores at 2.2 GHz base and 2.9 GHz turbo, providing strong multi-threaded throughput for virtualization and database workloads.

What RAID levels and drive speeds does the PERC H730P 2 GB controller actually support?

The H730P handles RAID 0 1 5 6 10 50 60 and pass-through at 12 Gb/s SAS or 6 Gb/s SATA, so the four 1.92 TB SSDs can run in any of those arrays.

What physical space and rails are needed to mount this 5U tower in a standard rack?

The chassis occupies 5U of rack height and uses 2.5-inch hot-swap bays; a separate rack conversion kit is required because ready rails are not included.
