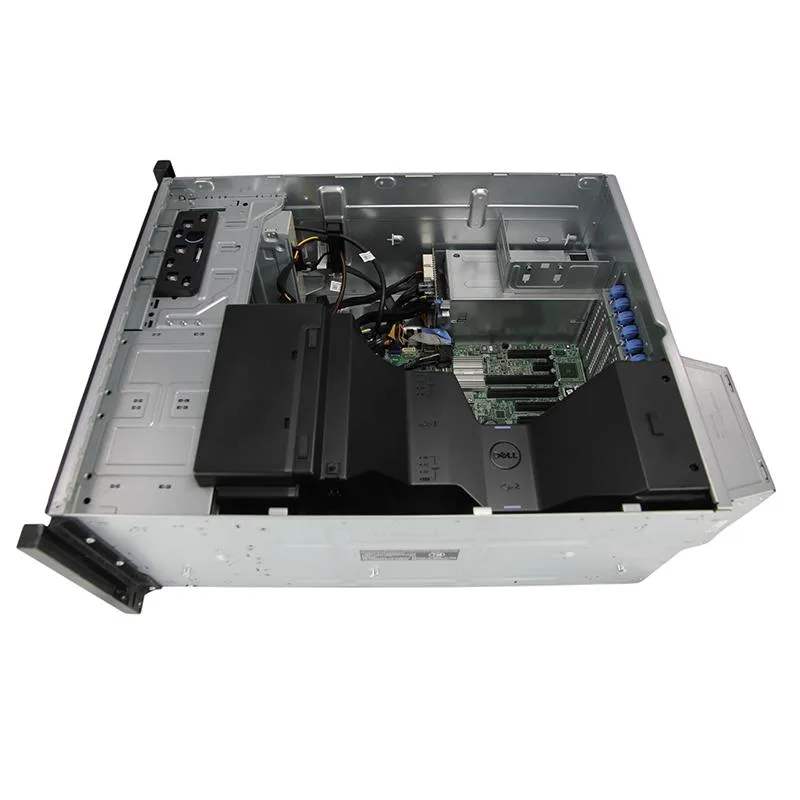

Tall silver 5U rack server with front drive bays and dual power supplies

DELL

DELL PowerEdge T430 5U rack server 2× Xeon E5-2660 v4 2.0GHz 14-core 128GB DDR4 H330 4× 2.5" trays 2× 750W PSU

SKU CH-P1X6-0WEBE

5U rack server with dual 14-core Xeon E5-2660 v4 processors at 2.0 GHz, 128 GB DDR4, H330 controller, four 2.5" trays and dual 750 W power supplies

  • TypeRack
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.0GHz (3.2GHz Turbo)
  • CPU SocketLGA 2011
  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy workloads
  • 128 GB DDR4-2400 ECC registered memory installed, expandable to 384 GB
  • PERC H330 12 Gb/s SAS/SATA controller with four 2.5" hot-swap trays
  • iDRAC 8 Express remote management for out-of-band server control
  • Redundant 750 W platinum-efficiency hot-swap power supplies for continuous uptime

PowerEdge T430 dual-socket server

The Dell PowerEdge T430 is a 5U rack-mount server equipped with two Intel Xeon E5-2660 v4 processors running at 2.0 GHz with 3.2 GHz turbo and 14 cores each. It ships with 128 GB of DDR4 ECC registered memory across eight 16 GB modules and a PERC H330 storage controller. Four 2.5-inch hot-swap drive trays are included in the 16-bay chassis.

Virtualisation hosts needing dense CPU cores

This server suits organisations running VMware ESXi, Hyper-V or Proxmox VE clusters that benefit from 28 total cores and large memory capacity. The dual 750 W platinum power supplies provide redundancy for continuous operation. Buyers who need populated drives, a RAID battery-backed cache, or a front bezel and rack rails should look elsewhere as those items are not included.

28 cores and 128 GB DDR4 decide fit

The combination of two 14-core Xeon E5-2660 v4 CPUs and 128 GB of DDR4-2400 ECC registered memory determines whether this system matches the workload. Memory can be expanded to 384 GB across 12 slots if the application demands more capacity.

Highlights

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy workloads
  • 128 GB DDR4-2400 ECC registered memory installed, expandable to 384 GB
  • PERC H330 12 Gb/s SAS/SATA controller with four 2.5" hot-swap trays
  • iDRAC 8 Express remote management for out-of-band server control
  • Redundant 750 W platinum-efficiency hot-swap power supplies for continuous uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelT430
TypeRack
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.0GHz (3.2GHz Turbo)
CPU SocketLGA 2011
Number of CPU Cores14 Core-Processors
CPU FeaturesE5-2660 v4
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
Ethernet ControllerIntegrated Dell 2x1GbE Dual Port Ethernet Adapter
Remote ManagementiDRAC8 Express
LAN Ports2 x Ports
Management PortRJ 45
Operating SystemNo

Questions about this item

How many 2.5" drive trays are included for the 16-bay chassis?

Four 2.5" trays are supplied; the remaining twelve bays will need additional trays before drives can be installed.

What is the correct order for seating the two Xeon E5-2660 v4 processors and the 128GB DDR4 memory kits?

Install both processors first, then populate the twelve DIMM slots evenly across the two CPU channels following the silkscreen guide.

When should the PERC H330 controller battery module be checked or replaced?

The H330 uses a non-volatile cache and does not require a battery module, so no scheduled battery replacement is needed.
