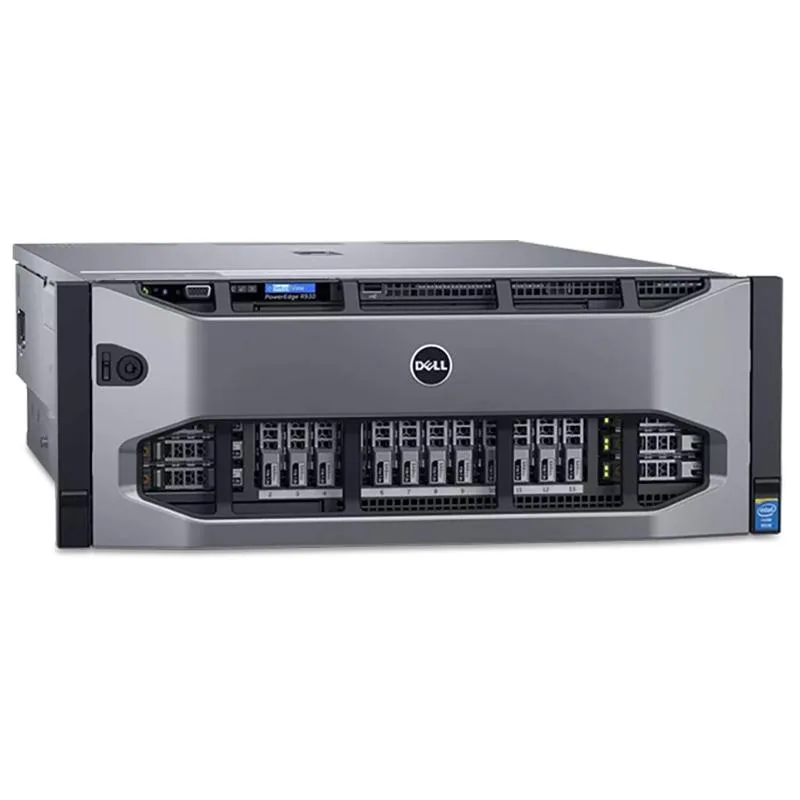

Silver 4U rack server with front bezel, four drive bays and dual handles

DELL

DELL PowerEdge R930 4U rack server 4x Xeon E7-8890 v4 2.2GHz 24C 3TB DDR4 4x 1.92TB SSD H730P

SKU CH-VWZF-XQ6YM

A 4U rack server with four 24-core Xeon processors at 2.2 GHz, 3 TB DDR4 memory, four 1.92 TB SATA SSDs on an H730P RAID controller, quad-port 1/10 GbE networking, iDRAC8 Enterprise management.

  • Rack Height4U
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores24-Core Processor
  • # of Processors Installed4
  • 96 cores from 4 Xeon E7-8890 v4 processors handle heavy workloads
  • 3TB DDR4 ECC memory supports large in-memory databases
  • H730P controller enables RAID 0/1/5/6/10/50/60 for data protection
  • 4x 1.92TB SATA SSDs provide fast enterprise storage
  • Quad-port X520/I350 card delivers 2x 1GbE and 2x 10Gb SFP+ connectivity

Dense four-socket compute platform

The Dell PowerEdge R930 is a 4U rack server that fits four Intel Xeon E7-8890 v4 processors, each with 24 cores running at 2.2 GHz and a 3.4 GHz turbo. It ships with 3 TB of DDR4 registered ECC memory across 96 slots and a PERC H730P controller with 2 GB cache driving four 1.92 TB SATA SSDs in a choice of RAID levels from 0 to 60. Quad-port networking adds two 1 GbE and two 10 Gb SFP+ links, while iDRAC8 Enterprise handles remote management.

Suited for memory-bound consolidation.

This server targets organisations that need maximum core count and memory capacity in a single chassis for in-memory databases, virtualisation hosts or ERP systems such as SAP HANA and Oracle. Buyers who require GPU acceleration, front-accessible NVMe bays beyond the factory configuration, or a smaller rack footprint should evaluate alternative platforms. The Matrox G200 graphics with 8 MB video memory only supports basic console output.

3 TB memory today, 12 TB ceiling ahead

The installed 3 TB (96 × 32 GB DDR4) fills every slot, so any expansion means replacing modules rather than adding them. The controller supports up to 24 hot-plug 2.5-inch SAS or SATA drives, giving ample headroom for storage growth beyond the four 1.92 TB SSDs supplied. Four 1100 W platinum power supplies provide redundancy for fully populated configurations.

Highlights

  • 96 cores from 4 Xeon E7-8890 v4 processors handle heavy workloads
  • 3TB DDR4 ECC memory supports large in-memory databases
  • H730P controller enables RAID 0/1/5/6/10/50/60 for data protection
  • 4x 1.92TB SATA SSDs provide fast enterprise storage
  • Quad-port X520/I350 card delivers 2x 1GbE and 2x 10Gb SFP+ connectivity

Specifications

BrandDELL
SeriesPowerEdge R930
Rack Height4U
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011
Number of CPU Cores24-Core Processor
# of Processors Installed4
MAX Processors4
ChipsetIntel C602J
Installed Memory Size3TB
Memory TypeDDR4
Max Memory Capacity12TB
Number of Memory Slots96
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA
SSD (Installed)4 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server need any extra rails or brackets before it can be mounted in a standard 4U rack?

Ready Rails and a front bezel are included with the R930, so no additional mounting hardware is required for a standard 4U rack installation.

Can the existing 1.92 TB SATA SSDs share the backplane with older 2.5" SAS drives if I keep them?

The PERC H730P controller supports mixed SAS and SATA drives on the same 2.5" hot-plug backplane, allowing the installed SSDs to coexist with legacy SAS disks.

How can I confirm the 3 TB of DDR4 memory is recognised and running at 2400 MHz after power-on?

Open the iDRAC8 Enterprise interface or enter the BIOS; both will display the full 96 DIMM population, 3 TB total capacity and 2400 MHz operating speed.
