DELL
DELL PowerEdge R930 4U rack server 4x Xeon E7-8867 v4 2.4GHz 16-core 384GB DDR4 24x 1.92TB SSD H730P
4U rack server with four 16-core Xeon E7-8867 v4 CPUs, 384 GB DDR4 ECC memory, PERC H730P RAID controller and 24 enterprise 1.92 TB SATA SSDs
- Rack Height4U
- CPU TypeIntel Xeon
- CPU Speed2.40 GHz
- CPU SocketLGA 2011
- Number of CPU Cores16-Core Processor
- # of Processors Installed4
- Four Intel Xeon E7-8867 v4 16-core processors at 2.40GHz with 3.30GHz turbo for high compute density
- 384GB DDR4 2400MHz registered ECC memory across 48 modules, scalable to 12TB
- Dell PERC H730P 2GB controller supports RAID 0, 1, 5, 6, 10, 50, 60 with battery backup
- 24x 1.92TB SATA enterprise SSDs in hot-plug 2.5-inch bays for high-capacity storage
- iDRAC8 Enterprise remote management plus quad-port 1GbE and 10GbE SFP+ networking daughter card

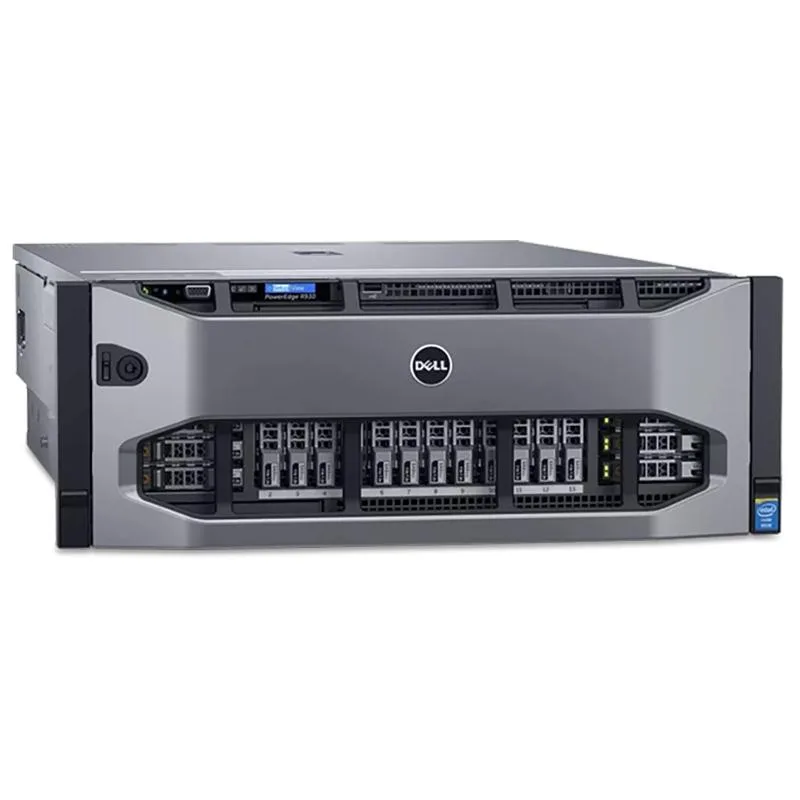

DELL PowerEdge R930 4U rack server
This new 4U rack server ships with four Intel Xeon E7-8867 v4 processors running at 2.40 GHz with 16 cores each. It includes 384 GB of DDR4 memory installed across 48 modules. The system is built for dense, memory-intensive workloads in a single chassis.
Suited for large in-memory databases
Buyers who need more than four processors or who require front-accessible NVMe bays should consider other platforms. The chassis maxes out at four CPUs and 96 DIMM slots. Workloads demanding GPU acceleration beyond the integrated Matrox G200 will not be served.
24 x 1.92 TB SATA SSDs on a PERC H730P controller
The storage subsystem delivers 24 hot-plug 2.5-inch drives behind a 12 Gb/s SAS/SATA RAID controller with 2 GB cache and battery backup. Supported RAID levels include 0, 1, 5, 6, 10, 50 and 60. This capacity and controller combination determines fit for high-throughput OLTP and analytics.
Highlights
- Four Intel Xeon E7-8867 v4 16-core processors at 2.40GHz with 3.30GHz turbo for high compute density
- 384GB DDR4 2400MHz registered ECC memory across 48 modules, scalable to 12TB
- Dell PERC H730P 2GB controller supports RAID 0, 1, 5, 6, 10, 50, 60 with battery backup
- 24x 1.92TB SATA enterprise SSDs in hot-plug 2.5-inch bays for high-capacity storage
- iDRAC8 Enterprise remote management plus quad-port 1GbE and 10GbE SFP+ networking daughter card
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge R930 |
| Rack Height | 4U |
| CPU Type | Intel Xeon |
| CPU Speed | 2.40 GHz |
| CPU Socket | LGA 2011 |
| Number of CPU Cores | 16-Core Processor |
| # of Processors Installed | 4 |
| MAX Processors | 4 |
| Chipset | Intel C602J |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 12TB |
| Number of Memory Slots | 96 |
| Storage Controller | Dell Perc H730P 2GB Controller |
| HDD Interface | SATA |
| SSD (Installed) | 24 x 1.92TB SATA SSD |
| Raid Level | RAID 0/1/5/6/10/50/60 |
| GPU Type | Matrox G200 |
| Video Memory | 8MB |
| Ethernet Controller | Dell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card |
| LAN Ports | 4 x Ports |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3) |
| Management Port | RJ 45 |
| Operating System | No |
