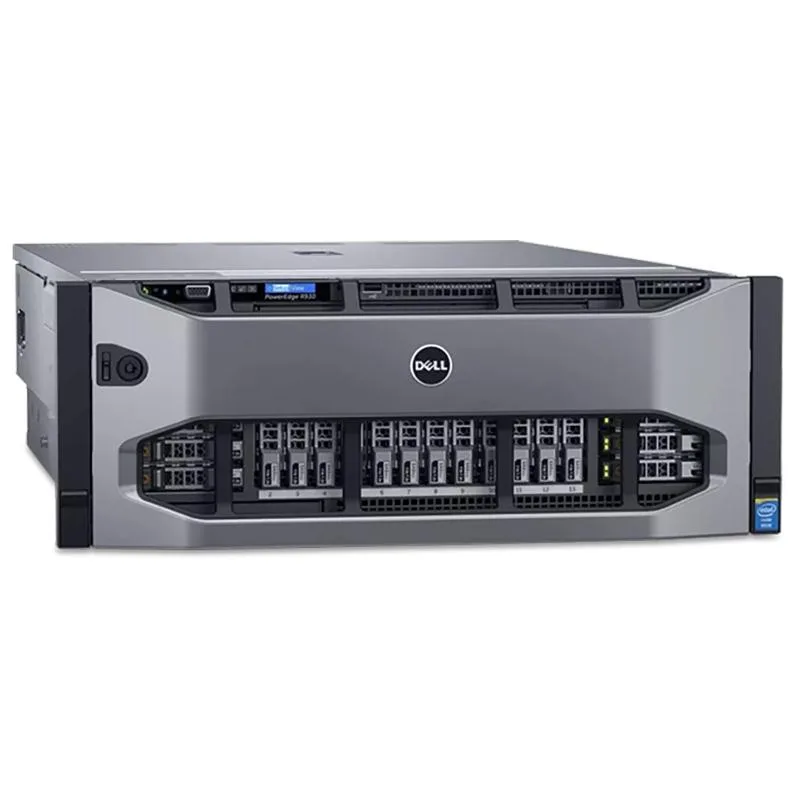

Dell PowerEdge R930 4U rack server with 24 front 2.5 inch drive bays, front bezel and sliding rails

DELL

DELL PowerEdge R930 24 Bay 2.5" Rack Server 4x Xeon E7-8890 v4 2.2GHz 1.5TB DDR4

SKU CH-MRJT-PZRAW

Four-socket 4U server with 96 cores, 1.5 TB DDR4 ECC memory, 24 hot-plug 2.5" drive bays, PERC H330 RAID, dual 10 GbE SFP+ networking, iDRAC8 Enterprise, and four 1100 W platinum power supplies

  • Rack Height4U
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores24-Core Processor
  • # of Processors Installed4
  • 4 Intel Xeon E7-8890 v4 24-core CPUs deliver 96 total cores for heavy workloads
  • 5TB DDR4 2400MHz ECC memory across 48 slots supports large datasets
  • 24 hot-plug 2.5" SAS/SATA drive bays with PERC H330 RAID 0/1/5/10/50
  • Quad-port X520/I350 network card provides 2×1GbE and 2×10GbE SFP+
  • iDRAC8 Enterprise plus 4×1100W 80+ Platinum PSUs ensure remote management and redundant power

Enterprise 4U Server with 96 Cores

The Dell PowerEdge R930 is a 4U rack server equipped with four Intel Xeon E7-8890 v4 processors running at 2.2 GHz with a 3.4 GHz turbo frequency. Each processor provides 24 cores for a total of 96 cores and the system includes 1.5 TB of DDR4 2400 MHz registered ECC memory across 48 modules. It is aimed at organisations running memory-intensive databases, virtualisation clusters or analytics workloads that require high core counts and large memory capacity in a single chassis.

Storage and Network Limits

The server uses a Dell PERC H330 controller supporting RAID 0, 1, 5, 10 and 50 across 24 hot-plug 2.5-inch SAS or SATA drive bays. The chassis can also accommodate up to eight front-accessible NVMe PCIe SSDs for workloads demanding ultra-fast data access. Network connectivity is provided by an Intel X520/I350 daughter card delivering two 1 GbE ports and two 10 Gb SFP+ ports. The Intel C602J chipset and LGA 2011 sockets define the platform ceiling of four processors and a maximum memory capacity of 12 TB across 96 DIMM slots.

Installation Notes

The unit ships with ready rails and a front bezel for standard rack mounting and includes four 1100 W 80+ Platinum power supplies for redundancy. Remote management is handled through iDRAC 8 Enterprise allowing agent-free provisioning and lifecycle automation via Dell OpenManage. The Matrox G200 graphics controller with 8 MB video memory provides basic console output only. Buyers needing GPU acceleration or additional PCIe expansion beyond the integrated networking should verify slot availability before purchase.

Highlights

  • 4 Intel Xeon E7-8890 v4 24-core CPUs deliver 96 total cores for heavy workloads
  • 5TB DDR4 2400MHz ECC memory across 48 slots supports large datasets
  • 24 hot-plug 2.5" SAS/SATA drive bays with PERC H330 RAID 0/1/5/10/50
  • Quad-port X520/I350 network card provides 2×1GbE and 2×10GbE SFP+
  • iDRAC8 Enterprise plus 4×1100W 80+ Platinum PSUs ensure remote management and redundant power

Specifications

BrandDELL
SeriesPowerEdge R930
Rack Height4U
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011
Number of CPU Cores24-Core Processor
# of Processors Installed4
MAX Processors4
ChipsetIntel C602J
Installed Memory Size1.5TB
Memory TypeDDR4
Max Memory Capacity12TB
Number of Memory Slots96
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 1.5 TB DDR4 configuration or plan for the 12 TB maximum?

The server ships with 1.5 TB installed across 48 slots using 32 GB modules; the board supports 96 slots for up to 12 TB if your workload demands it.

What does the 2.2 GHz base clock with 3.4 GHz turbo mean for sustained compute?

Four Xeon E7-8890 v4 CPUs each run 24 cores at 2.2 GHz base and can boost to 3.4 GHz under thermal headroom for burst performance.

How does the PERC H330 controller limit drive throughput on the 24-bay backplane?

The H330 provides 12 Gb/s SAS/SATA connectivity to all 24 bays and supports RAID 0, 1, 5, 10 and 50 for redundancy or speed.
