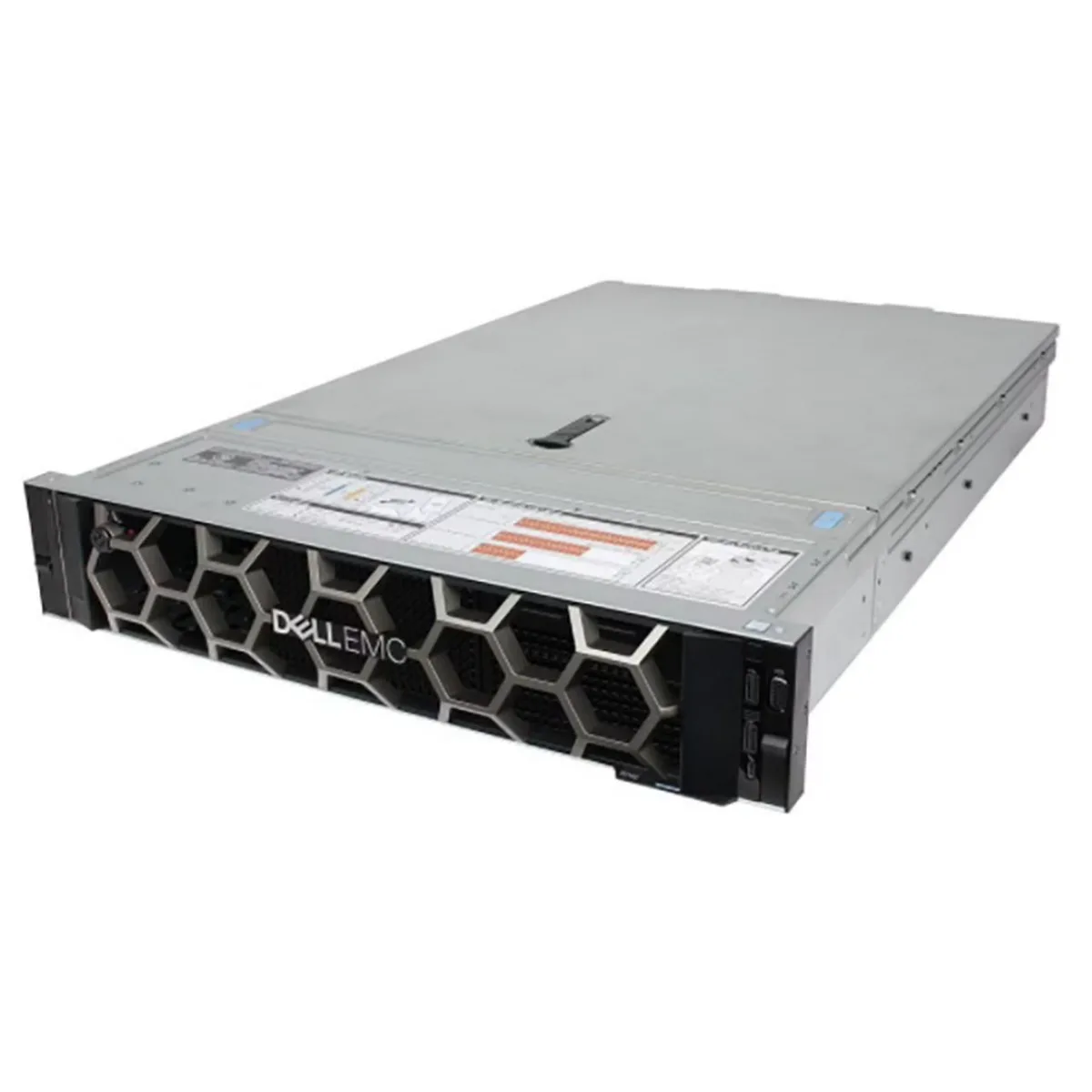

Silver 2U rack server front with eight drive bays and bezel

DELL

DELL PowerEdge R740 2U rack server 2x Xeon Silver 4110 2.1GHz 768GB DDR4 8x 600GB SAS

SKU CH-C29X-4VC54

Two-socket 2U rack server with dual Xeon Silver 4110 processors, 768GB DDR4 ECC memory, eight 600GB 10K SAS drives, PERC H730P RAID controller, quad-port 1GbE/10GbE networking, iDRAC9 Enterprise.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Dual Xeon Silver 4110 CPUs deliver 8 cores each for demanding applications
  • 768GB DDR4 ECC memory supports large datasets and virtualisation
  • PERC H730P controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 600GB 10K SAS drives provide fast storage capacity
  • iDRAC9 Enterprise and redundant 750W PSUs ensure remote management and uptime

DELL PowerEdge R740 2U rack server

This 2U rack server ships with dual Intel Xeon Silver 4110 processors at 2.1GHz and 768GB of DDR4 ECC memory across 24 slots. A PERC H730P controller manages eight 600GB 10K SAS drives in hot-swap bays. Quad-port networking adds two 1GbE and two 10Gb SFP+ links. iDRAC 9 Enterprise enables remote management. Redundant 750W platinum power supplies and rails are included.

Check CPU socket and memory compatibility

The system uses LGA 3647 sockets and supports up to two processors. Installed memory runs at 2400MHz; maximum capacity reaches 3TB across 24 DIMM slots. Verify that your replacement or additional modules are registered DDR4 ECC. Storage bays accept 2.5-inch SAS or SATA drives only. Network daughter card occupies a dedicated slot; confirm PCIe riser layout before adding expansion cards.

Dual 750W platinum supplies share load

Redundant hot-swap power supplies operate at platinum efficiency under normal load. Fan speed ramps with CPU and drive temperatures; acoustic output is typical for a 2U rack chassis in a cooled data centre aisle. Power draw scales with processor utilisation and drive activity. Ensure rack PDU circuits can deliver sufficient current for both supplies.

Highlights

  • Dual Xeon Silver 4110 CPUs deliver 8 cores each for demanding applications
  • 768GB DDR4 ECC memory supports large datasets and virtualisation
  • PERC H730P controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 600GB 10K SAS drives provide fast storage capacity
  • iDRAC9 Enterprise and redundant 750W PSUs ensure remote management and uptime

Specifications

BrandDELL
SeriesPowerEdge R740
ModelR740
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C620
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity3TB
Number of Memory Slots24
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion SlotsRiser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server ship with all drives, rails and bezel, or must I order any of them separately?

The unit includes eight 600 GB 10K SAS drives, a front bezel and ready rails, so nothing extra is required to populate the 2.5" bays.

Which memory configuration does the 768 GB total use across the 24 slots?

It is populated with twenty-four 32 GB DDR4 2400 MHz registered ECC modules, filling every slot.

What RAID levels can the PERC H730P controller handle with the eight installed drives?

The controller supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode for the eight 600 GB SAS drives.
